Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide
<Offset-X, Y, R> column
Sets the placement offset of X, Y and R.
<Clear Data for this Head> button
Deletes placement offset data of the selected head.
<Clear all Data for this Camera> button
Able to delete the placement offset data of all the heads corresponding to the selected
camera.
<Import> button
It is used to import the saved placement offset file.
<Export> button
Current mounting offset data is exported to the mounting offset file.
<Update> button
Transmits the change data to the equipment and closes the dialog box.
<Cancel> button
Ignores the change data and closes the dialog box.
14-11
Machine Calibration
14.2. Camera [F5]
Sets various data on the camera.

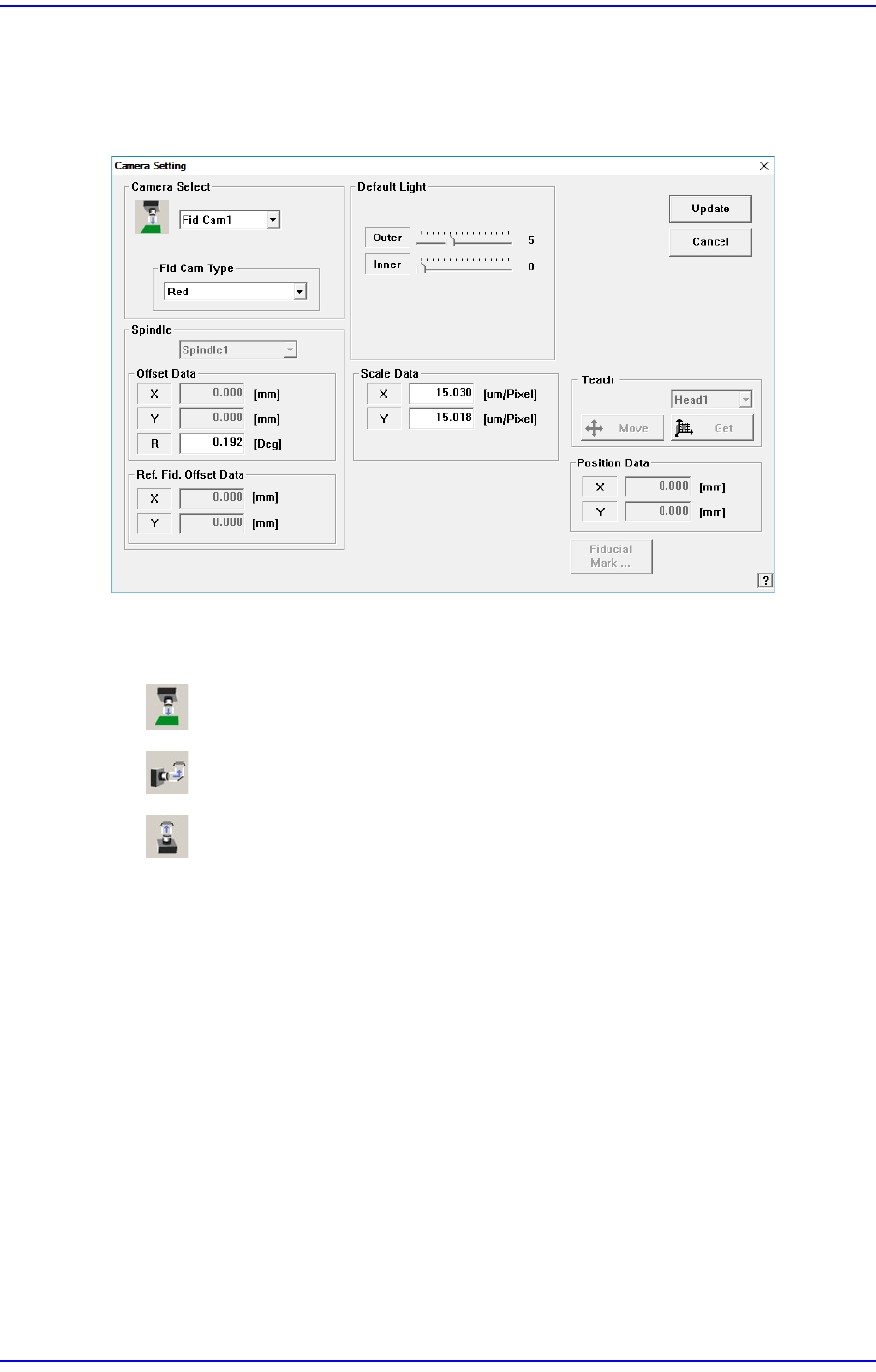

Figure14.6 “Camera Setting” dialog box
<Camera Select> combo box
Select the camera type to set. Available camera types are as follows.
Fiducial Camera: Camera used for position teaching or fiducial mark check.
Fly Camera: Camera used for component check, it is attached to each head.
Fix Camera: Refers to the camera used to recognize large parts and connectors.
Above screen is the case where the camera type is set to “Fiducial Camera”.
<Type> combo box
Select the Fly camera type to set. Available camera types are as follows.
10 / 15 / 16 / 20 / 25 / M16 / M20 / M25 / 2M23 mm
14-12
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide
Warning Operation error caused by unauthorized or untrained
personnel or insufficient checking before calibration could
severely damage the equipment or the set up data, or it
could cause personal injury of the operator or the worker
near the equipment. Before carrying out calibration, check
the item to be calibrated and check if there is any worker
near the equipment. And calibration must be carried out by
an authorized and trained user only.
<Spindle> group
<Offset Data> group
Sets the camera offset selected from the <Camera Select> combo box. It can be set
up directly and performing calibration for the camera will input the result value
automatically.
<X> edit box
Set the offset value of the camera in X direction between the center of the each
head and center of the camera.
<Y> edit box
Setup the Y-direction offset value of each head center and the camera center.
<R> edit box
Setup the R-direction offset value of each head center and the camera center.
<Ref. Fid. Offset Data> group
Each head has its own reference fiducial mark, which is used to correct the offset.
<Default Light> group
Set the default light value. Please refer to “7.1.1 Common Align Data” for more
information.
<Scale Data> group
Sets the scale of the camera selected from the <Camera Select> combo box. It can be
set up directly and performing calibration for the camera will input the result value
automatically.
<X> edit box
Set the resolution of the camera in X direction. The unit used is the number of
pixels per mm.
<Y> edit box
Set the resolution of the camera in Y direction. The unit is the number of pixels
per mm.
