Machine Calibration
If the calibration procedure is completed properly, the result as shown in the following
figure is displayed.
4. Click the <FIND LIMIT ALL AXIS> button.
(Proceed in the following order: Head Z → Gantry Limit → Conveyor)
14-20
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide
5. After confirming that there is no object inside the machine or on the conveyor, click
the <OK> button.
6. Click the <Yes> button.
7. Limit value is measured for each axis. Click the <Yes> button.
14-21
Machine Calibration

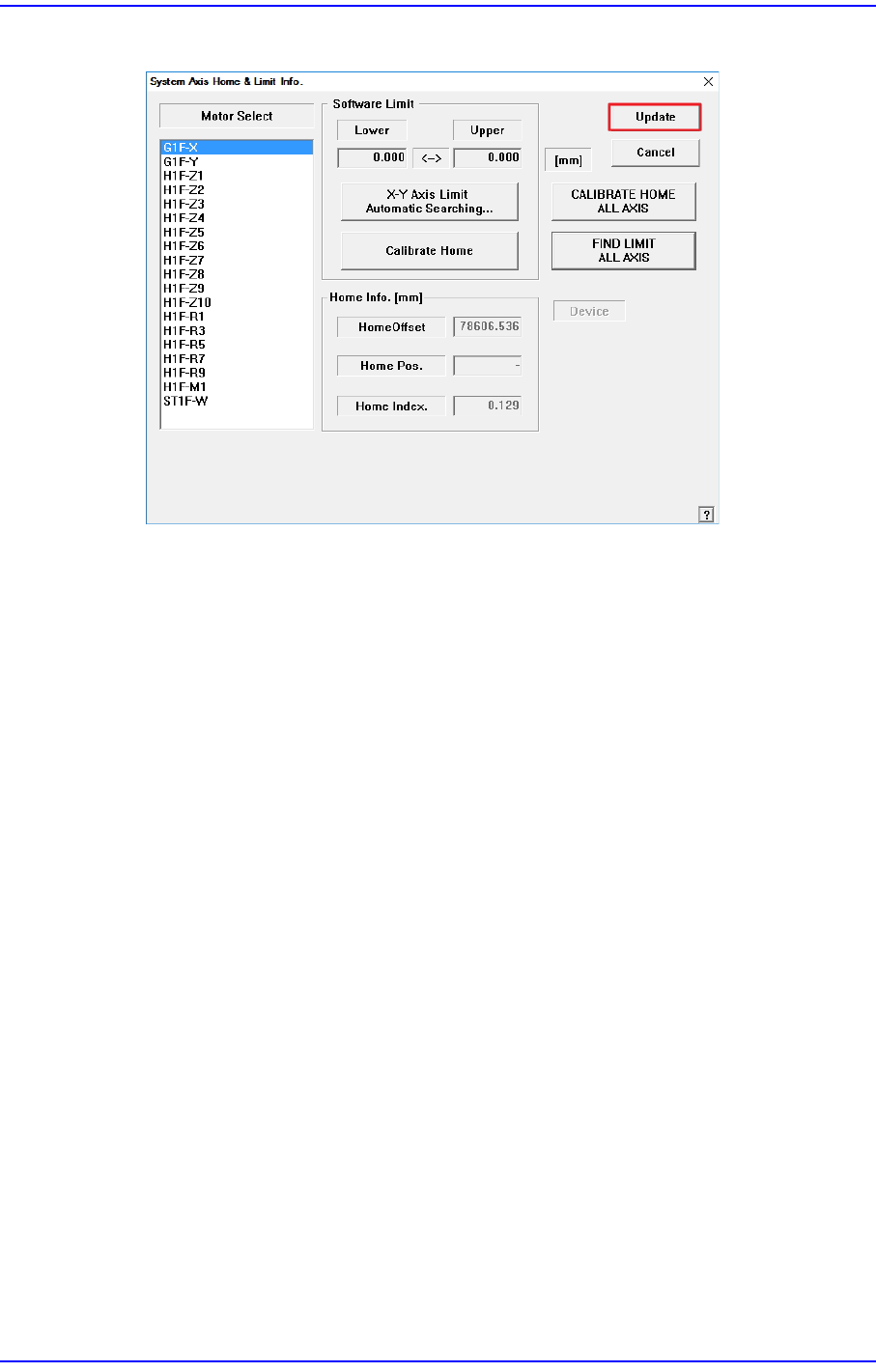

8. Click the <Update> button.
