8. Click the <Update> button.

14-22

Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide

14.3.2. Skew compensation

Skew means compensating the skew occurred horizontally in the X-axis frame against the

Y1-axis and Y2-axis after movement of equipment. This must be done upon initial

installation and after movement of the equipment to a new location. Method of skew

compensation for Y-axis is as follows;

Caution Skew means compensating the skew occurred horizontally

in the X-axis frame against the Y1-axis and Y2-axis after

movement of equipment. This must be done upon initial

installation and after movement of the equipment to a new

location. Method of skew compensation for Y-axis is as

follows;

14.3.2.1. Procedure

Skew Compensation method is as follows.

1. First, move the X frame manually to the center of equipment.

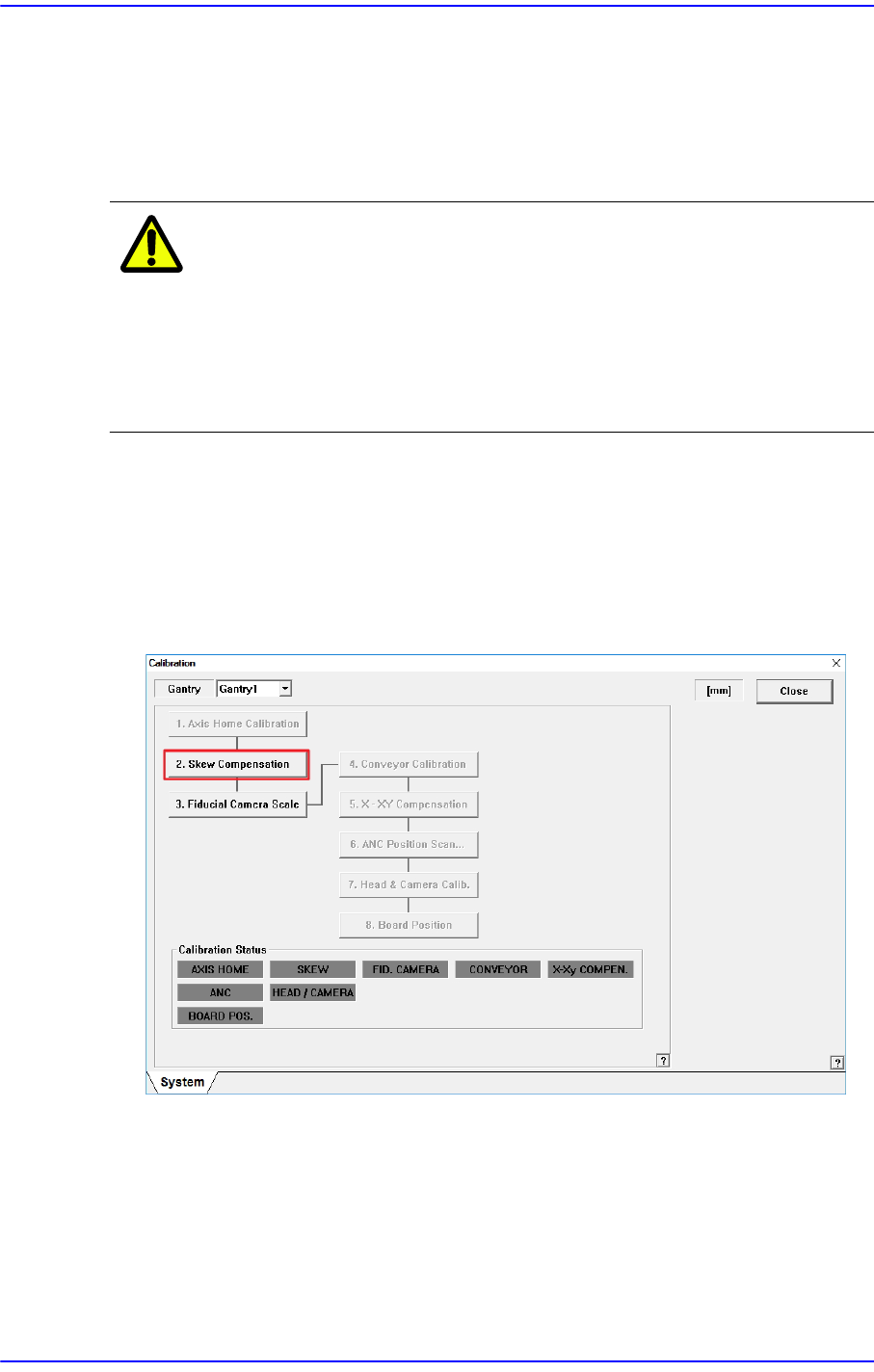

2. Click the <Skew Compensation> button.

14-23

Machine Calibration

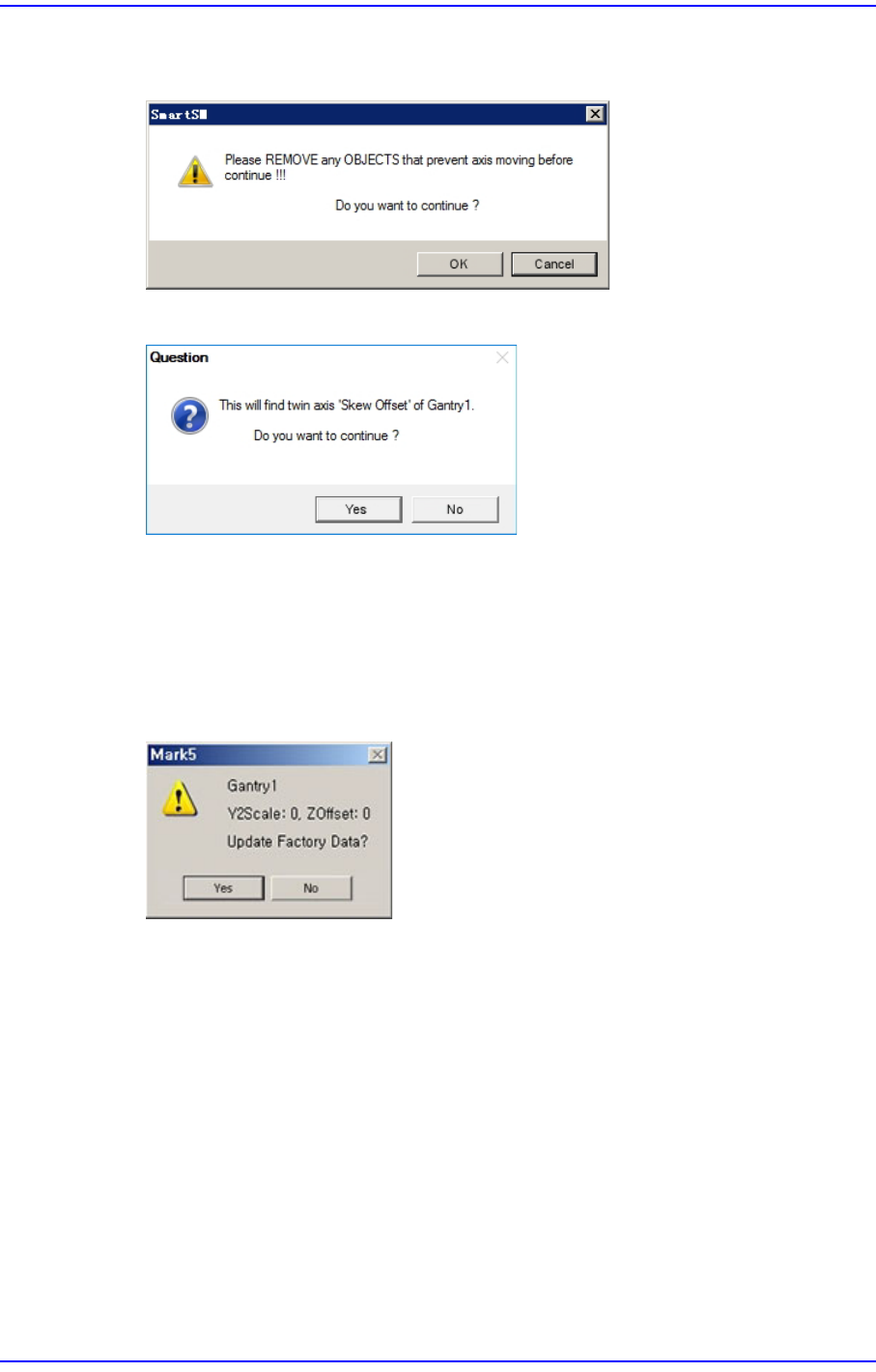

3. After confirming that there is no object inside the machine or on the conveyor, click

the <OK> button.

4. Click the <Yes> button.

Click on the <Skew compensation> button. Automatic homing on Z-axis is performed,

Y1-axis motor rotates and moves X frame until detecting the Y home sensor. Once the

home sensor has been detected, move to the Y-axis movement distance (Y Stroke) in

the opposite direction, and move to the opposite direction again until the Y Home

sensor is detected.

5. Then, ‘Skew’ information is shown as follows, and asks whether to apply the value.

6. Click on the <Yes (Y)> button and <Update> button, and then homing of the

equipment is newly done in accordance with the applied skew information.
