14-64 Next Generation, Multi-Functional Plac er DECAN S1 Administrator’s Guide 6. Click the <Get Angle> button in the <Of f set Check> group to input the R offset. 7. Perform the calibration form Head 2 to He…
14-63
Machine Calibration

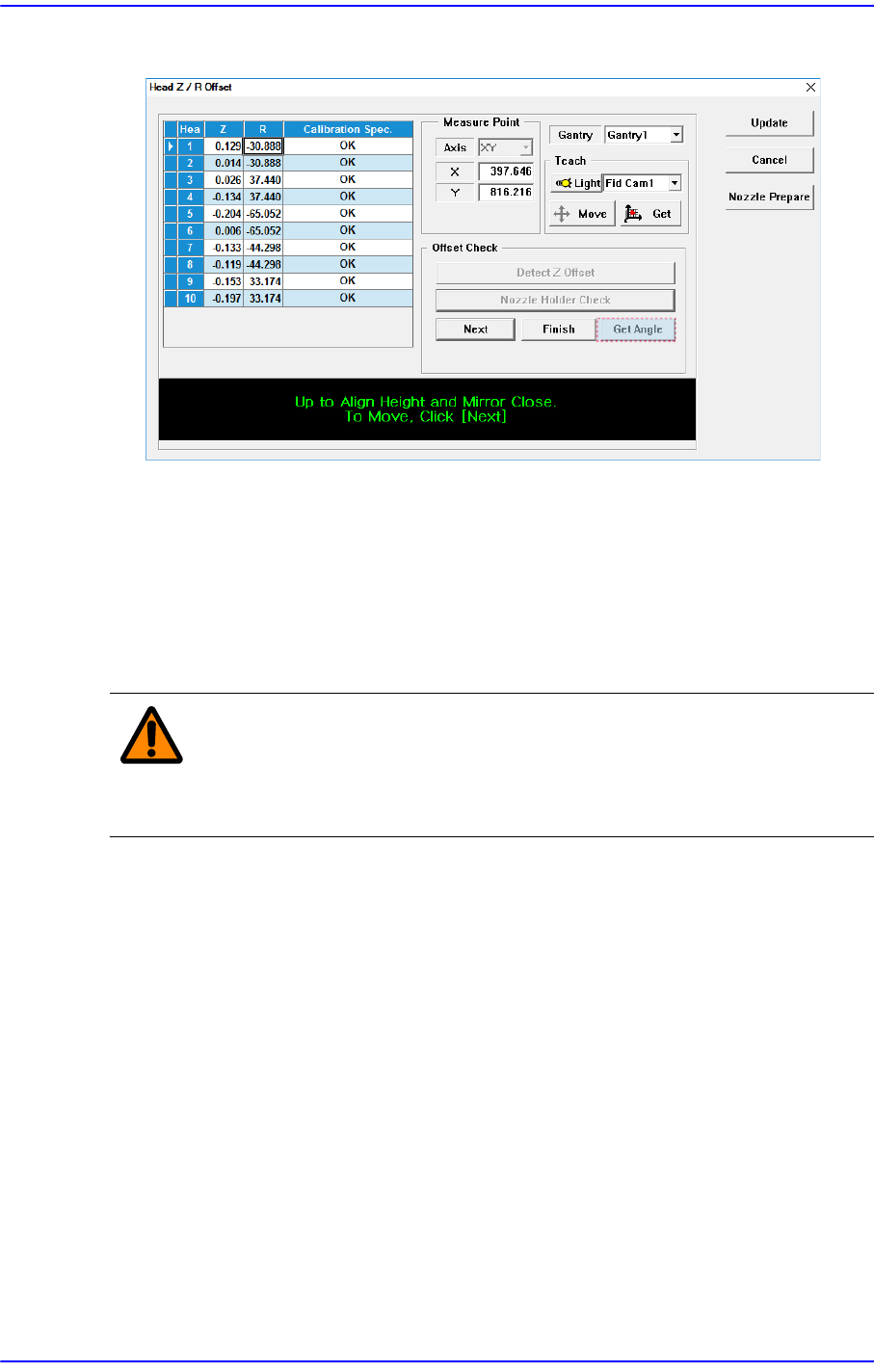

4. Then the message “Up to Align Height and Mirror Close. To Move, Click [Next].”
appears. Then move the spindle to the part recognition height so that the nozzle holder
of the head can be seen from the fly camera and click the <Next> button to close the
mirror.

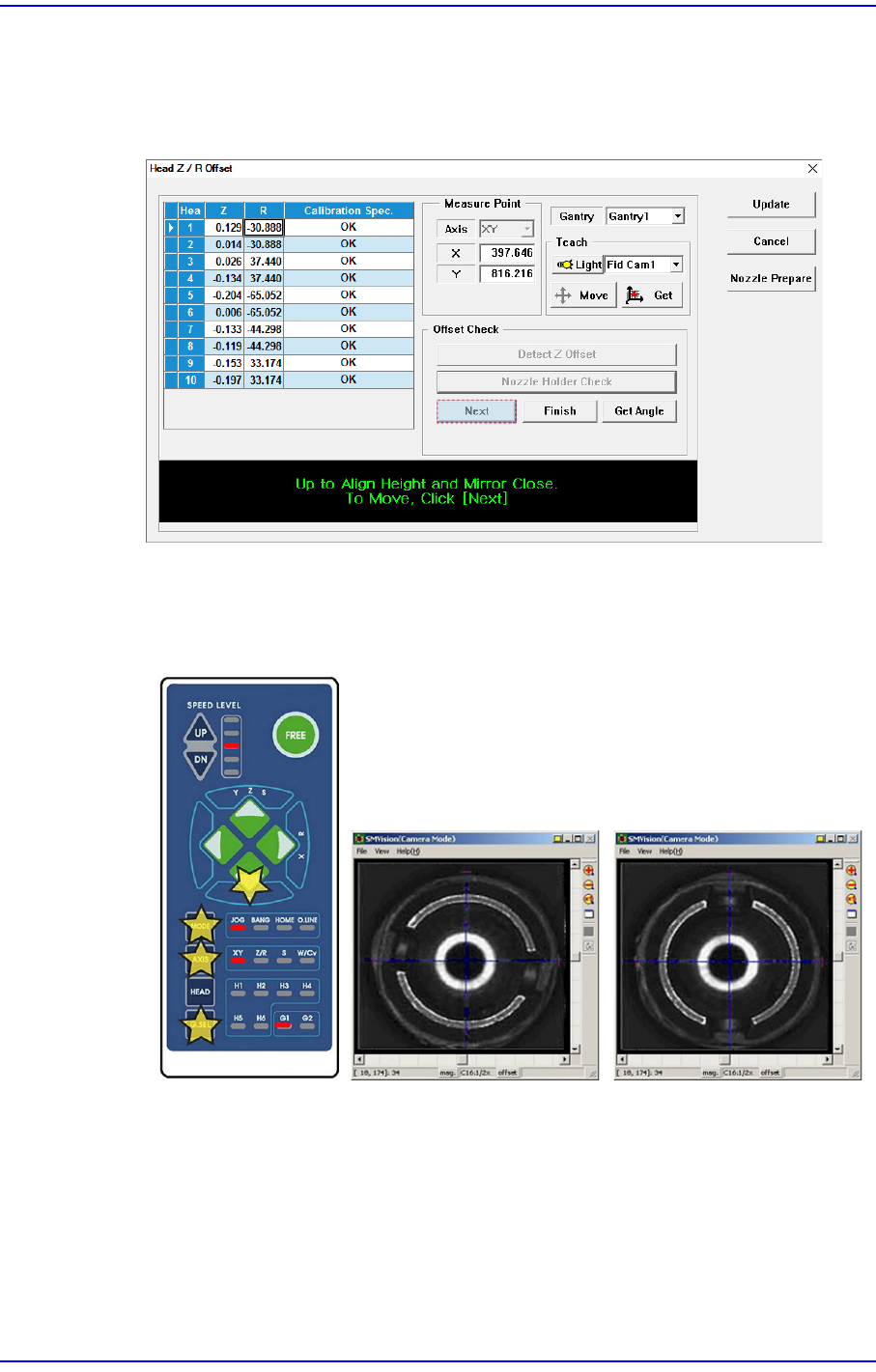

5. Rotate the spindle in the R-direction by using the teaching box so that the shape of the
nozzle holder becomes ‘( )’. At this time, the nozzle holders of the heads with
interlocked mechanism must be assembled in the same direction.
That is, the mechanisms of the #1~#2 heads and #3~#4 heads, #5~#6 heads, #7~#8
heads, #9~#10 heads must be assembled first in the same direction by using the jig for
a nozzle holder.
14-64
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide
6. Click the <Get Angle> button in the <Offset Check> group to input the R offset.
7. Perform the calibration form Head 2 to Head 10 in the same manner.
8. Click the <Update> button to apply the calibration result to the machine.
14.3.8.5. Light [F8]
Calibrate the brightness of the illumination for the fly camera and fix camera. For more
information please refer to “15.4. Light [F8]”.
Caution Since the nozzle for the SM32x model is not compatible to
the one for the light mapping used for the SM32x model, do
not use it for this machine.
14-65
Machine Calibration
14.3.8.6. Head Offset Calibration
Measure the distance (XY Offset) between the center of the gantry fiducial camera and the
center of each head.
To perform XY Offset Calibration of each head, first confirm that the CNT20 nozzle is
installed in ANC Hole No.1 before operation.
The following is the procedure to calibrate the XY offset of the head;
1. If the CNT20 nozzle is not installed, click the <Nozzle Prepare> button to manually
insert the CNT20 nozzle into ANC Hole No.1.
2. If the <12. Head Offset> is clicked after selecting the <Automatic Next> check box,
calibration is performed for the selected gantry automatically.
