14-65
Machine Calibration
14.3.8.6. Head Offset Calibration
Measure the distance (XY Offset) between the center of the gantry fiducial camera and the
center of each head.
To perform XY Offset Calibration of each head, first confirm that the CNT20 nozzle is
installed in ANC Hole No.1 before operation.
The following is the procedure to calibrate the XY offset of the head;

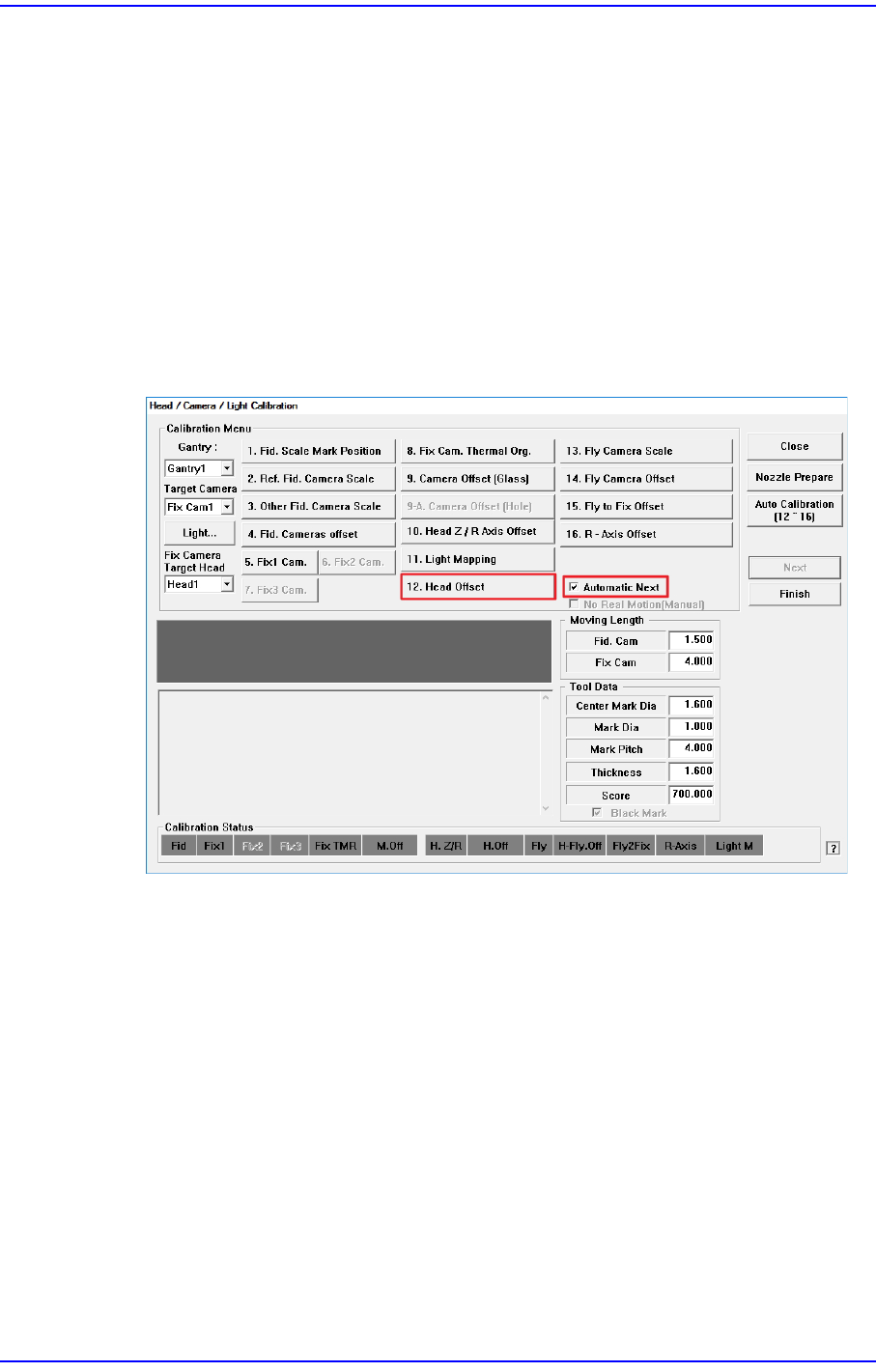

1. If the CNT20 nozzle is not installed, click the <Nozzle Prepare> button to manually
insert the CNT20 nozzle into ANC Hole No.1.
2. If the <12. Head Offset> is clicked after selecting the <Automatic Next> check box,
calibration is performed for the selected gantry automatically.
14-66
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide

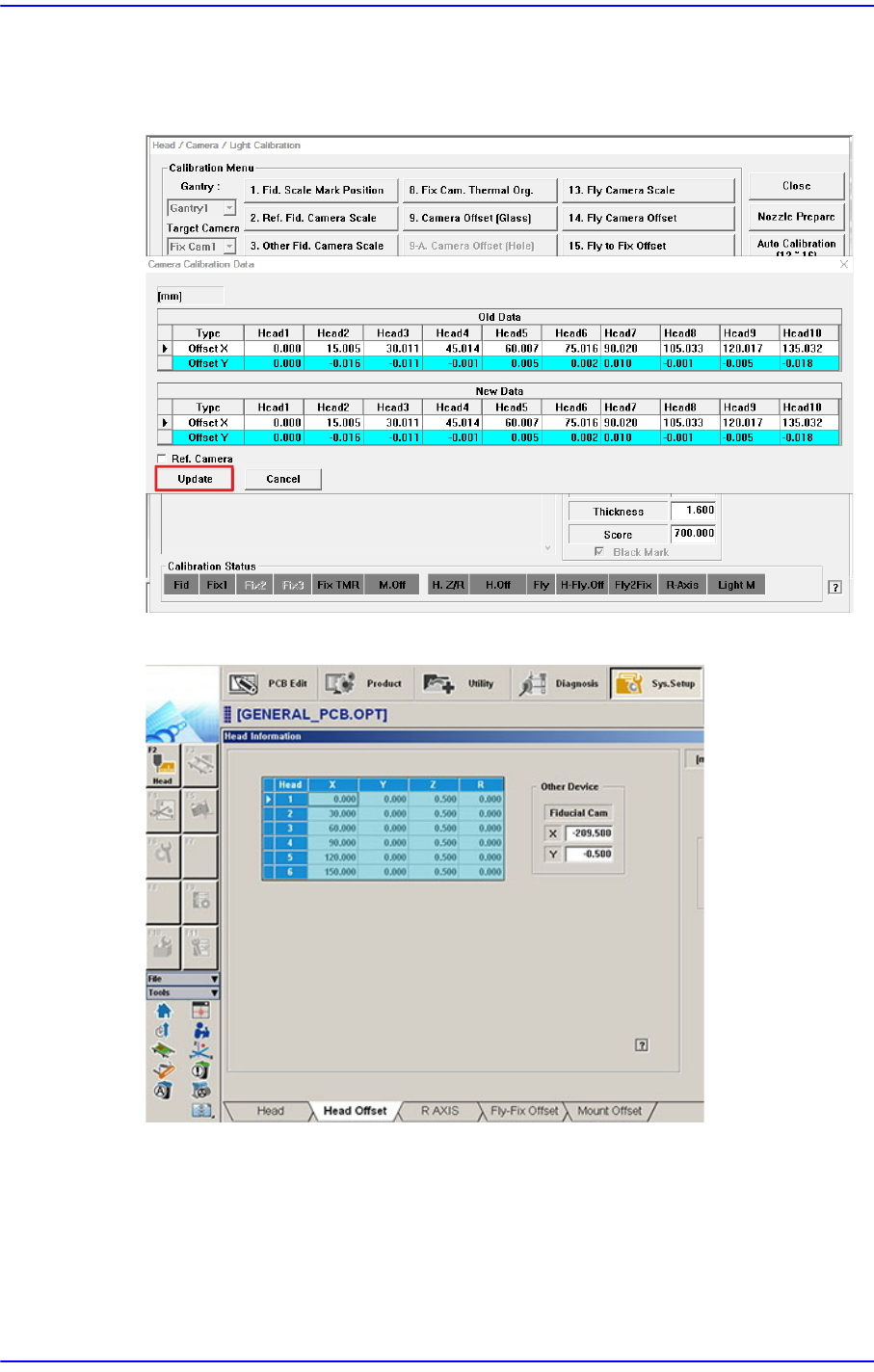

3. If the calibration procedure is completed for all heads normally, the result is displayed
as shown in the following figure. Click the <Update> button to apply the calibration
value.
The measurement result can be confirmed in the Head Offset dialog box.
14-67
Machine Calibration
Memo The range of the reference value for the ‘Head XY Offset
Calibration’ are as follows:
Offset X (mm)
Head 1: -0.06 ~ 0.06
Head 2: 14.94 ~ 15.06
Head 3: 29.04 ~ 30.06
Head 4: 44.94 ~ 45.06
Head 5: 59.94 ~ 60.06
Head 6: 74.94 ~ 75.06
Head 7: 89.94 ~ 90.06
Head 8: 104.94 ~ 150.06
Head 9: 119.94 ~ 120.06
Head 10: 134.94 ~ 135.06
Offset Y (mm)
Head1 ~ 10: -0.05 ~ 0.05
