15-12 Next Generation, Multi-Functional Plac er DECAN S1 Administrator’s Guide 4. Select Dump Box 1R in the <Dump Box> combo box an d move it to the No.3 position in the following figure. Then click th e <Get>…
15-11
System Setup
When the air shower option is applied, set the system dump box in the following manner:

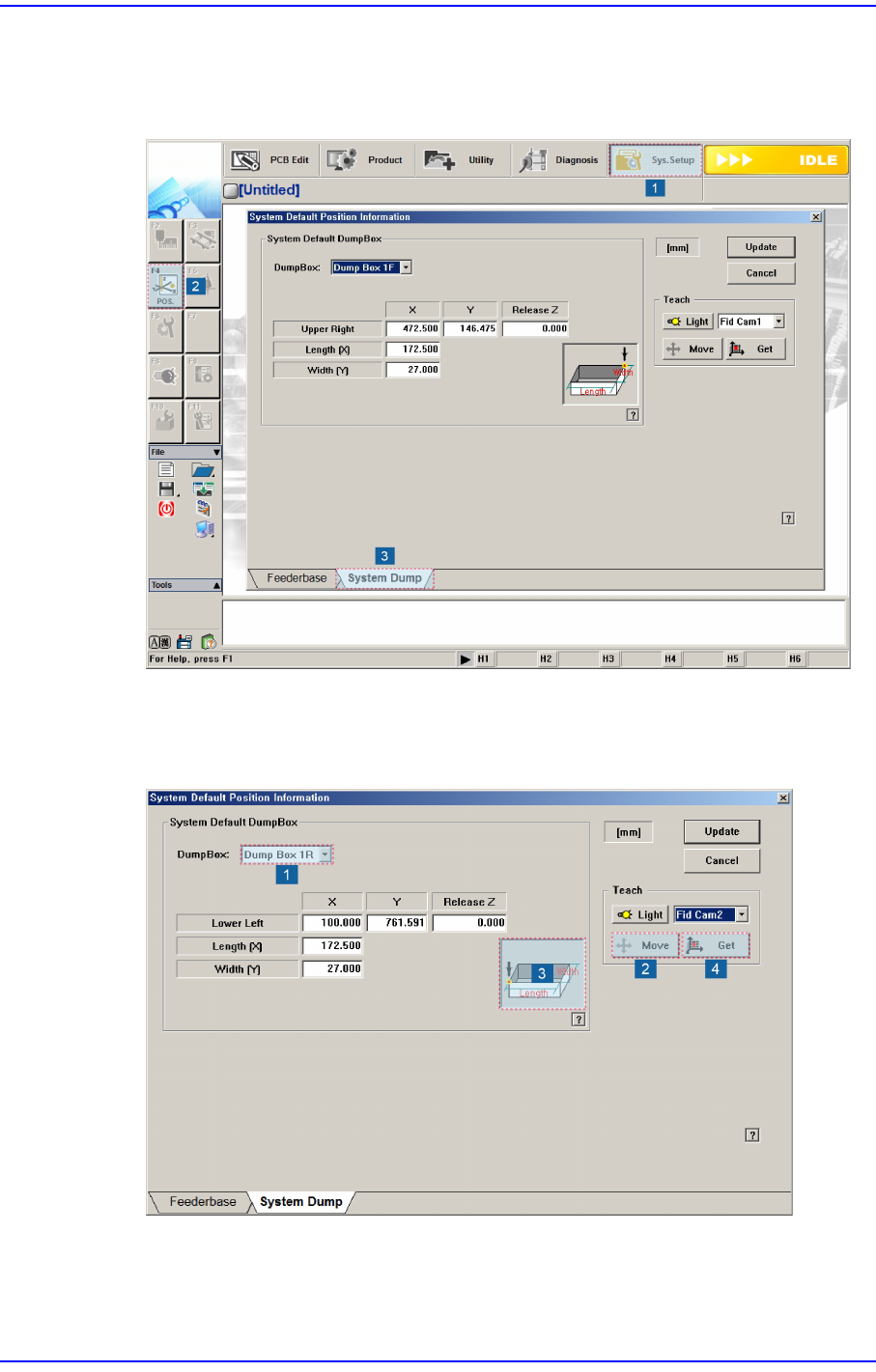

1. Execute the System Dump tab dialog box according to the order as shown in the
following figure.
2. Install the dump box at a dump box position of the front conveyor.
3. Move the Fid Cam1 to the No.3 position in the following figure using the jog box and
click the <Get> button to teach the coordinate.
15-12
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide
4. Select Dump Box 1Rin the <Dump Box> combo box and move it to the No.3 position
in the following figure. Then click the <Get> button to teach the coordinate.
5. Also, teach the coordinate of Dump Box 2F, 2R in the same manner.
When the air shower option is applied, set the User Dump Box in the following manner:
1. Execute the Dump Box tab dialog box according to the order as shown in the
following figure and check the Nos. 1 and 2<Use> check boxes in the <User Defined
DumpBox> group.
15-13
System Setup
2. After selecting No. 1 in the following figure, click the <Move> button to move the Fid
Cam1 to the position of the Front Air Shower. Then match the jig fiducial mark with
the camera center and click the <Get> button. Finally, input -10 in the <ReleaseZ>
column.
3. For the No. 2 row checked in the following figure, teach the air shower position in the
same manner as the above No.2 step.
