1-9 Operation Mode and Password Change 1.2. Changing Password Except for the plain users, each user mode has a password. The password is needed to set each user mode. The password must be set within 8 characters. Caution…
1-8
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide
(3) Click the <OK> button.
1-9
Operation Mode and Password Change
1.2. Changing Password
Except for the plain users, each user mode has a password. The password is needed to set
each user mode. The password must be set within 8 characters.
Caution Do not share the programmer mode and manager mode
with the users other than the corresponding users. Damage
may be caused by the incorrect operation of the MMI by the
unauthorized user in the programmer mode or manager
mode.
Select the ‘Operation Mode Change’ button in the menu-toolbar in the System
Manager Mode.

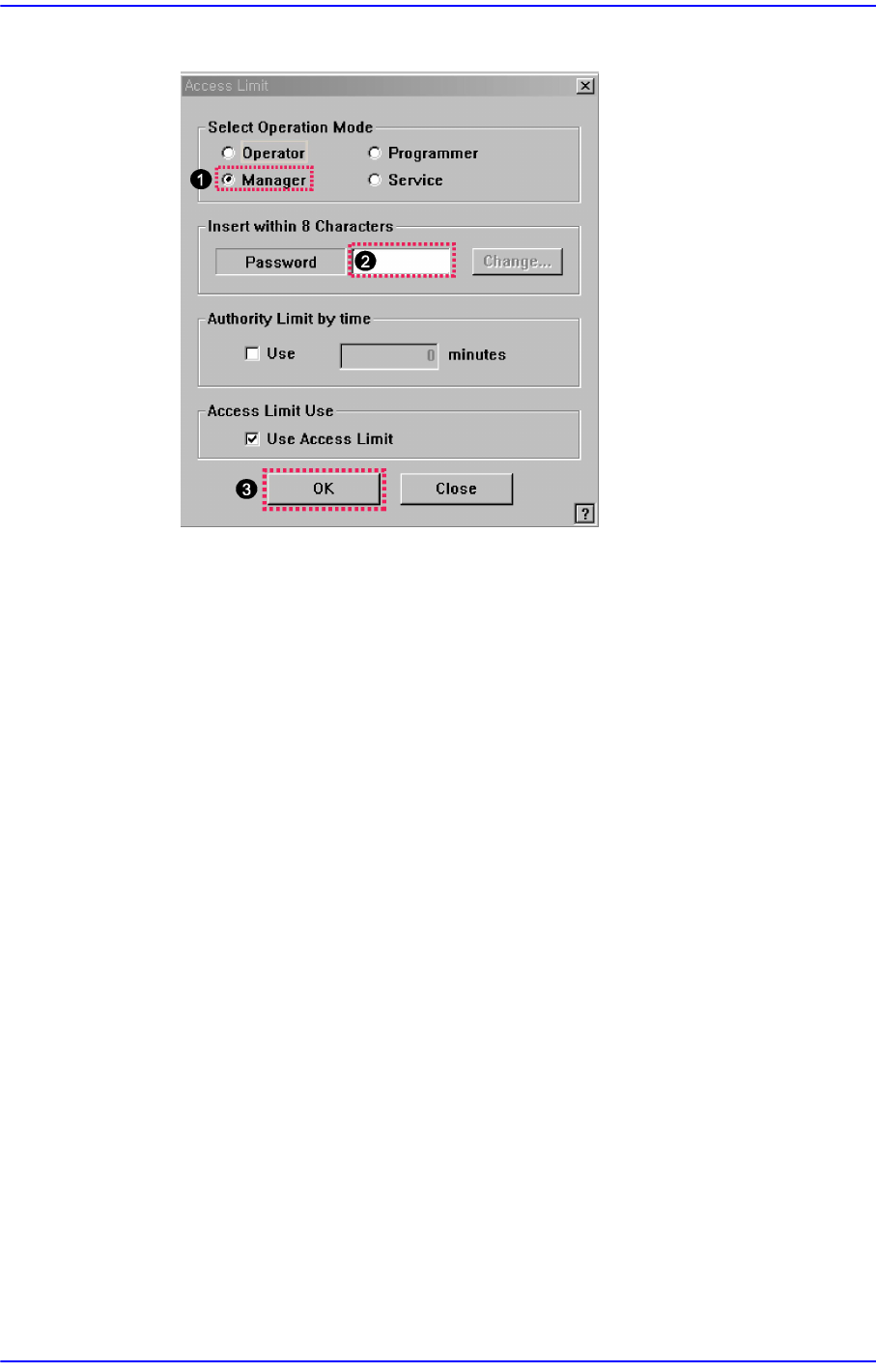

Once the ‘Operation Mode Change’ has been selected, the following dialog box
appears.
1-10
Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide

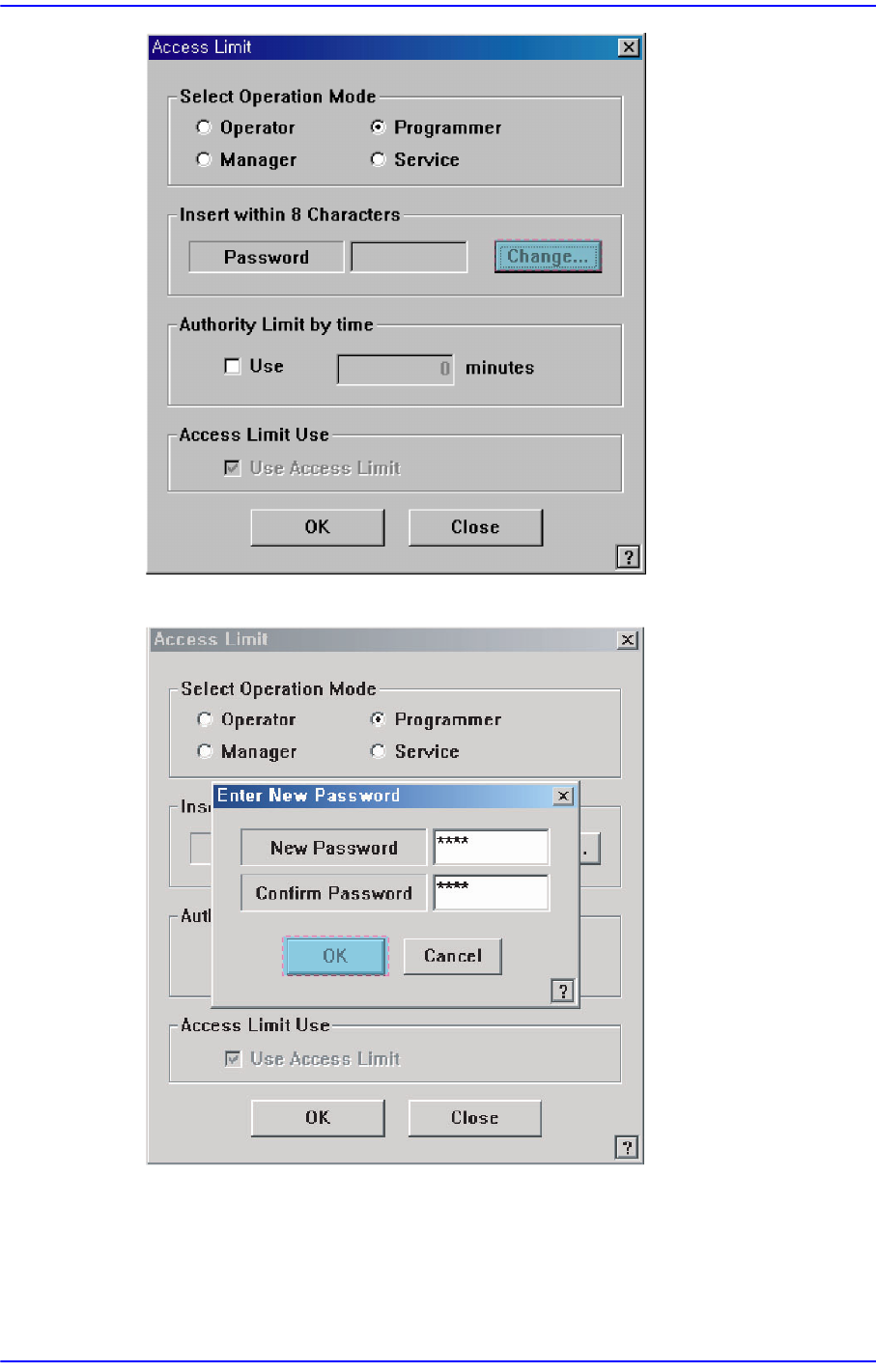

Click the <Change> button. And then the following dialog box appears.
Enter the password in the <New Password> edit box.
Re-enter the password in the <Confirm Password> edit box in order to confirm the set
password.
Then click the <OK> button to apply the change.
