15-32 Next Generation, Multi-Functional Plac er DECAN S1 Administrator’s Guide 8. Once the light mapping of Fly1~Fly5 is completed, the following dialog box is displayed. clicking the <OK> button will display the d…

15-31

System Setup

6. Click the <OK> button in the following order to remove all nozzles installed on the

head. Then insert the nozzle for the fly camera test into the No. 1 hole of the ANC.

Caution If the acrylic door is open, it affects the lighting during light

mapping. Therefore, close the acrylic door before

performing light mapping.

7. Once the <Prepare Test / Mapping> is completed, click the <Start> button in the

<<Mapping>> group to perform light mapping.

15-32

Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide

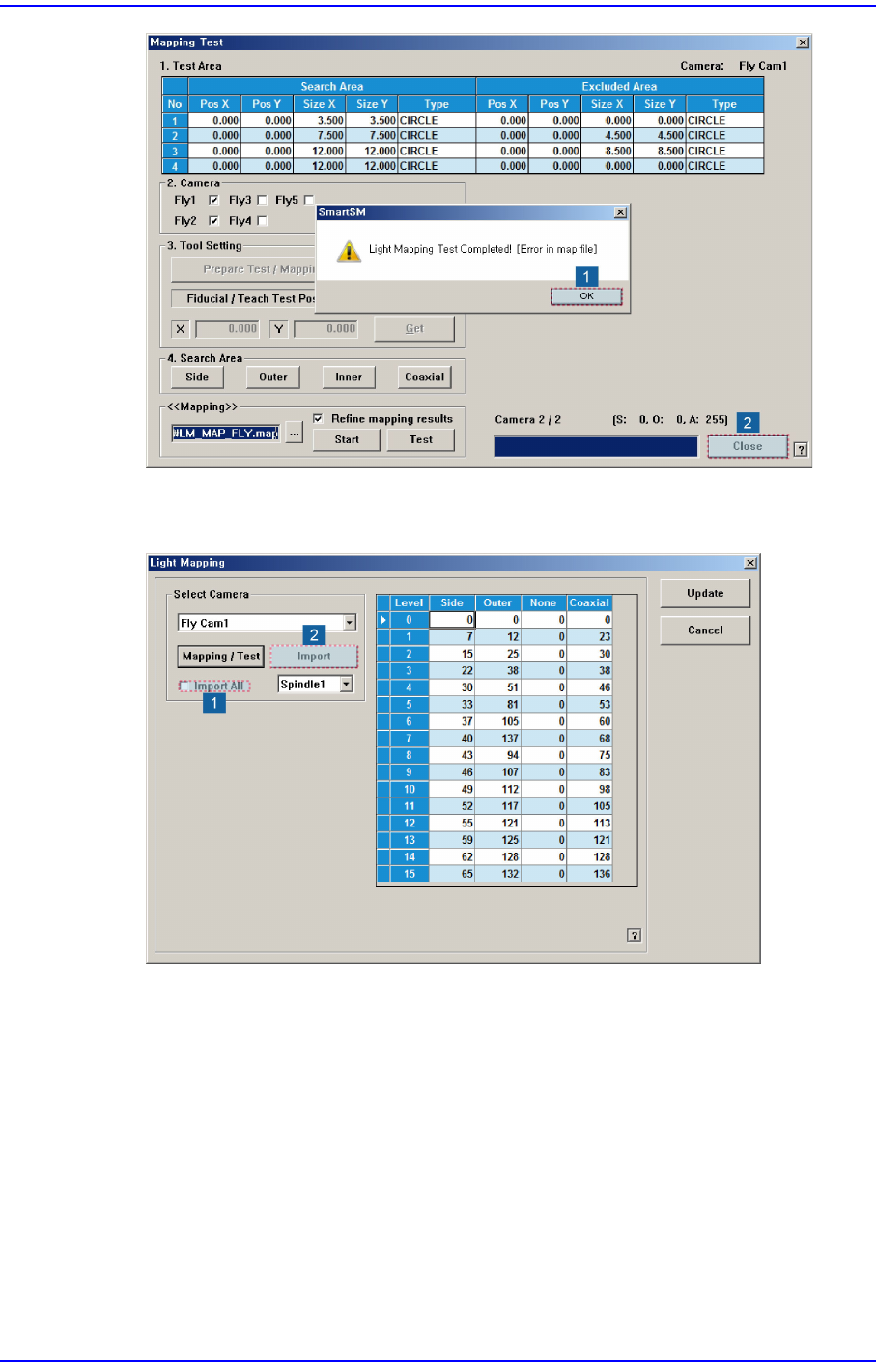

8. Once the light mapping of Fly1~Fly5 is completed, the following dialog box is

displayed. clicking the <OK> button will display the dialog box for testing.

9. Click the <(Y)> button to perform the test automatically.

10. If the dialog box saying that the light mapping test has been completed is displayed,

click the <OK> button. Then click the <Close> button to close the mapping test dialog

box.

15-33

System Setup

11. Check the <Import All> check box in the <Select Camera> group and click the

<Import> button.
