15-73

System Setup

15.6.2. Stick Feeder

Next screen is the case where the “Stick” is selected in the Device list. Set the data on the

stick feeder.

Figure15.25 “Standard Device –Stick” dialog box

 List box

Select the stick feeder type to set.

 <Default Feed Time> edit box

Set the feed time.

 <Width –Left> group

<Right> edit box

Set the left width of the stick feeder.

<Right> edit box

Set the right width of the stick feeder.

 <Default Step> edit box

Set the basic number of sticks of each stick feeder according to the stick feeder type.

15-74

Next Generation, Multi-Functional Placer DECAN S1 Administrator’s Guide

15.6.3. Tray Feeder

Next screen is the case where the “Tray” is selected in the Device list. Set the data on the

tray feeder

Figure15.26 “Standard Device –Tray” dialog box

 List box

Select the tray feeder type to set.

 <Default Step> edit box

Set the maximum number of pallets that can be placed on the single tray.

: Single Tray(5), FW-20NS(20), STF-100N(20), STF-100D(24), STF-100S(20) , STF-

100E(20)

 <Width> edit box

Set the width of the tray feeder.

15-75

System Setup

15.6.4. Nozzle

Next screen is the case where the “Nozzle” is selected in the Device list. Set the data on

Nozzle.

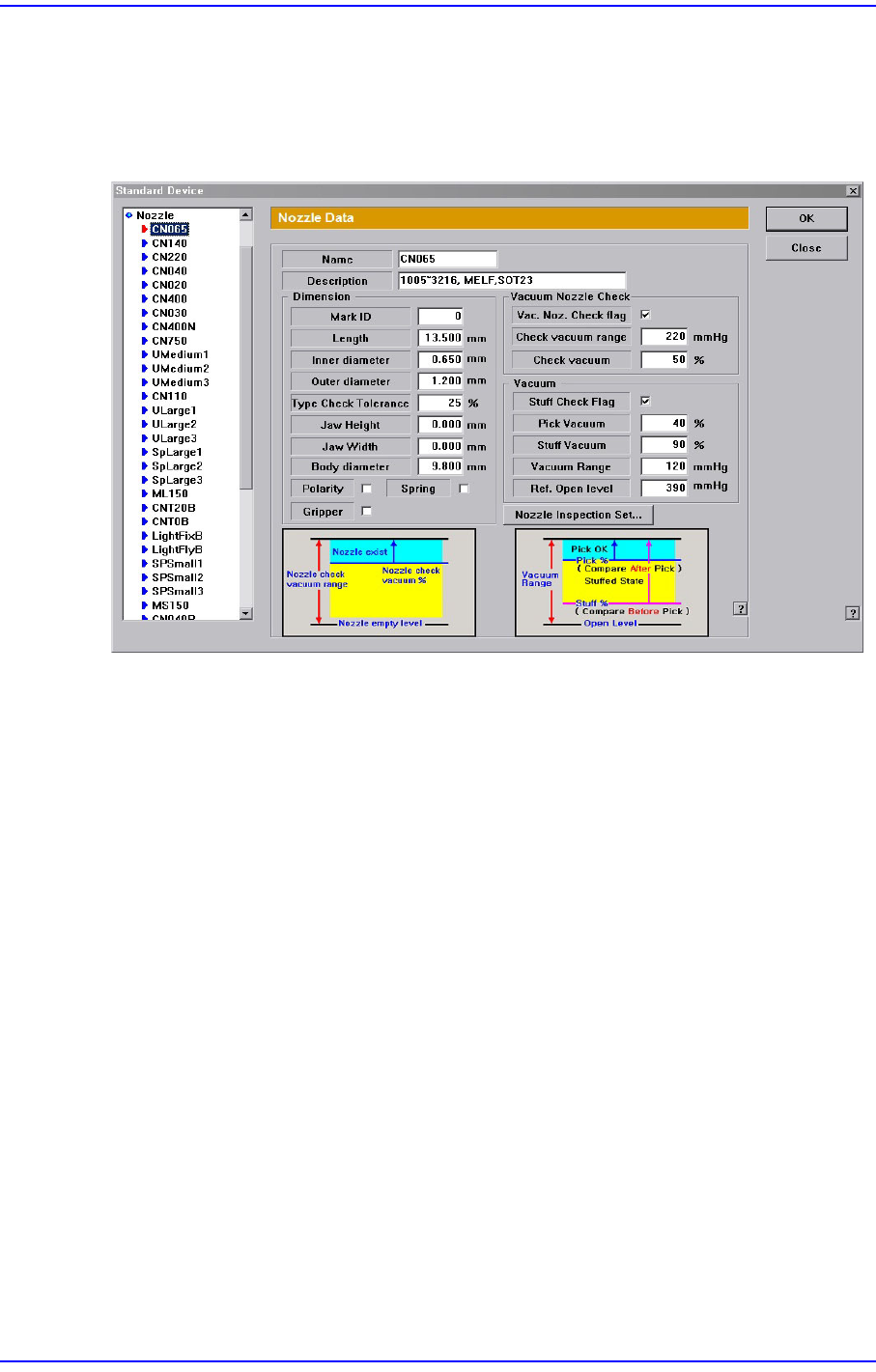

Figure15.27 “Standard Device – Nozzle” dialog box

 List box

Select the nozzle type to set.

 <Name> edit box

Set the name of the selected nozzle.

 <Description> edit box

Set the name of the selected nozzle.

 <Dimension> group

<Mark ID> edit box

Set the mark ID value of the selected nozzle.

<Length> edit box

Set the nozzle length.

<Inner diameter> edit box

Set the inner diameter.

<Inner / Outer diameter> edit box

Set the inner diameter/Outer diameter of the nozzle.

<Type Check Tolerance> edit box

Sets the upper tolerance of inner and outer diameters of the nozzle in percentage
