Installation Manual, Station Software Version 701.02 07/2008 Edition
4.4.3 Calibrating the touchscreen
4.4.3.1 Calibrating the touchscreen for the X-Series
→ Choose Start Æ Settings Æ TouchWare to start the TouchWare Properties program.
19 of 38

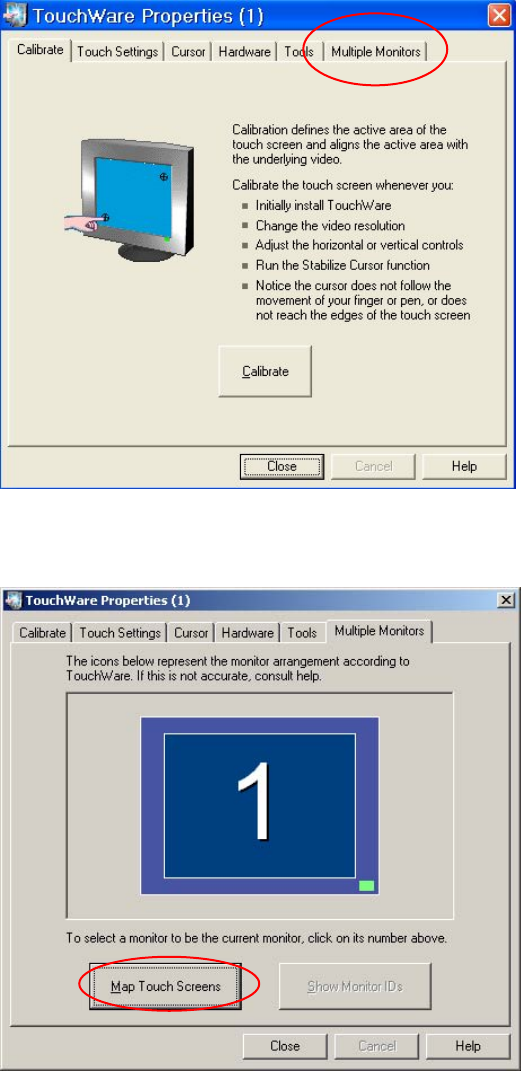

Fig. 4-2: TouchWare Properties
→ Open the Multiple Monitors tab.
Fig. 4-3: TouchWare Properties – Multiple Monitors tab
→ Click the Map Touch Screens button.
The "Multiple Monitor Layout" dialog box appears.
Installation Manual, Station Software Version 701.02 07/2008 Edition

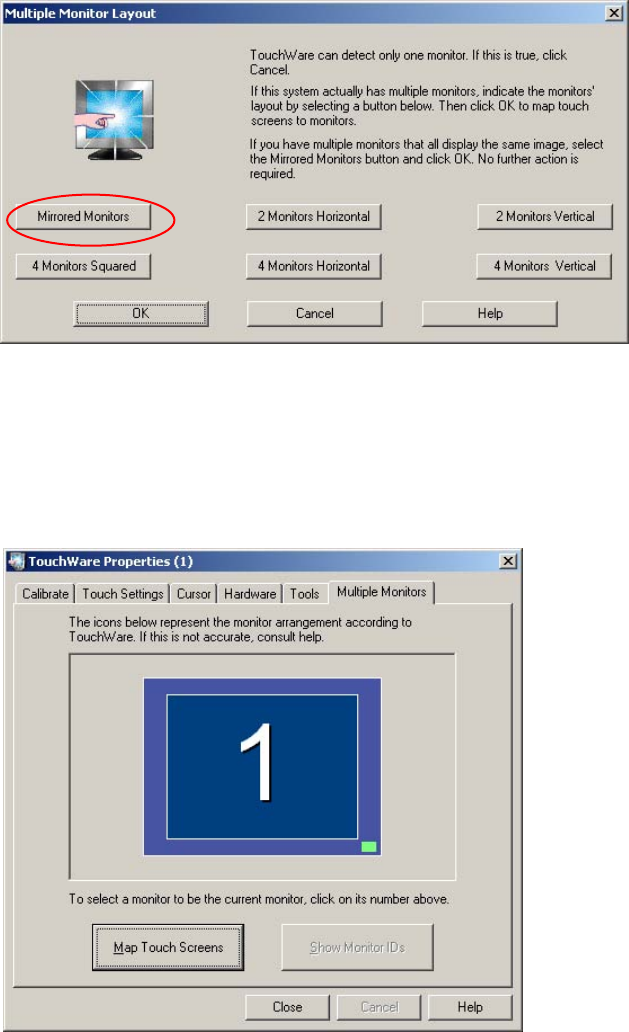

Fig. 4-4: "Multiple Monitor Layout" dialog box
→ Click the Mirrored Monitors button.
→ Confirm your entry with OK.
The touchscreens are now mapped and the "Multiple Monitors" tab is displayed again.
Fig. 4-5: TouchWare Properties – Multiple Monitors tab (example for Monitor 1)
20 of 38
Installation Manual, Station Software Version 701.02 07/2008 Edition

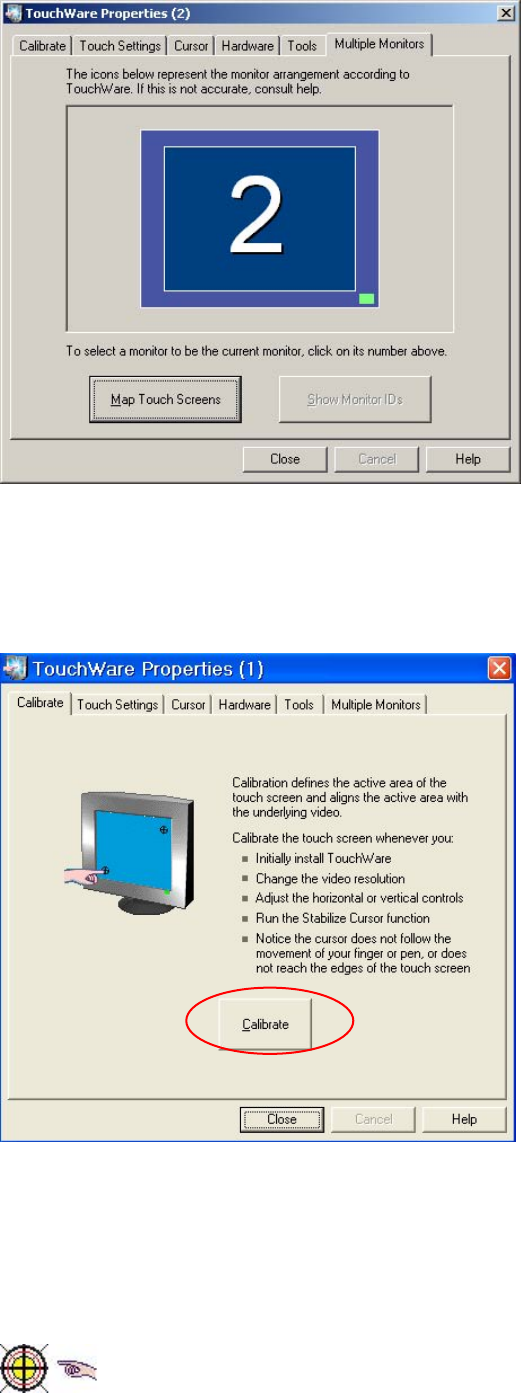

Fig. 4-6: TouchWare Properties – Multiple Monitors tab (example for Monitor 2)
→ Click the number of the monitor you wish to calibrate.
→ Open the Calibrate tab.
Fig. 4-7: TouchWare Properties – Calibrate tab (example for Monitor 1)
→ Click the Calibrate button. An icon representing the calibration is shown on screen. An icon
representing a hand guides you through the calibration steps by pointing to the calibration icon you
must touch.
Fig. 4-8: Calibration marks
21 of 38
