Installation Manual, Station Software Version 701.02 07/2008 Edition 4.5 Inst alling the SIPLACE software (S t ation Software 701.02) Notes: The installation requires approx. 30 minutes. 5 . For information on manually u…
Installation Manual, Station Software Version 701.02 07/2008 Edition
Notes:
Touch the calibration icon within 20 seconds, otherwise calibration is automatically
canceled.
Make sure that you are standing directly in front of the monitor.
Carry out calibration in the position (standing or seated) you normally adopt when working
at this screen.
Touch the calibration icon firmly and accurately with your fingertip.
Make sure that you to not inadvertently touch the screen with any other finger.
→ Touch the calibration icon with your finger and make sure that the yellow area is completely covered
by your finger. The message "Hold" appears around the hand icon.
→ Keep your finger on the calibration icon until the "Touch Enabled" message appears. A second
calibration icon now appears.
→ Repeat the steps described above for the second calibration icon.
A dialog box then appears asking you to test the calibration. You can carry out the calibration again if
you are not sure that you have carried it out correctly the first time.
→ Carry out the procedure described above for the second screen as well.
→ Click the Close button to close the program.
22 of 38
Installation Manual, Station Software Version 701.02 07/2008 Edition
4.5 Installing the SIPLACE software (Station Software 701.02)
Notes:
The installation requires approx. 30 minutes.
5.
For information on manually uninstalling the SIPLACE software, see chapter
→ Switch on the SIPLACE placement machine.
→ Log in to the machine computer as Administrator.
(Keep the Shift key pressed as soon as the Windows XP logo appears)
→ Insert the installation CD in the drive. It is read in automatically.
Note:
If autostart has been disabled for the drive, you must start the installation manually from
the Windows Explorer.
→ Open the Explorer and start "setup.exe" under drive E by double clicking it.
The "SIPLACE Choice Center" dialog box is opened.

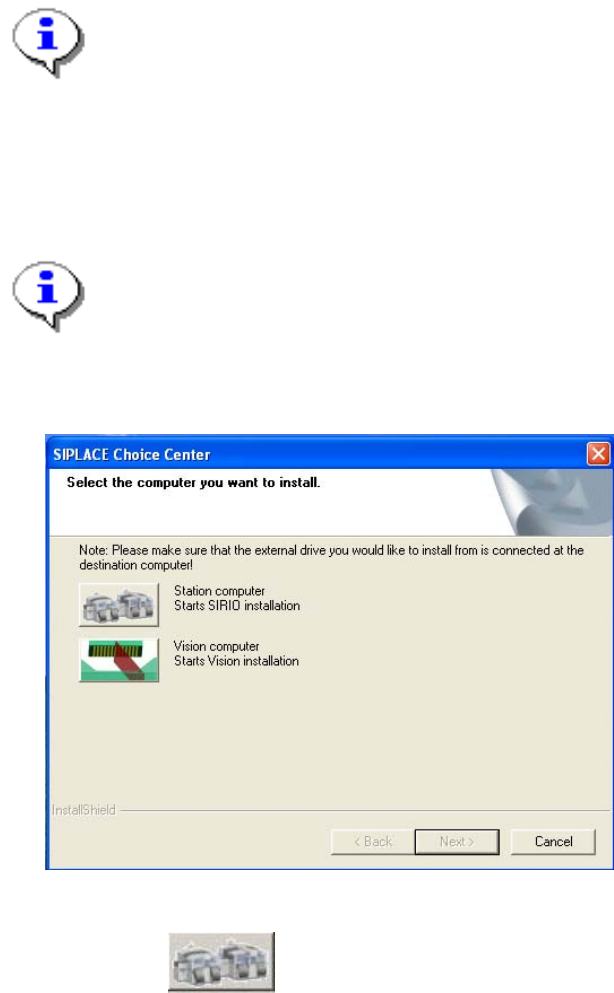

Fig. 4-9: "SIPLACE Choice Center" dialog box
→ Click the "Station computer" button.
Installation of the station software continues with the selection of the language.
23 of 38
Installation Manual, Station Software Version 701.02 07/2008 Edition
4.5.1 Language selection
→ Select the language to be used during installation.
You can choose between German (Germany) and English (United States).

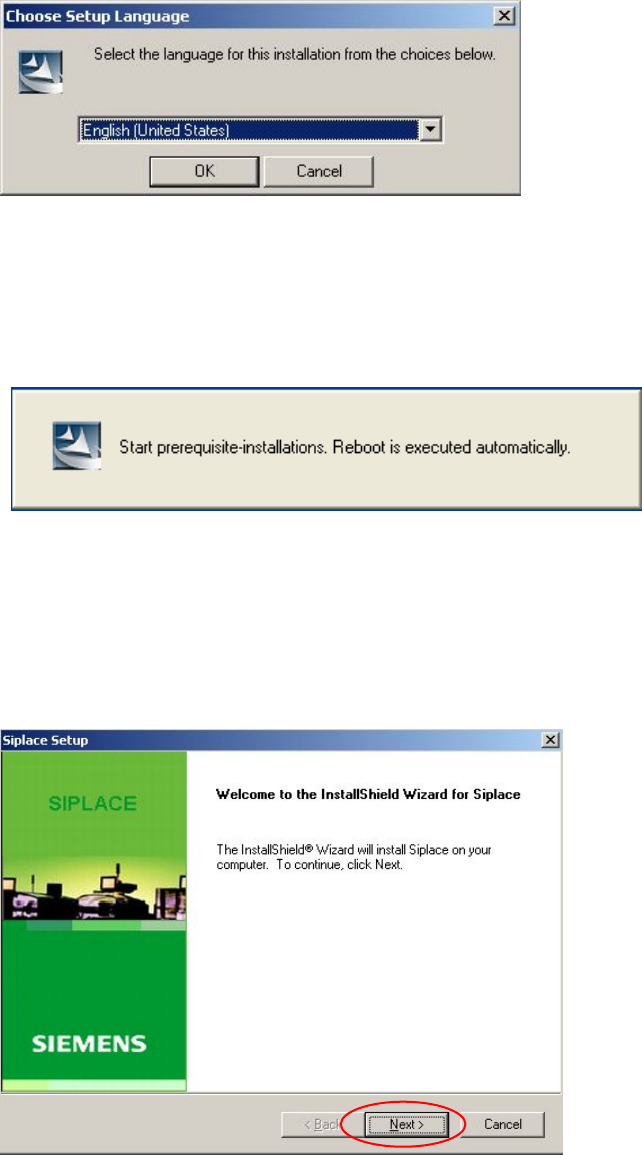

Fig. 4-10: Language selection
→ Click the OK button.
4.5.2 Installing the system files
The necessary system files are installed if they are not already on the machine computer. The machine
computer is rebooted automatically after installation. You are automatically logged in as administrator.
Installation of the station software continues with the welcome screen.
4.5.3 Welcome screen
Fig. 4-11 Welcome screen
→ Click the Next button.
