G -S005-05
0909-002

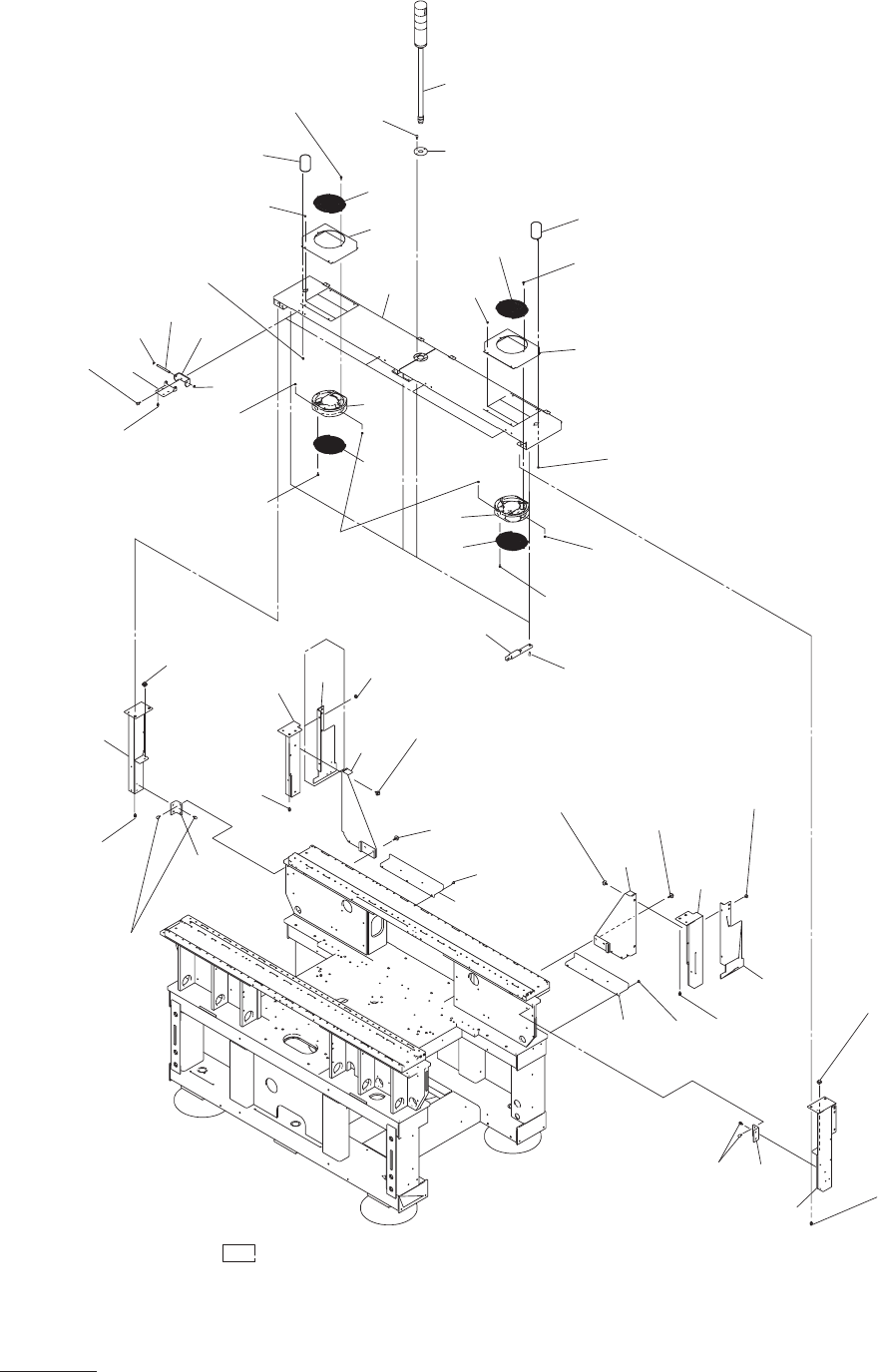

カバー準備
COVER PREPARATION COMPONENT
Fig. GA-3
センターフレーム
Center Frame
Inside the box shows the locations to be treated
when the Keyboard for Machine’s Rear side is attached.
209
236
233
207
237
208
231
241
232
233
210
236
220
266
274
274
263
.
264
.
265
219
217
216
201
204
222
222
256
287
.
288
287
.
288
256
256
279
256
254
293
.
294
.
295
259
287
.
288
287
.
288
258
258
258
257
279
204
257
258
260
.
261
.
262
285
.
272
.
284
275
.
276
.
277
292
.
289
.
288
292
.
289
.
288
292
.
289
.
288
278
.
272
.
284
271
.
272
.
273
286
.
272
.
273
271
.
272
.
273
283
.
272
.
284
283
.
272
.
284
278
.
272
.
284
275
.
276
.
277
271
.
272
.
273
285
.
272
.
284
286
.
272
.
273
271
.
272
.
273
GA-3 illust-1
G -S005-05
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
201 6301681641 FRAME 1 858GA-100-701 210B4351
204 6301680866 BOX 2 858GA-100-704 211B1432
207 6301577647 STAY 1 858GA-100-717 211J1497
208 6301577654 STAY 1 858GA-100-718 211J1498
209 6301577661 STAY 1 858GA-100-719 211J1499
210 6301577913 STAY 1 858GA-100-720 211J1500
216 6301491226 BRACKET 4 858GA-100-016 211FB239
217 6301491240 PIN,HINGE 4 858GA-100-017 216D0546
219 6301491233 BRACKET 4 858GA-100-019 211FB240
220 6301265346 BLOCK 4 858GA-100-020 211G3493
222 4110010409 RING E 6 16 858GA-100-062 221K0099
231 6301612300 BRACKET 1 858GA-100-721 211FD043
232 6301612317 BRACKET 1 858GA-100-722 211FD044
233 6301363899 BRACKET 2 858GA-100-723 211F9638
236 6301336909 BRACKET 2 858GA-100-726 211F9331
237 6301577944 BRACKET 1 858GA-100-727 211FC540
238 6301577951 BRACKET 1 0 858GA-100-728 211FC541
241 6301599595 BRACKET 1
858GAA100030-A001
211FC854
254 6301251752 PILOT LAMP 1 H1,H2,H3,H5
858GA-100-154 4T3A0205
256 6301400617 PILOT LAMP 2 H11 858GA-100-156 4T3A0218
257 6300976830 MOTOR,AC 2 858GA-100-757 4M120044
258 6300890570 ACCESSORY,MOT-M 4 858GA-100-758 23M00040
259 6300352658 BRACKET 1 858GA-100-161 211F0778
260 6300007749 BOLT,HEX-SCT 16 M5X10 858GA-100-035 221A0029
261 4111416705 WASHER SPR 5 16 858GA-100-036 221H0287
262 4111414107 WASHER V 5X10X1 16 858GA-100-037 221H0318
263 6300007886 BOLT,HEX-SCT 8 M6X16 858GA-100-038 221A0043
264 4111413001 WASHER SPR 6 8 858GA-100-039 221H0289
265 4111414305 WASHER V 6X12.5X1.6 8 858GA-100-040 221H0320
266 6300007879 BOLT,HEX-SCT 8 M6X12 858GA-100-041 221A0042
271 6300858310 BOLT,HEX-SCT 8 M6X14 858GA-100-801 221A0240
272 4111413001 WASHER SPR 6 26 858GA-100-802 221H0289
273 6300010237 WASHER 16 BW6 858GA-100-803 221H0006
274 4111139109 SCR TRS 5X10 6 858GA-100-804 221E0534
275 6300007633 BOLT,HEX-SCT 4 M4X12 858GA-100-805 221A0018
276 4111412905 WASHER SPR 4 4 858GA-100-806 221H0284
277 6300010213 WASHER 4 BW4 858GA-100-807 221H0004
278 6300007893 BOLT,HEX-SCT 4 M6X20 858GA-100-808 221A0044
279 4110511708 SCR TRS 4X6 8 858GA-100-809 221E0532
283 6300007909 BOLT,HEX-SCT 4 M6X25 858GA-100-813 221A0045
284 6300010237 WASHER 10 BW6 858GA-100-814 221H0006
285 6300007886 BOLT,HEX-SCT 2 M6X16 858GA-100-815 221A0043
286 6300007886 BOLT,HEX-SCT 8 M6X16 858GA-100-816 221A0043
287 4111404207 BOLT,HEX-SCT 8 M4X20 858GA-100-857 221A0021
GXH-3JPH
G -S005-05
GA-3
GA-3 list-1
G -S005-05
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
GA-3
GA-3 list-2
288 4111414008 WASHER V 4X9X0.8 16 858GA-100-858 221H0315
289 4111412905 WASHER SPR 4 8 858GA-100-859 221H0284
292 4111410505 NUT HEX 5 8 858GA-100-862 221F0082
293 4111404900 BOLT HEX 5X12 2 858GA-100-863 221B014
294 4111416705 WASHER SPR 5 2 858GA-100-864 221H0287
295 4111414107 WASHER V 5X10X1 2 858GA-100-865 221H0318
