1.3.5 Release History
Document
SIPLACE WPC5 on SIPLACE X-Series S
Assembly Instructions
Release Amendments
08/2014 Initial release
03/2020 Amendments, supplements:
●
Scope of delivery
●
Supplement in annex: dismantling the side covers, nozzle changer, detailed
circuit diagrams SIPLACE X-Series S (from Hxxxx) [DE EN: 00197920‑xx]
1.4 Abbreviations
Abbreviations Description
PA, PA1, PA2 Placement area, Placement area 1, Placement area 2
CO Component
COT Changeover table
COT-i Changeover table insert
C&P Collect&Place
CPP Collect&Pick&Place head
CPx Collective term for CPP, CP20, CP12 and/or CP6
DC Dual conveyor with two lanes
ESD Electrostatic sensitive device
EMC Electromagnetic compatibility
SC Single conveyor with one lane
PCB Board
MTC Matrix Tray Changer
P&P Pick&Place
NC Nozzle changer
SC Station computer
TH TwinHead
WPC Wafflepack changer
WPC4/5/6 Wafflepack changer version 4/5/6
Review
1 Introduction
1.4 Abbreviations
62 Assembly Instructions / Montageanleitung SIPLACE WPC an SIPLACE X-Serie S SIPLACE WPC on SIPLACE X
Series S 03/2020
Review
2 Brief description
2.1 Overview of SIPLACE WPC5/WPC6
Assembly Instructions / Montageanleitung SIPLACE WPC an SIPLACE X-Serie S SIPLACE WPC on SIPLACE X
Series S 03/2020
63
2 Brief description
A SIPLACE WPC5/WPC6 can be operated at location 2 of the SIPLACE X-Series S.
The following is required:
●
A fixed table for SIPLACE WPC must be fitted.
●
The waste slide must be changed.
●
The cover must be converted.
●
A protective cover must be fitted to the SIPLACE WPC5/WPC6.
●
Calibration runs need to be performed in the station software.
2.1 Overview of SIPLACE WPC5/WPC6

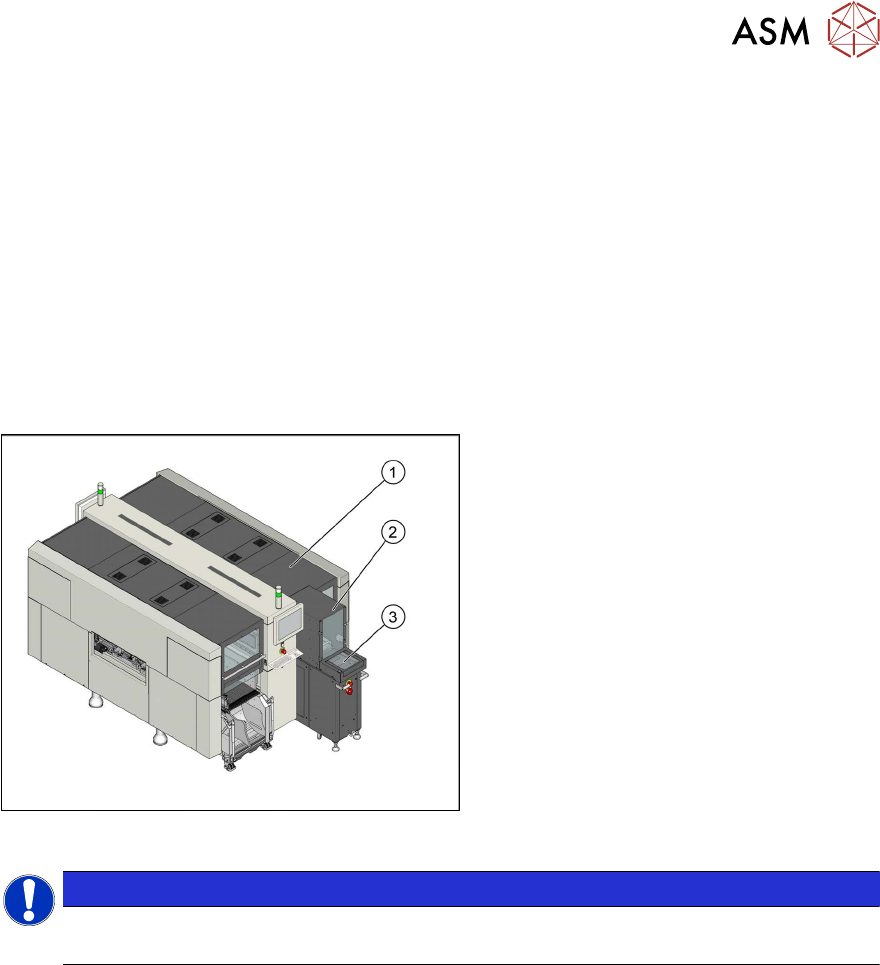

Fig.6: Overview of SIPLACE WPC5/WPC6
1. SIPLACE X-Series S
2. SIPLACE WPC5/WPC6
3. Non-Stop Module (only for SIPLACE
WPC6)
NOTICE
Location
A SIPLACE WPC5/WPC6 can only be operated at location 2 of the SIPLACE X-Series S.
