Maintenance
5-2

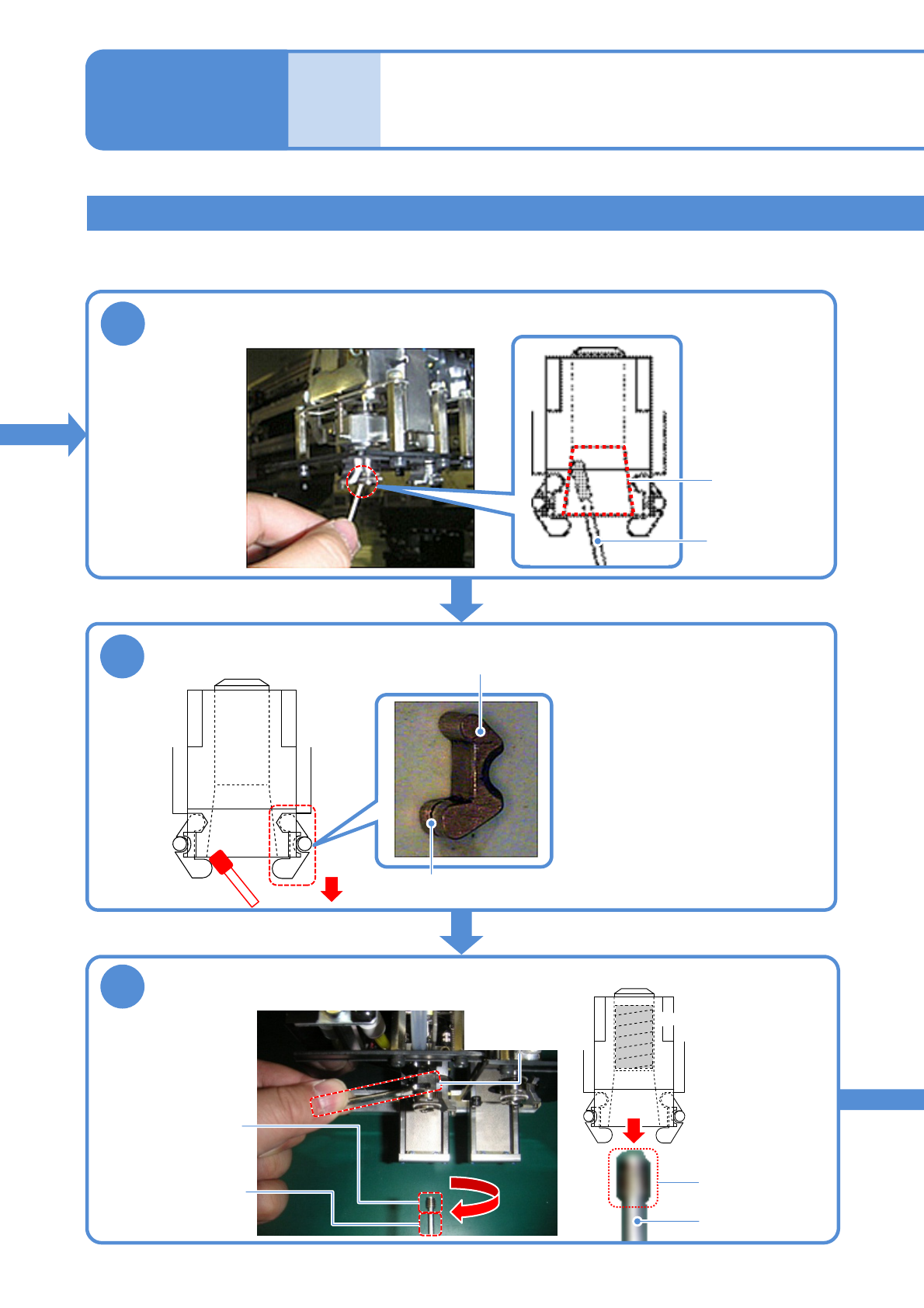

Cleaning the nozzle
holder 2 (3-nozzle head (option))
5-2-3
8
Remove the nozzle filter
Nozzle holder
Spanner (7 mm)
(for rotation stop)
Allen wrench
Nozzle filter
Nozzle filter
Allen wrench: Turn it
counterclockwise as
viewed from below
Cleaning the nozzle holder
6
Clean the nozzle holder taper surface
Nozzle holder
taper surface
Absolute alcohol-
dampened swab
7
●Wipe off grease adhering to any
parts other than the oil groove with
a cotton swab.
Lubricate the oil groove with
grease
Clamp claw
Oil groove (1 location)
●Grease: BARRIERTA IEL/V
NPM-W2 EJM7DE-MB-05M-00

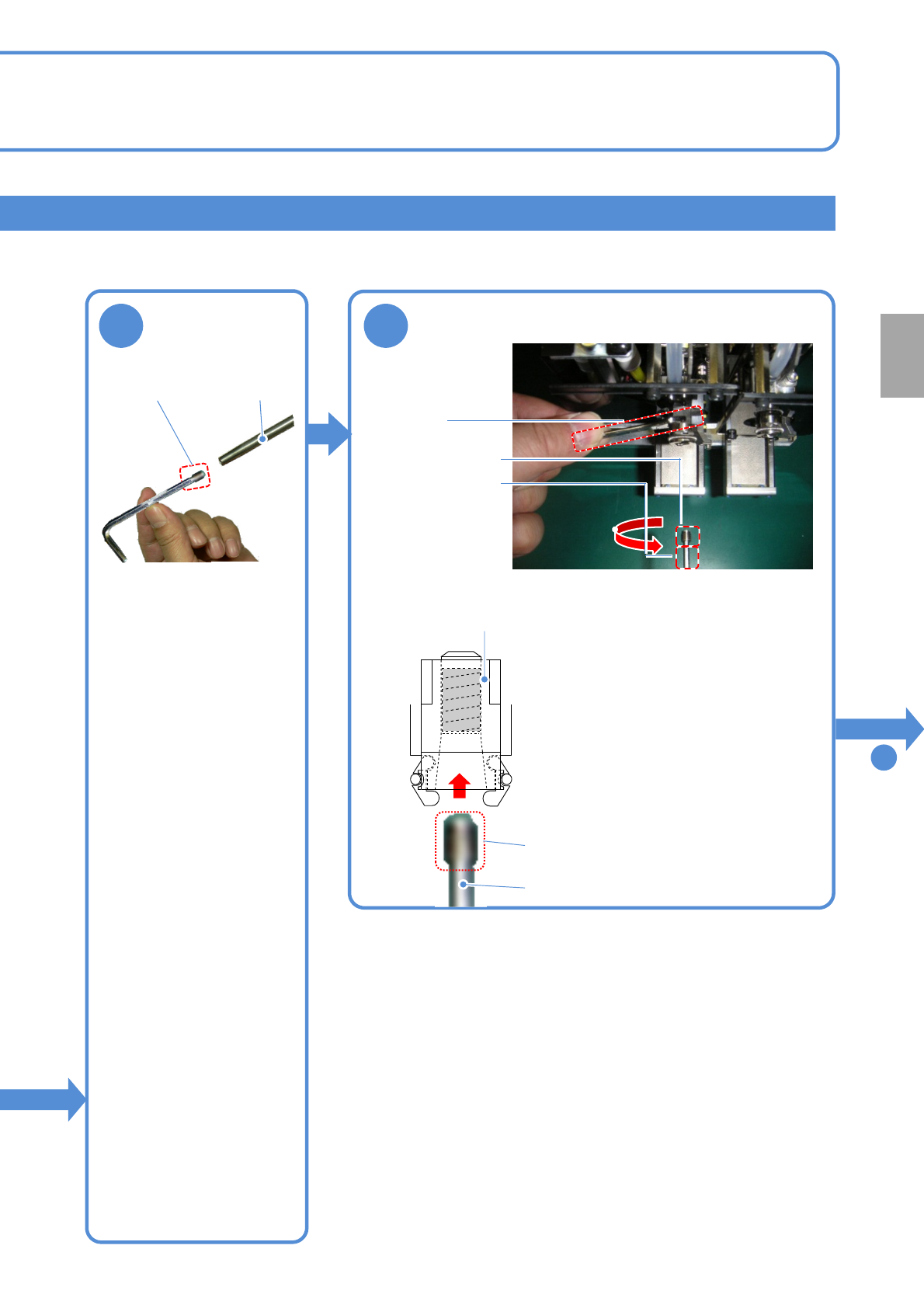

5-2-4
9
Clean with an air
blow gun
10
Attach the nozzle filter
Spanner (7 mm)
(for rotation
stop)
●The filter is small, so be careful
not to drop it.
●Spread cloth over the machine in
advance to prevent the filter from
dropping inside the machine.
●If you cannot remove dust, replace
the filter.
Filter No.: N610009394AB
Nozzle holder
Allen wrench
Nozzle filter
Nozzle filter
Allen wrench:
Turn it clockwise
as viewed from
below.
To
11
Nozzle filter
Air blow
gun (tip)
●Blow in the opposite
direction of the Allen
wrench insertion. The
filter is small so ensure
that it is not blown off.
Every
140
hours
PeriodicPeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-05M-00
Cleaning the nozzle
holder 3 (3-nozzle head (option))
5-2-5
12
Attach the nozzle
∗∗∗∗∗
Inscription
(nozzle No.)
Narrow groove
Wide groove
Nozzle taper surface
●Align the narrow groove with
the θ -direction stopper and
lift the nozzle vertically.
●Check if it is grasped in
chuck.
●Make sure that the nozzle
attachment position is correct.
Attaching the nozzle
SERVO
ON
13
14
Attach the feeder
cart (→P.3-2)
To
15
Maintenance
5-2
11
Check the θ-direction stopper
Nozzle holder
Nozzle
θ-direction stopper
●Set it so that the protrusion of the
θ -direction stopper is aligned
with the narrower groove on the
nozzle brim. If set in reverse, the
placement accuracy is reduced
due to backlash.
