NPM-W 2 EJM7DE-MB-02 M-00 PCB conveyor P eriodic inspection points by unit 2 <Type in common> 2-1-6 -3 Maintenance 2-1-6 Over- view Front and rear sides Extension conveyor Front side PCB detection sensor PCB transf…
NPM-W2 EJM7DE-MB-02M-00
2-1-6-2

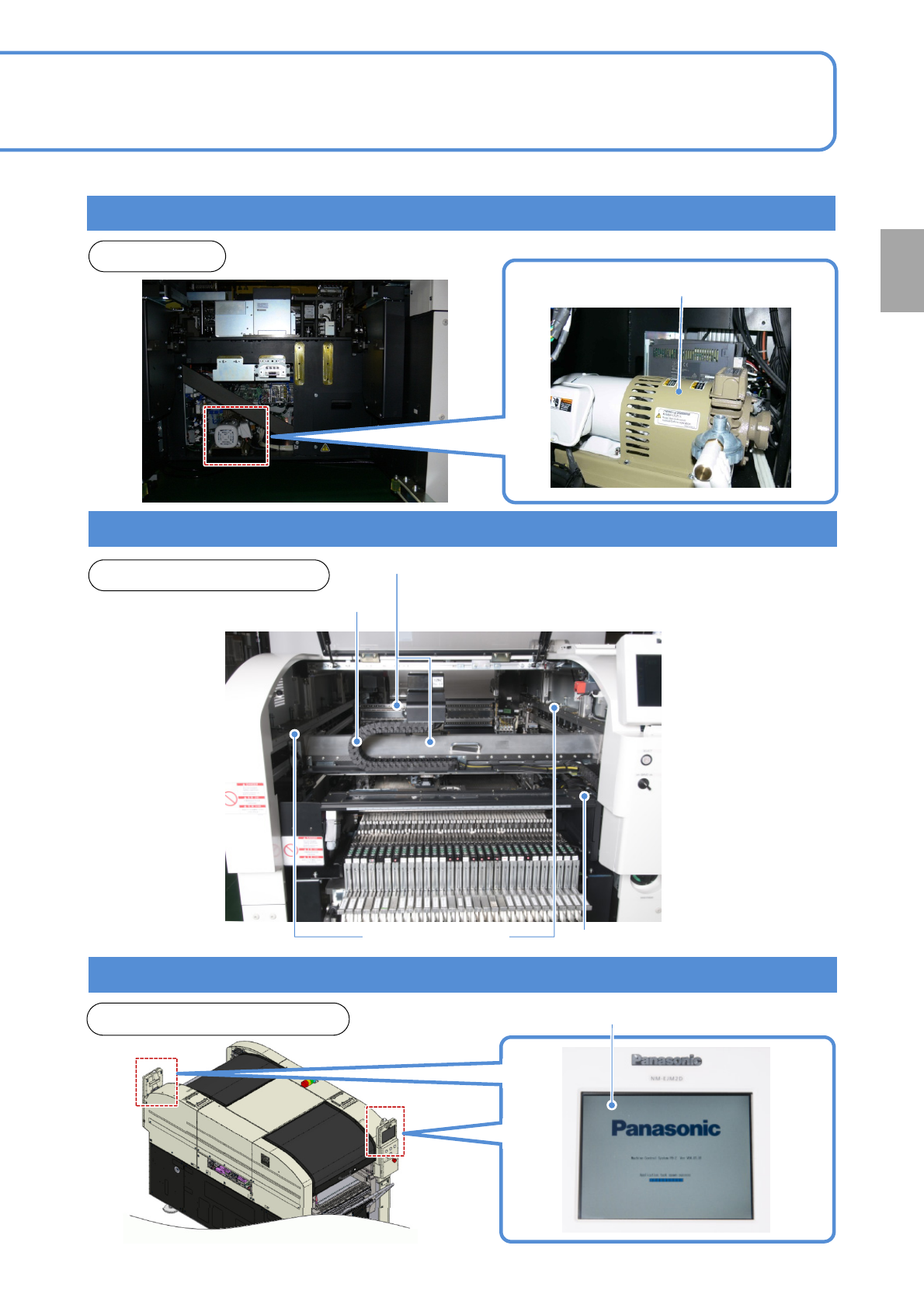

Overview
Color touchscreen
XY unit
Vacuum pump
Vacuum pump
Rear side
Front and rear sides
Front and rear sides
Y-axis cable bearer
Y-axis linear guide
X-axis linear guide
X-axis cable bearer
Touchscreen
NPM-W2 EJM7DE-MB-02M-00

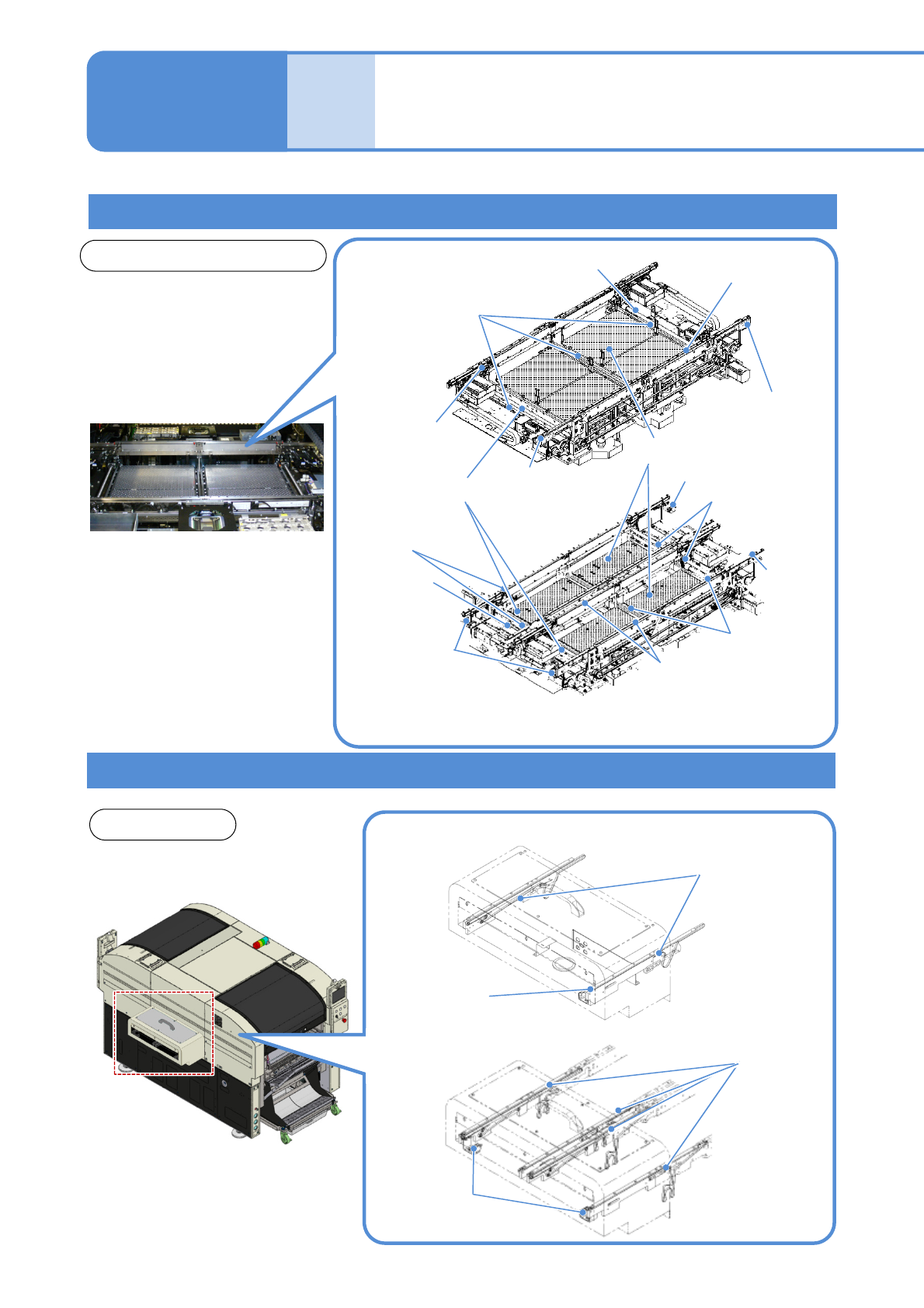

PCB conveyor
Periodic inspection points
by unit 2
<Type in common>
2-1-6-3
Maintenance
2-1-6
Over-
view
Front and rear sides
Extension conveyor
Front side
PCB detection
sensor
PCB transfer belt
■Single conveyor
■Dual conveyor
PCB detection
sensor
PCB transfer belt
■Dual conveyor
Linear guide
PCB
detection
sensor
PCB support block
Width-adjustment
ball screw
Linear guide
Width-adjustment
ball screw
Linear guide
PCB transfer
belt
PCB detection
sensor
PCB transfer
belt
*Number of PCB detection sensors;
・4 for the transparency type
・2 for the reflection type
PCB detection
sensor
PCB transfer
belt
PCB transfer
belt
PCB detection
sensor
■Single conveyor
Width-adjustment
ball screw
PCB detection sensor
NPM-W2 EJM7DE-MB-02M-00
2-1-6-4
Overview
Feeder cart
Used-tape box
Multi-recognition camera
Cutting unit
Front and rear sides
Front and rear sides
Feeder table
Cover glass
Connecter
