NPM-W2 EJM7DE-MB-03M-00
How to install cartridge
2
3
4
1
Remove the cap from cartridge
and screw the cartridge into
the main body with the grease
canister removed
●Screw in tight.
(Loose cartridges may cause grease to
leak)
Pull the chain on the grease
canister ( ) and lock it into
the groove ( )
Insert the cartridge into the
grease canister ( ), and screw
the canister into the main body
( )
Release the chain from the groove
( ) and house it in the canister
( )
●Check if the grease comes out of the nozzle
tip by pumping the lever a few times ( )
3-1-2
Lever
1
2
1
2
Cartridge
1
2
Canister
Chain
Groove
1
2
1
1
2
2
3
3
Periodic
inspection
NPM-W2 EJM7DE-MB-03M-00

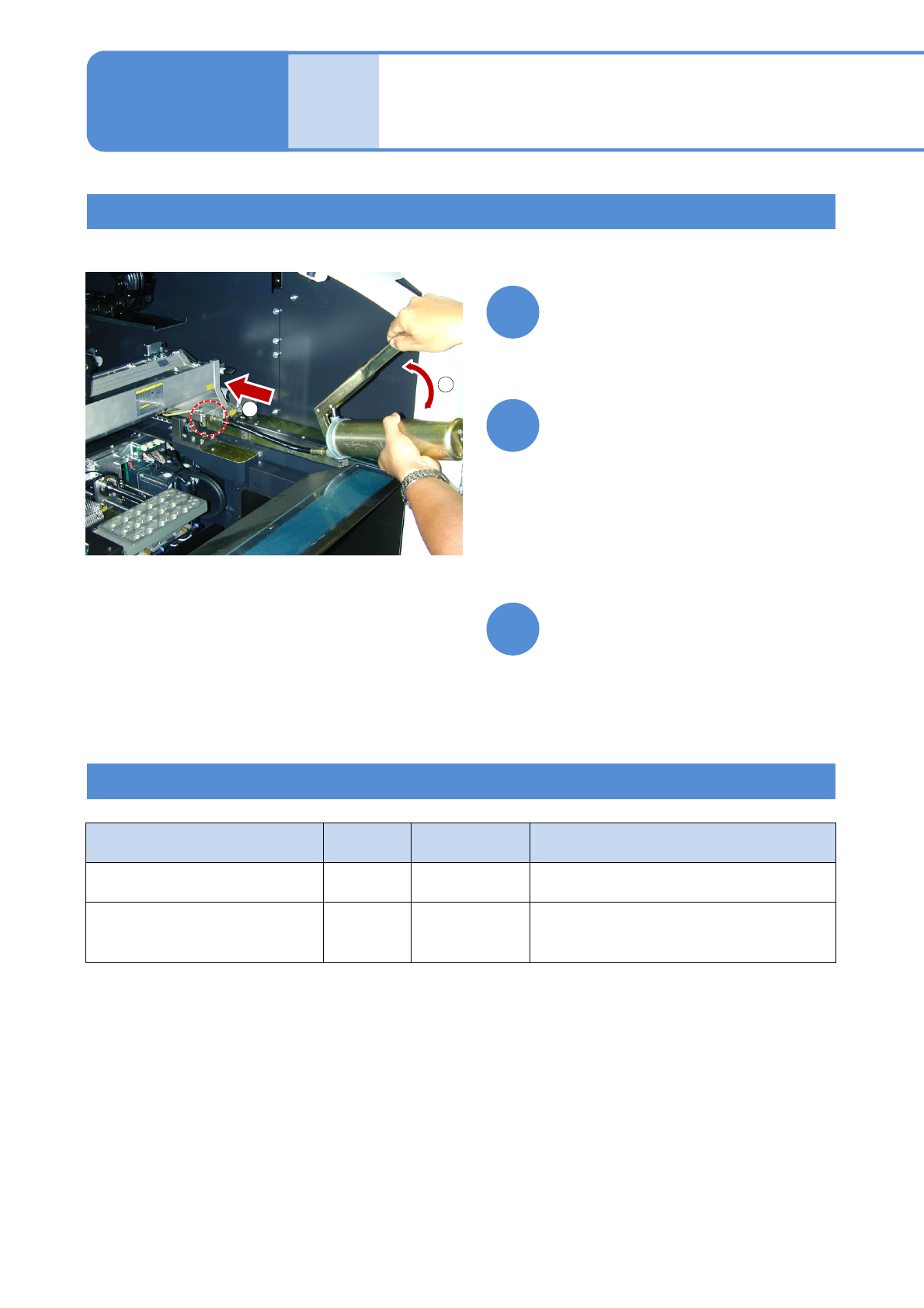

How to use the grease gun
Applied grease list
Push the nozzle tip onto the
grease nipple
Pump the lever a few times
●To apply the prescribed amount of grease,
operate the lever in the following positions -
fully open, halfway opened, a quarter way
opened, or fully closed.
●Delivery rate, if the grease gun as an
option is in use, is 0.9 cm
3
per stroke.
Wipe off any excess grease
with a cloth
●If left unattended, the excess grease
may drop on the PCB during
production.
●For information about the grease precautions, see (→P.16-2 ) [Safety Data Sheet (SDS)].
1
2
3
Main grease point
Grease
type
Specified
grease name
Manufacturer
XY table
(ball screw, linear bearing)
Grease LCG100 Panasonic Factory Solutions, Co, Ltd.
Placement head
Fluorine
grease for
vacuum
BARRIERTA
IEL/V
NOK Kluber Co., Ltd.
3-1-3
Maintenance
3-1
* This picture shows how to use the grease gun.
The machine on the photo is not NPM-W2.
Greasing 2
1
2
NPM-W2 EJM7DE-MB-03M-00
3-1-4
Anti-rust and lubricant list
Main grease point Type
Designated
lubricant name
Manufacturer
Touchscreen (hinge)
Anti-rust
and
lubricant
Touch lube Panasonic Factory Solutions Co., Ltd
Nozzle holder (slicing surface) FL100 SUMICO LUBRICANT CO., LTD.
●Precautions on ant-rust and lubricant, see [Safety data sheet(SDS)] (→P16-2) .
