NPM-W 2 EJM7DE-MB-03 M-00 3-2 -2 Pull the pipe up Press for over three seconds (The cart is secured to the machine as the buzzer sounds, and the lamp changes from flash ing to illumination) Attach the feeder cart How to …

100%1 / 572
NPM-W2 EJM7DE-MB-03M-00
3-2-1
Maintenance
3-2
Press for over
three seconds
(The lamp changes from
illumination to flashing with
the buzzer sound that allows
you to detach the cart from
the machine.)
Fix the handle
Detaching procedure
Pull the feeder
cart out
1
Lift the handle up
*Please note that the feeder
cart can move 100 mm
forward.
2
Lower the pipe until it
stops
*Be careful not to pinch the
feeder power cable in any
place as you lift the handle
up.
.
How to handle the
feeder cart (feeder cart(option))
Pay full attention to your surroundings and keep a safe distance
from people around you while moving the feeder cart
(Collisions with the feeder cart may result in injury.)
WARNING
1
2
3
●One on either side
NPM-W2 EJM7DE-MB-03M-00
3-2-2
Pull the pipe up
Press for over
three seconds
(The cart is secured to the
machine as the buzzer
sounds, and the lamp
changes from flashing to
illumination)
Attach the feeder cart
How to attach
(The lamp changing from
illumination to flashing
allows you to attach the
cart to the main body)
Put the handle back
Put the handle back
*Be careful not to pinch the
feeder power cable in any
place as you set the cart.
*Be careful not to pinch the feeder power cable in any
place as you put the handle back.
1 2
1
2
3
Periodic
inspection
●One on either side
NPM-W2 EJM7DE-MB-03M-00

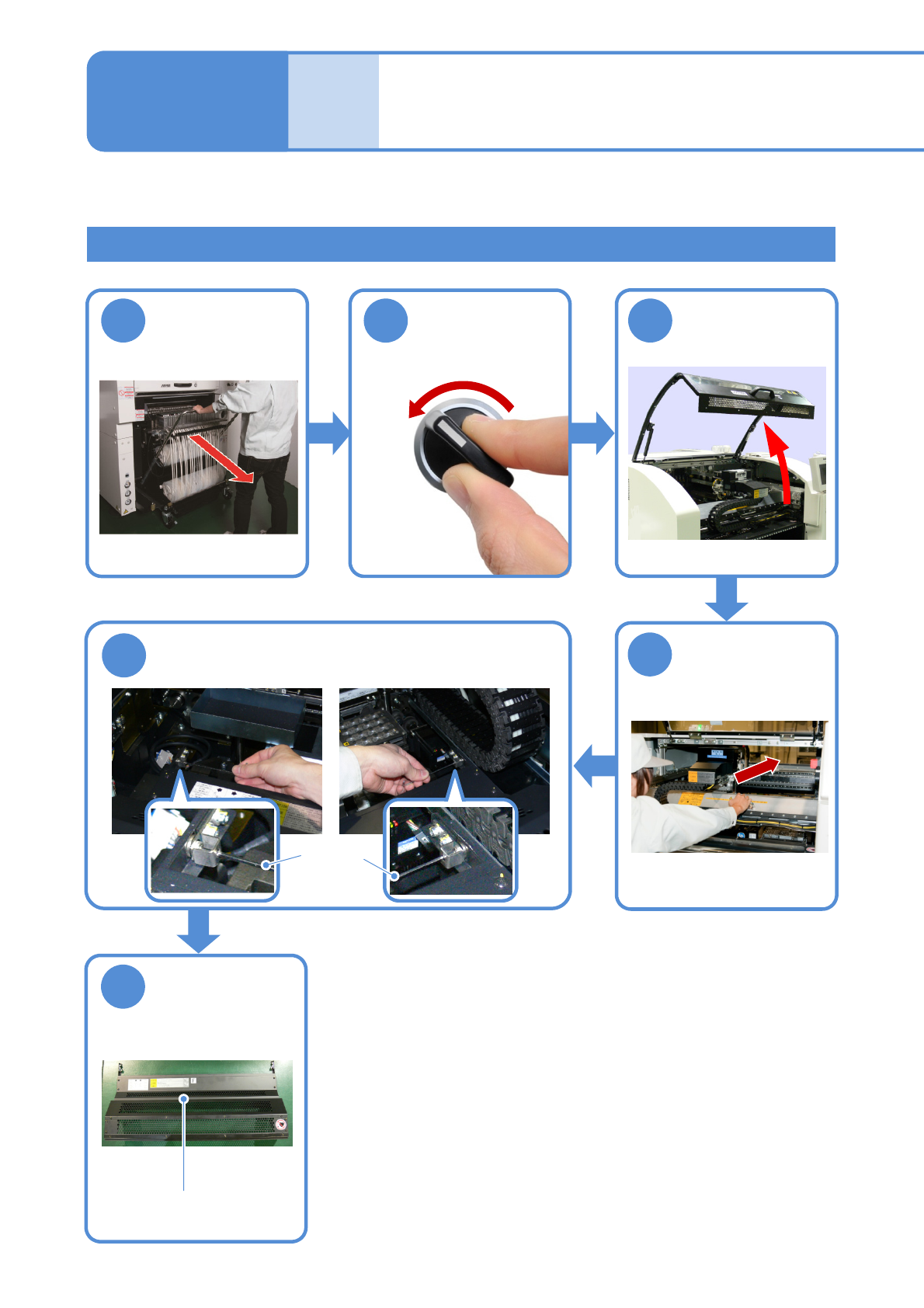

Detaching the feeder table cover
3-3-1
5
Allen wrench
(3 mm)
Loosen the feeder table cover screws
6
Remove the
feeder table
cover
1 3
4
Feeder cover
Pull out the
feeder cart
(→P.3-2)
Maintenance
3-3
Detaching and attaching
the feeder table cover 1
OFF
SERVO
2
Push the X-axis
inward
(One on either side)
●For the machine that the independent changeover support unit
(movable cover) is installed, the insertion way of the wrench is
different from the one shown in the picture above step ⑤.
