NPM-W2 EJM7DE-MB-04M-00
4-1-2-1
Tool used: None Time required: One minutes (per location)
Describes inspection of the dummy dispensing tape.
●For the rear side,
1
●The head moves to the
exchange position.
3
Before
opera-
tion
Maintenance
4-1-2
Checking the dummy
dispensing tape
(dispensing head(option))
OFF
SERVO
2
NPM-W2 EJM7DE-MB-04M-00
4-1-2-2

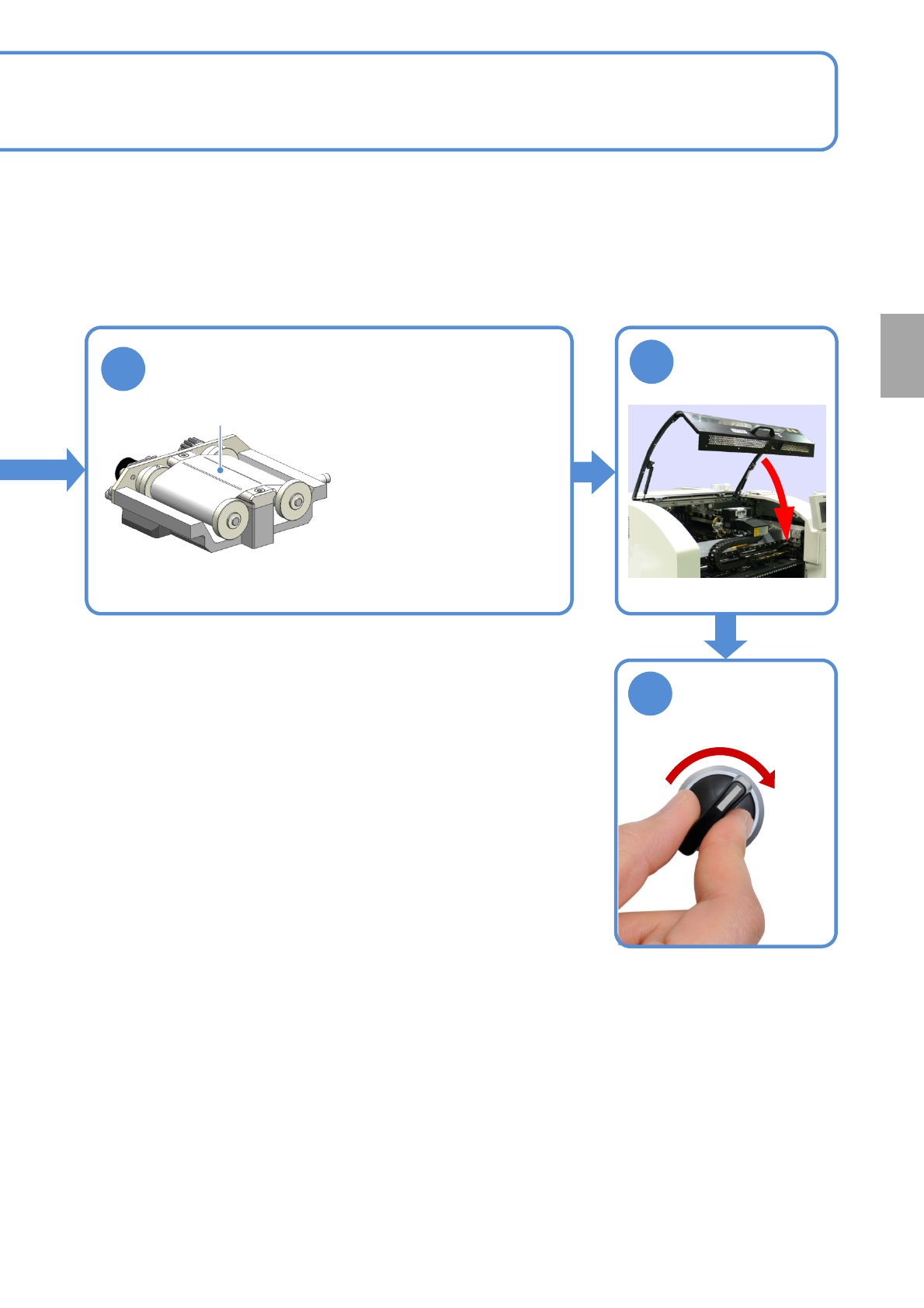

Visually check the remaining amount of tape
4
●At this time, also check
for slack in the tape.
If tape slack is found,
turn the feed side reel in
a counterclockwise to
take up the slack.
Dummy dispensing tape
Feed side Tape-up
side
SERVO
ON
5
6
Every
24
hours
PeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-04M-00
Maintenance
4-2-1
Cleaning the
components-ejection box
4
After
opera-
tion
Tool used: None Time required: 3 minutes (Total of the front and rear sides)
●Clean the components-ejection box.
●Clean it after operation.
●Not only after operation but also during production, clean it before it is full.
Remove components in the components-
ejection box
Put it back in its
original position
5
2
3
Push the X-axis
inward
6
4-2-1
●Lift it up from the bottom of the
components-ejection box to remove.
Describes cleaning of the components-ejection box.
Components-ejection box
●Ensure that it is properly
placed.
(Otherwise, the error
message appears on the
screen and you cannot
activate the machine.)
OFF
SERVO
1
SERVO
ON
7
Place the box by adjusting
the groove.
Bolt
