NPM-W 2 EJM7DE-MB-04M-00 Tool used: None Time required: 1 minutes (per location) ● Clean the used-tap es box of the feeder cart and 13-slot feeder (option). ● Not only after operation but also during produ ction, clean t…
NPM-W2 EJM7DE-MB-04M-00
Maintenance
4-2-1
Cleaning the
components-ejection box
4
After
opera-
tion
Tool used: None Time required: 3 minutes (Total of the front and rear sides)
●Clean the components-ejection box.
●Clean it after operation.
●Not only after operation but also during production, clean it before it is full.
Remove components in the components-
ejection box
Put it back in its
original position
5
2
3
Push the X-axis
inward
6
4-2-1
●Lift it up from the bottom of the
components-ejection box to remove.
Describes cleaning of the components-ejection box.
Components-ejection box
●Ensure that it is properly
placed.
(Otherwise, the error
message appears on the
screen and you cannot
activate the machine.)
OFF
SERVO
1
SERVO
ON
7
Place the box by adjusting
the groove.
Bolt
NPM-W2 EJM7DE-MB-04M-00
Tool used: None Time required: 1 minutes (per location)
●Clean the used-tapes box of the feeder cart and 13-slot feeder (option).
●Not only after operation but also during production, clean them before they are full.
After
opera-
tion
Maintenance
4-2-2
4-2-2
Describes cleaning of the used-tape box.
Every
24
hours
PeriodicPeriodic
inspection

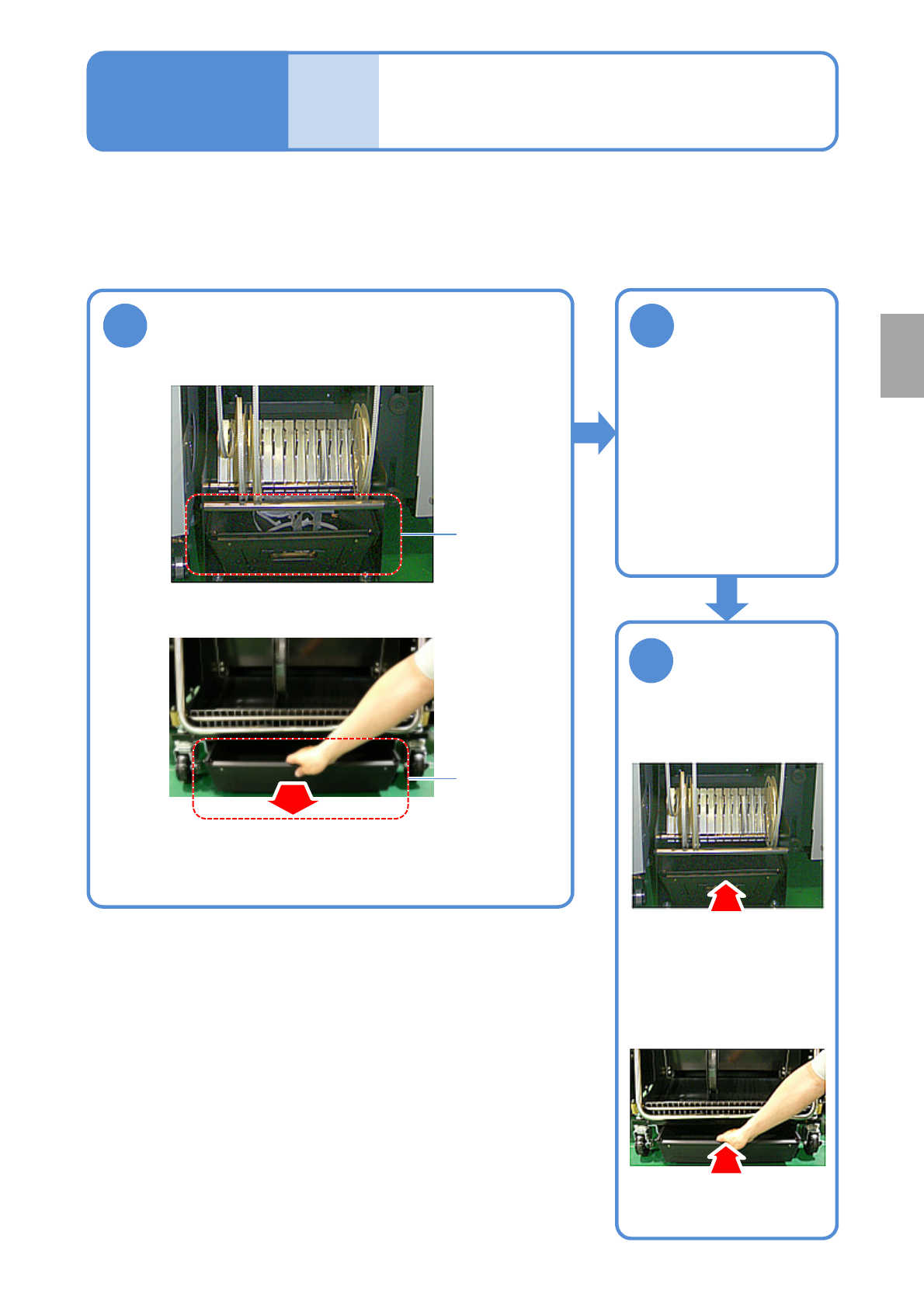

Cleaning the used-tape
box
(feeder cart and 13-slot feeder
(option))
Draw out the used-tape box
Dispose of the
used tapes
Put the used-tape
box back in its
original position
2
1
3
Used-tape box
■13-slot feeder
■Feeder cart
■For 13-slot feeder
■Feeder cart
Used-tape box
●If you shake the box back and forth several times, the tape
layer becomes flat so that you can easily draw it out.
NPM-W2 EJM7DE-MB-04M-00
After
opera-
tion
Maintenance
4-2-3
Cleaning the refuse box
(tray feeder(option))
4-2-3
Draw out the refuse box
Empty it out
Put the refuse
box back in its
original position
2
1
3
Tool used: None Time required: 1 minute
●Clean the refuse boxes of the single tray feeder (option) and the twin tray feeder (option).
●Not only after operation but also during production, clean them before they are full.
■Single tray feeder
■Twin tray feeder
Refuse box
Refuse box
■Twin tray feeder
●If you shake the box back and forth for several times, the
tape layer becomes flat and it may easy to draw out.
Describes cleaning of the refuse box.
