NPM-W2 EJM7DE-MB-04M-00
After
opera-
tion
Maintenance
4-2-3

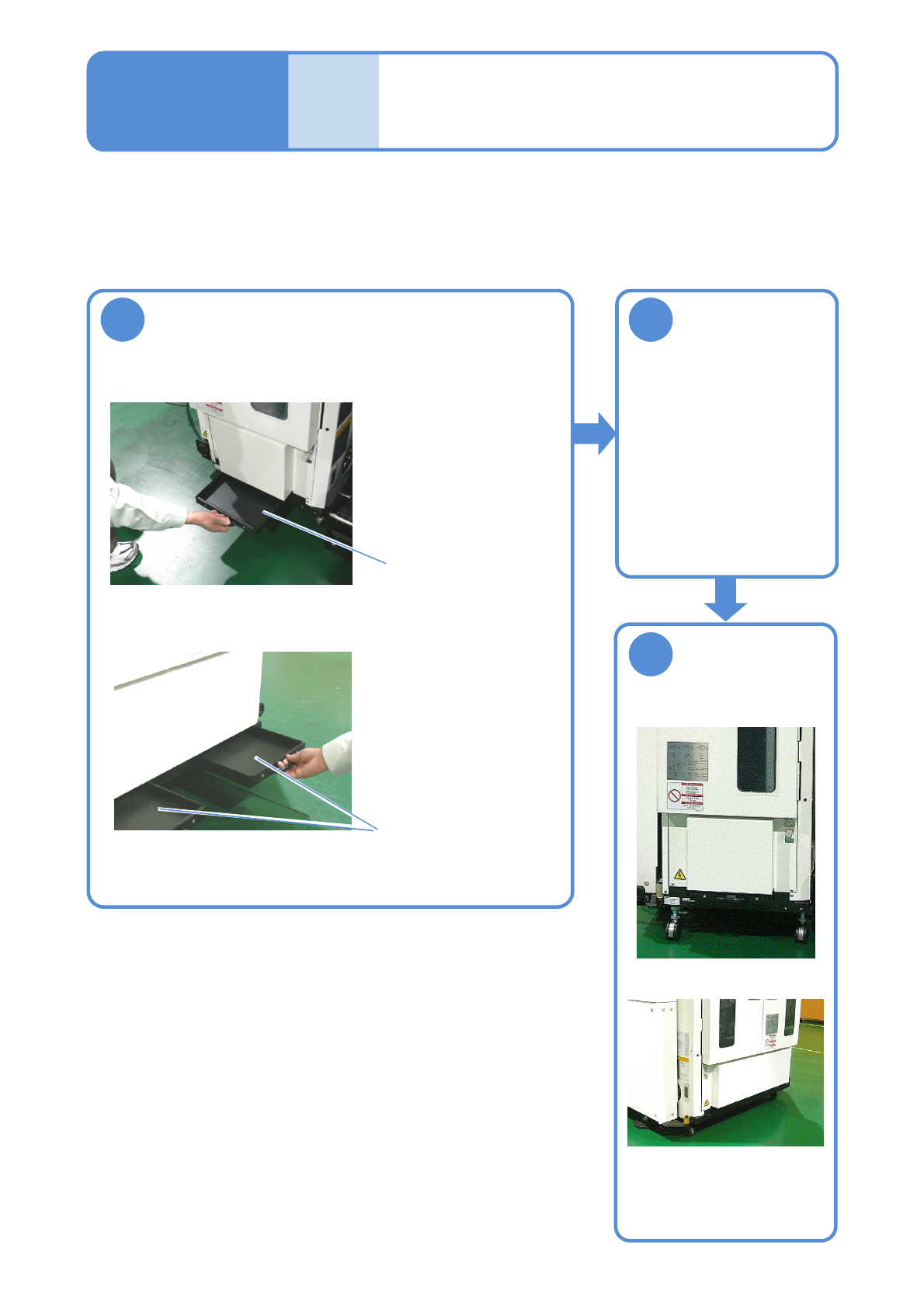

Cleaning the refuse box
(tray feeder(option))
4-2-3
Draw out the refuse box
Empty it out
Put the refuse
box back in its
original position
2
1
3
Tool used: None Time required: 1 minute
●Clean the refuse boxes of the single tray feeder (option) and the twin tray feeder (option).
●Not only after operation but also during production, clean them before they are full.
■Single tray feeder
■Twin tray feeder
Refuse box
Refuse box
■Twin tray feeder
●If you shake the box back and forth for several times, the
tape layer becomes flat and it may easy to draw out.
Describes cleaning of the refuse box.
NPM-W2 EJM7DE-MB-04M-00

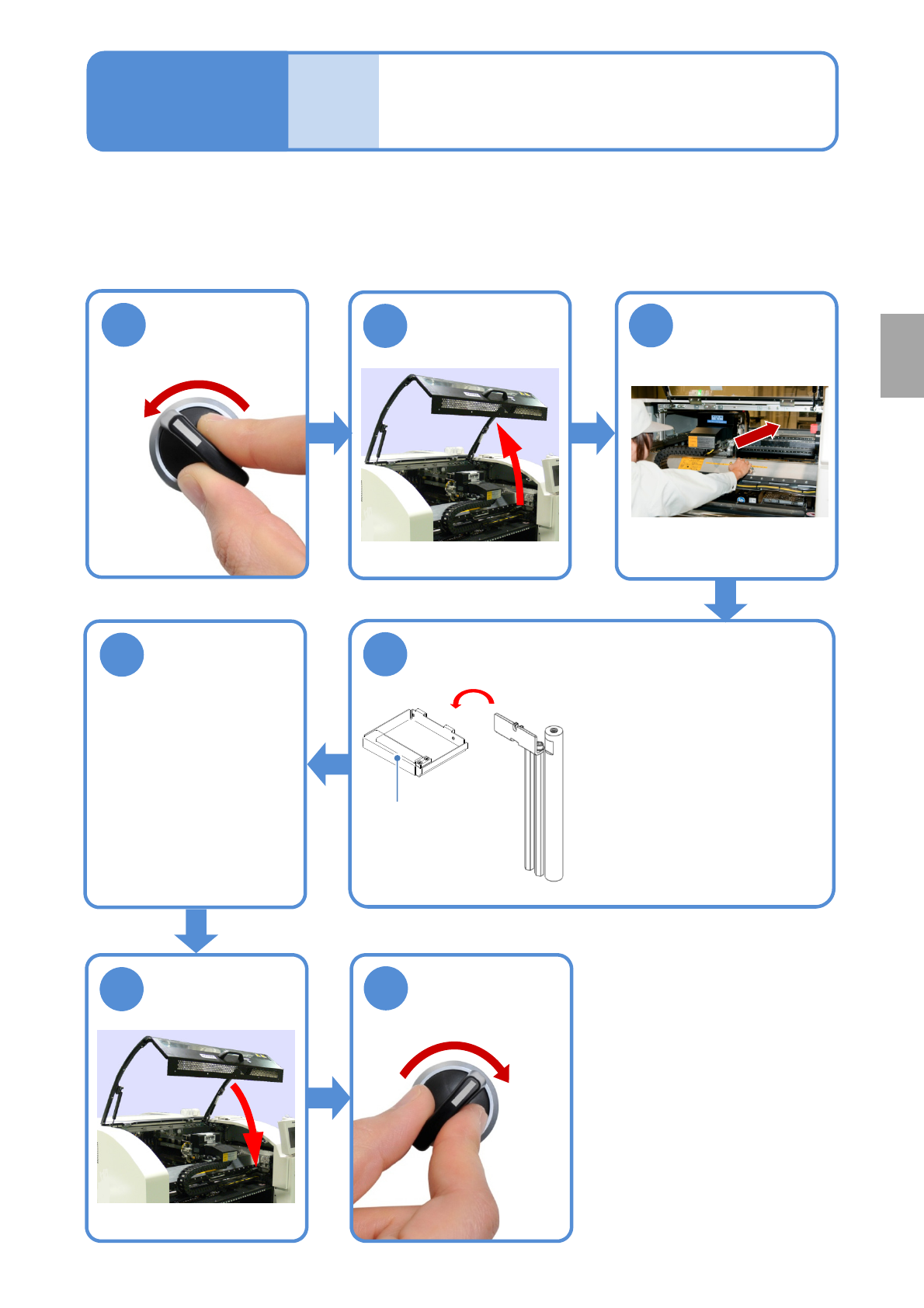

Cleaning the wiping
station (dispensing head(option))
Tool used: Lint free cloth Time required: 3 minutes (per location)
4-2-4
Describes cleaning of the wiping station.
5
Return the wiping
station back in
the original
position
4
2
3
Push the X-axis
inward
Remove the wiping station and wipe off
adhesive residue
Wiping station
●Make sure that it is
properly placed on the
stand. If it is placed with
it stranded on the edge of
the stand, nozzles may
be damaged in operation.
6
After
opera-
tion
Maintenance
4-2-4
OFF
SERVO
1
SERVO
ON
7
Every
24
hours
PeriodicPeriodic
inspection
●Wipe the cushion (wiping
station) or other areas
adhering adhesive residue
with a lint free cloth.
NPM-W2 EJM7DE-MB-04M-00

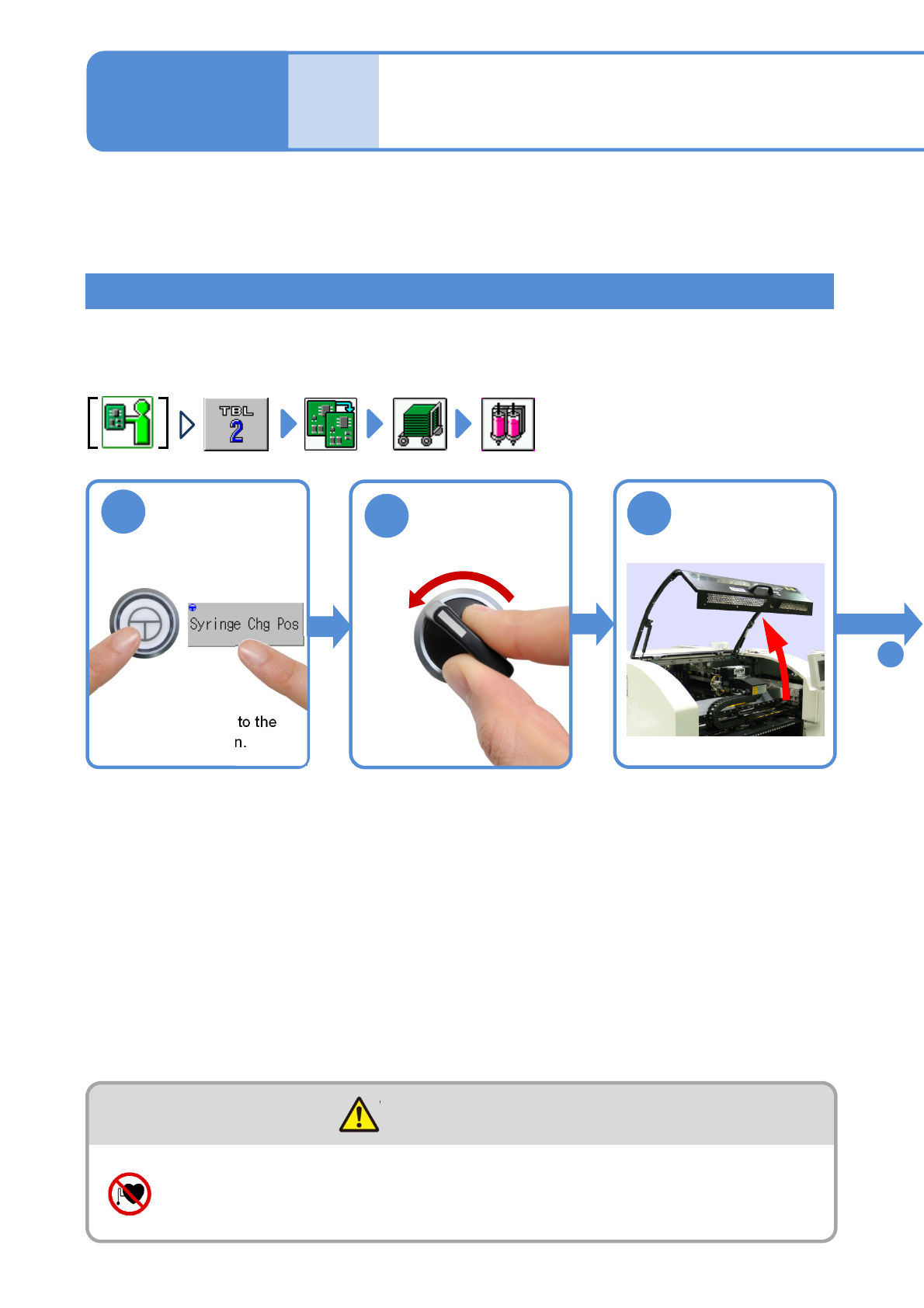

4-2-5-1
Cleaning and checking the
screw unit and the nozzles 1
(dispensing head(option))
Tool used: Lint free cloth, air blow gun Time required: 30 minutes (per location)
Describes cleaning and inspection of the syringe placed in the dispending head.
1
●The head moves to the
exchange position.
3
Detaching the syringe
Warning
Individuals with pacemakers, etc. should keep away from the linear motor
(Risk of accidents caused by errors in operation due to magnetic force)
To
4
If the dispensing head is attached to the front side, perform from the rear side, if the one attached to the rear
side, perform from the other way. The explanation in the following procedure is an example when the
dispensing head is installed on the rear side and operated from the front side.
After
opera-
tion
Maintenance
4-2-5
OFF
SERVO
2
