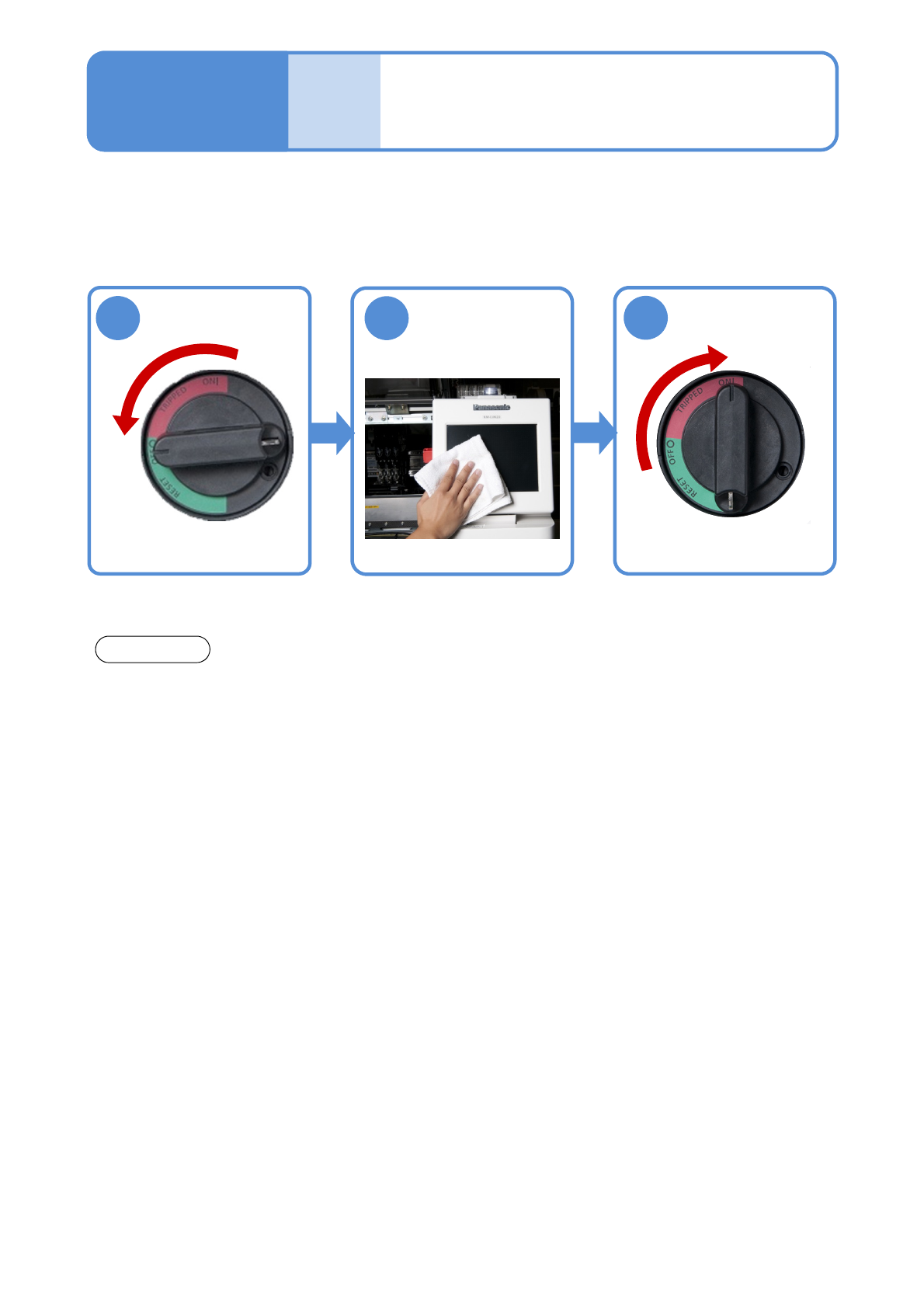

Describes the cleaning of the touchscreen.
Tool used: Lint free cloth Time required: 3 minutes (Total time required for cleaning front/rear touchscreens)
●Dust can cause touchscreen malfunction. The screen should be cleaned as needed.
5-1-1
Cleaning the
touchscreen
Maintenance
5-1
Wipe with a
clean, soft cloth
NOTICE
●Be careful not to give any shock to or damage the touch screen.
●When the touch screen is laden with dust or dirt, soak a lint-free cloth in a neutral detergent diluted
with water and wring out thoroughly. Use the cloth to wipe off the dust or dirt. Never spray cleaning
solutions, including liquid crystal display cleaners, directly on the touch screen; the liquid could
penetrate inside of the touch screen and cause it to malfunction.
●Use a lint-free cloth when cleaning the touch screen in a clean room.
1
2
3
OFF
ON
NPM-W2 EJM7DE-MB-05M-00
Every
140
hours
Periodic
inspection
5-1-2
NPM-W2 EJM7DE-MB-05M-00
∗∗∗∗∗
Cleaning the nozzle
holder 1 (3-nozzle head (option))
Maintenance
5-2
Tool used: Air blow gun, lint free cloth, cotton swab, Allen wrench (2.5 mm), spanner (7 mm)
Time required: 30 minutes per head

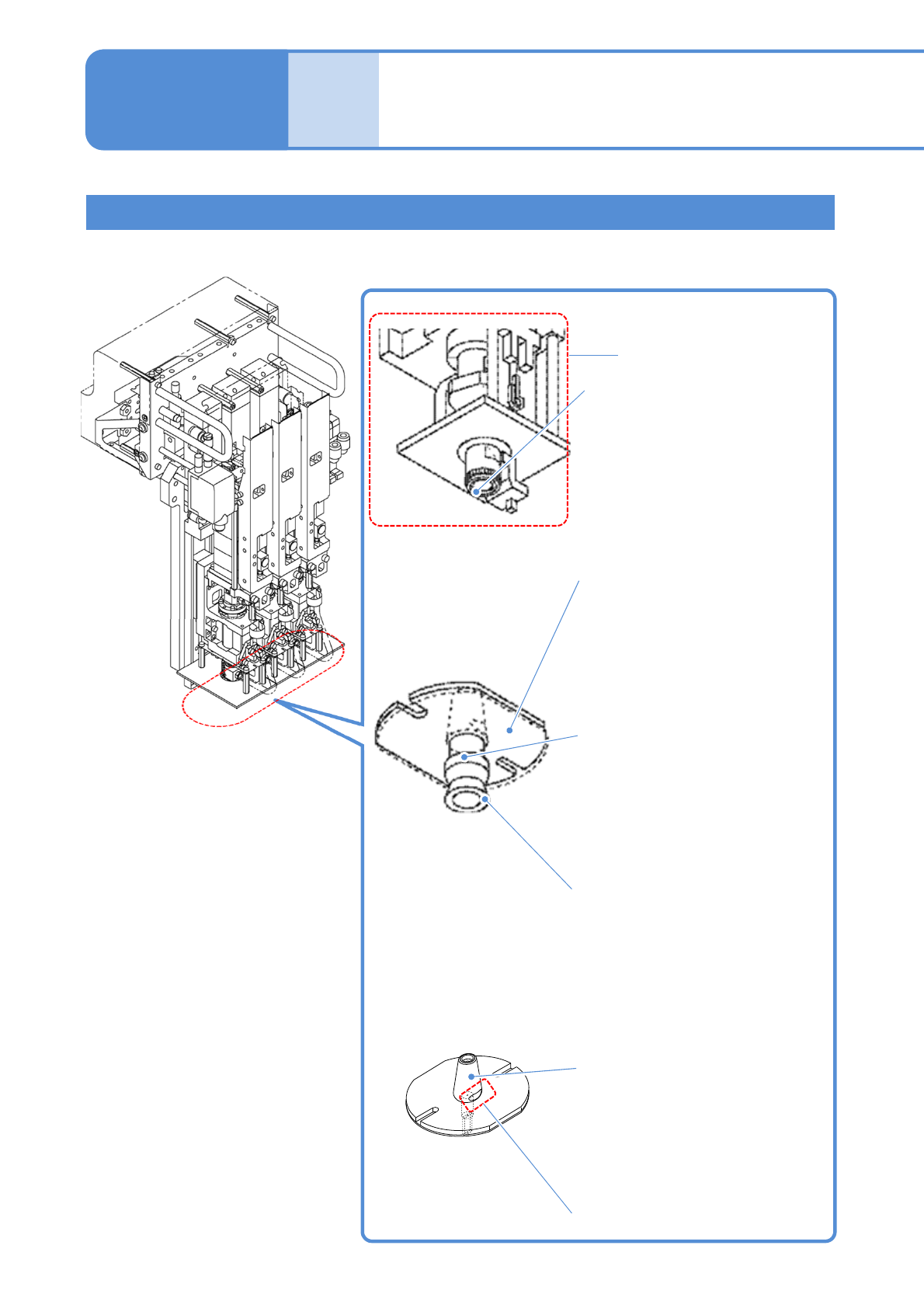

Cleaning parts
Nozzle holder taper surface
(If dust settles, it could cause a
pickup error or affect placement
accuracy due to air leaks caused
by the nozzle holder taper surface
that cannot keep in absolute
contact with the nozzle taper
surface while the nozzle is
securely fixed in place)
Nozzle reflector
●The reflector, made of black-
resin, is covered with special
coating that helps prevent
scratches. It recognizes
components by reflecting LED
light. (If dust settles, it could
cause recognition errors)
Pickup pad
●For the purpose of achieving
more stable pickups, the rubber
pad is attached to the nozzle tip.
(Cracks in the pickup pad could
cause a pickup error due to air
leaks)
Nozzle tip (Nozzle section)
●Picks up components.
(If dust settles on the side of the
tip, it could casts a shadow
during recognition, thus causing
a recognition error. And also, if
dust settles on the pickup hole,
it could cause a pickup error)
Nozzle taper surface
●The part that is grasped in the
chuck of the transfer head’s
nozzle holder. (If dust settles on
the taper surface and the
chucking groove, it could cause
air leaks or chucking problem)
5-2-1
Nozzle holder
Chucking groove
