NPM-W 2 EJM7DE-MB-05 M-00 Maintenance 5-2 Cleaning the no zzle holder 2 (3-nozzle head (option)) 5-2 -3 8 Remove the nozzle filter Nozz le holder Spanner (7 mm) (for rotation stop ) Allen wrench Nozzle filter Nozzle filt…
NPM-W2 EJM7DE-MB-05M-00
5-2-2

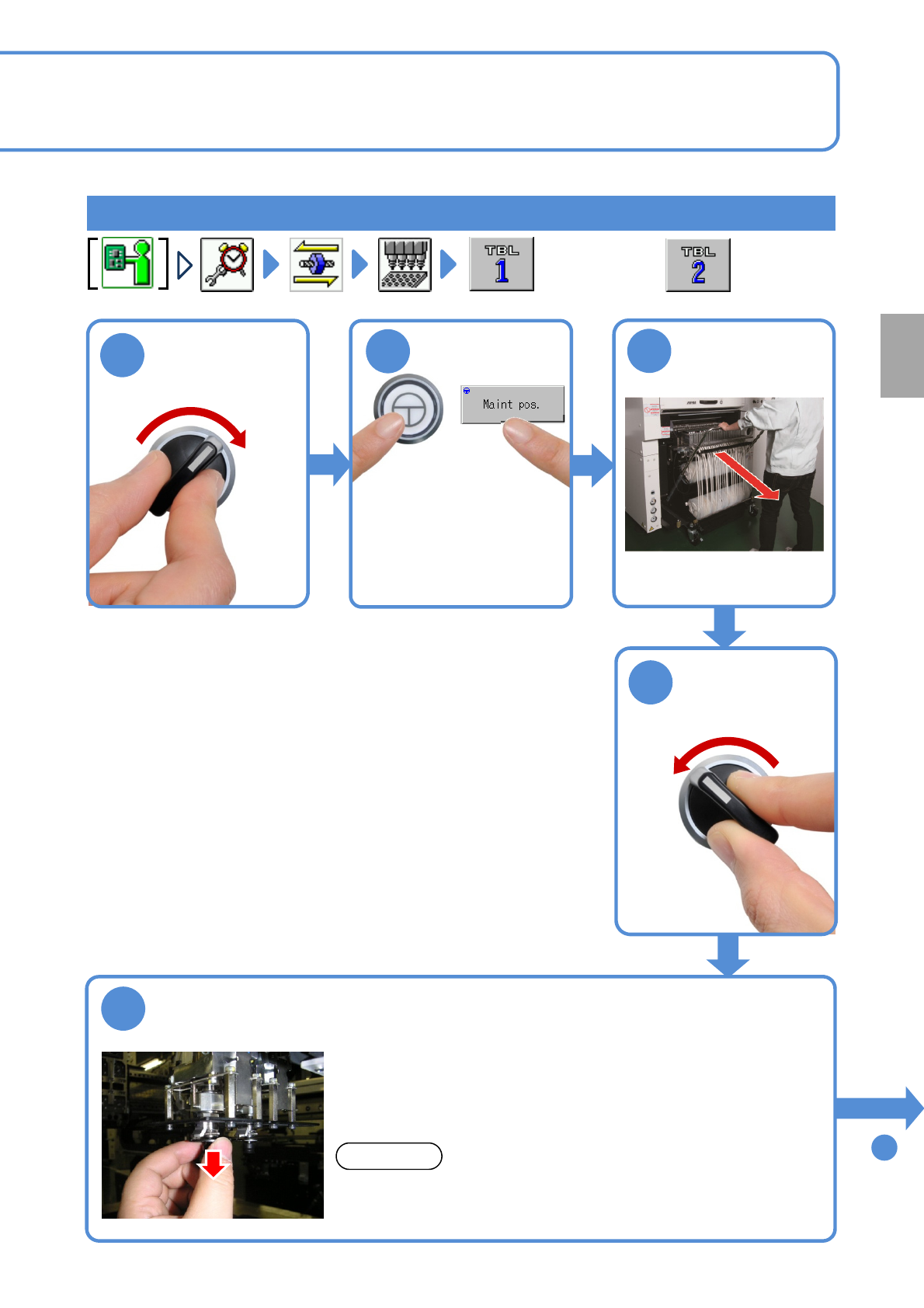

Removing the nozzle
●For the rear,
Remove the nozzle
●Pull it straight out. If pulled out at an angle, the clamp claws could
be damaged.
NOTICE
●Work at the front side for front feeder cart specification and rear tray
feeder specification.
●Work at the rear side for rear feeder cart specification.
●Move the head to the position where your workability enhances.
●Hold and pull down the edge of the nozzle reflector.
To
8
●Y-axis of the front head
moves to the front side.
●For feeder cart specification,
Y-axis of the rear head
moves to the rear side, and
for tray feeder specification,
it moves to the front side.
5
2
SERVO
ON
1
OFF
SERVO
4
3
Detach the
feeder cart
(→P.3-2)
Every
140
hours
PeriodicPeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-05M-00
Maintenance
5-2
Cleaning the nozzle
holder 2 (3-nozzle head (option))
5-2-3
8
Remove the nozzle filter
Nozzle holder
Spanner (7 mm)
(for rotation stop)
Allen wrench
Nozzle filter
Nozzle filter
Allen wrench: Turn it
counterclockwise as
viewed from below
Cleaning the nozzle holder
6
Clean the nozzle holder taper surface
Nozzle holder
taper surface
Absolute alcohol-
dampened swab
7
●Wipe off grease adhering to any
parts other than the oil groove with
a cotton swab.
Lubricate the oil groove with
grease
Clamp claw
Oil groove (1 location)
●Grease: BARRIERTA IEL/V
NPM-W2 EJM7DE-MB-05M-00
5-2-4
9
Clean with an air
blow gun
10
Attach the nozzle filter
Spanner (7 mm)
(for rotation
stop)
●The filter is small, so be careful
not to drop it.
●Spread cloth over the machine in
advance to prevent the filter from
dropping inside the machine.
●If you cannot remove dust, replace
the filter.
Filter No.: N610009394AB
Nozzle holder
Allen wrench
Nozzle filter
Nozzle filter
Allen wrench:
Turn it clockwise
as viewed from
below.
To
11
Nozzle filter
Air blow
gun (tip)
●Blow in the opposite
direction of the Allen
wrench insertion. The
filter is small so ensure
that it is not blown off.
Every
140
hours
PeriodicPeriodicPeriodic
inspection
