NPM-W2 EJM7DE-MB-05M-00
Cleaning the feeder table
(feeder cart, 13-slot feeder (option))
Maintenance
5-5
5-5
1
2
4
5
3
Clean the feeder table
●Clean the feeder installation face after removing tape feeders.
(A cause of deformation in the feeder cart.)
●Clean the feeder table using a
vacuum cleaner or brush.
●Do not use an air blow gun in cleaning.
(A foreign body including dust could scatter inside the machine,
thus worsening placement quality, or breaking down the
machine.)
Describes cleaning of the feeder table
Tool used: Vacuum cleaner, brush Time required: 15 minutes per location
Feeder table
■13-slot feeder
■Feeder cart
OFF
SERVO
SERVO
ON
NPM-W2 EJM7DE-MB-05M-00
5-6

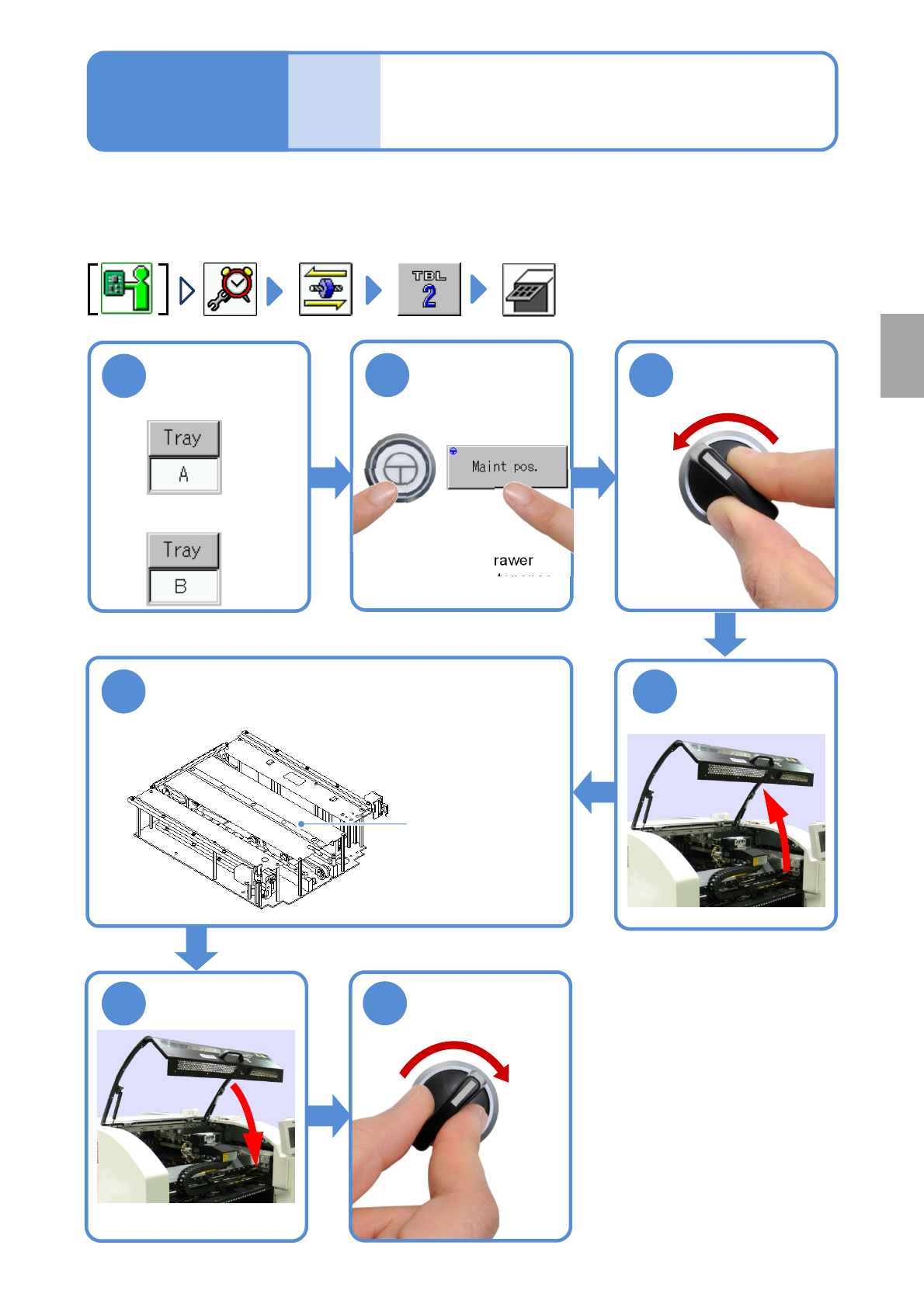

Cleaning the table
surface
(tray feeder drawer (option))
Maintenance
5-6
Describes cleaning of the table surface of the tray feeder drawer.
Tool used: Lint free cloth Time required: 5 minutes
●Before cleaning it, ensure that the magazine is removable. (→P.6-14)
OFF
SERVO
SERVO
ON
6
7
1
32
4
5
For the twin tray
feeder, choose
the table
or
ENABLING
(The tray feeder drawer
moves to the maintenance
position)
Clean the table surface
●Wipe off with a soft lint free cloth.
Tray feeder drawer
table surface
Every
140
hours
PeriodicPeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-05M-00
5-7
●Remove the calibration jig out of the
machine; then, using the supplied
blower brush, remove dust from the
gray-colored acrylic calibration plate,
the light-colored acrylic calibration
plate, and the glass calibration plate.
●After cleaning, put the calibration jig
back in its original position.
●Do not touch the surface with figures.
(If it may get damaged or stained,
there is a possibility of poor
calibration)

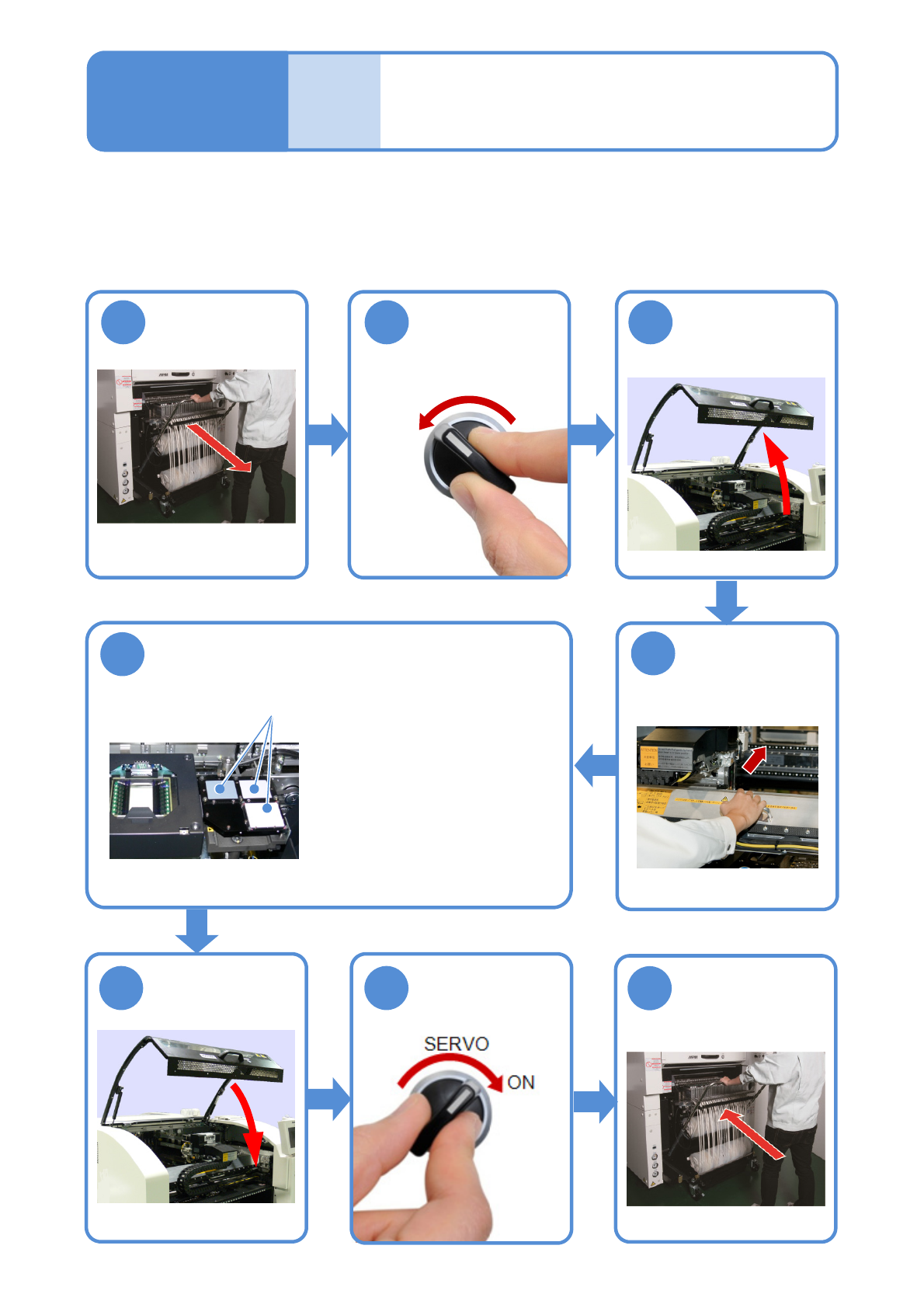

Cleaning the calibration
jig
(2D inspection head (option))
Tool used: Blower brush Time required: 1 minute
Describes cleaning of the 2D inspection calibration jig (option).
Maintenance
5-7
Clean the calibration plates with the blower
brush
Detach the
feeder cart
(→P.3-2)
Attach the
feeder cart
(→ P.3-2)
Push the X-axis
inward
8
4
OFF
SERVO
1 2 3
5
6 7
Calibration jigs
