NPM-W 2 EJM7DE-MB-06 M-00 6-1 -1 Detach the feeder cart ( → P.3-2) ENABLING ● Confirm there is no support pin s befor e work. Maintenance 6-1 Gr easing the PCB con v eyor 1 Describes the method for greasing the PCB conve…

100%1 / 572
6 Periodic inspection
Every-560-hours
NPM-W2 EJM7DE-MB-06M-00
6-1-1

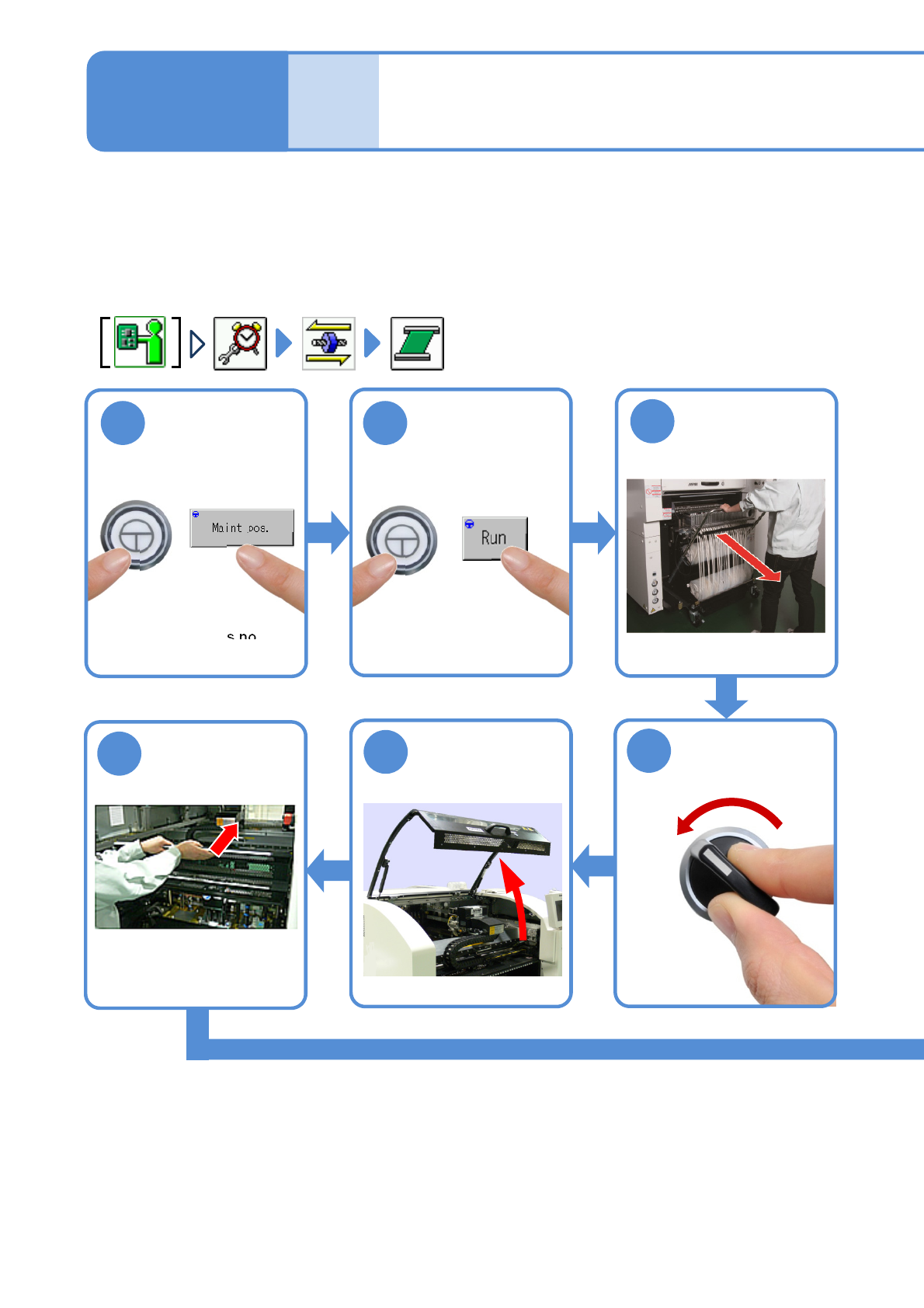

Detach the
feeder cart
(→P.3-2)
ENABLING
●Confirm there is no
support pins before work.
Maintenance
6-1
Greasing the PCB
conveyor 1
Describes the method for greasing the PCB conveyor.
Tool used: Grease gun, Time required: 20 minutes
●Apply grease to the width-adjustment ball screws, linear guides and ball spline of the PCB conveyor.
●It describes at the feeder cart side. The tray feeder must be disconnected before work. (→ P.14-8)
●This work should be performed in the dual lane mode. (→ P.11-3-1)
1
5
2
OFF
SERVO
3
4
ENABLING
6
Confirm the
message
Fold the feeder
table cover to
the back
●Neither lean against the
feeder table cover nor place
anything on it.
NPM-W2 EJM7DE-MB-06M-00
6-1-2
To
8
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
7

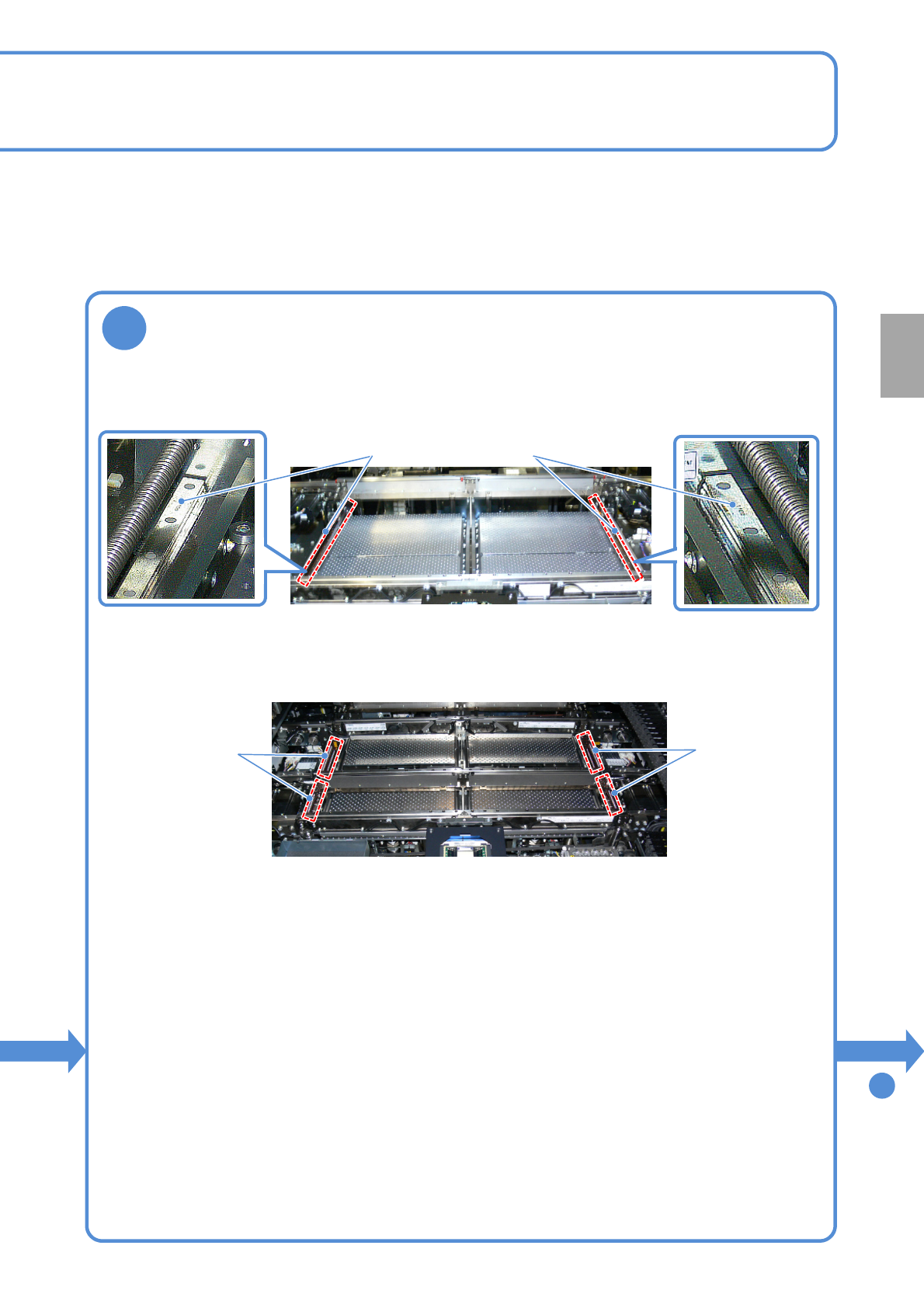

Apply grease to the linear guides and ball splines
Linear guideLinear guide
■Single conveyor
■Dual conveyor
Linear guide
Linear guide
●Apply grease directly the linear guide rail.
●Grease: LCG100
