NPM-W 2 EJM7DE-MB-06M-00 6-1 -3 Gr easing the PCB con v eyor 2 Maintenance 6-1 Grease nipple 8 Apply grease to the width-adjustment ball screw from grease nipple ● Apply grease via each grease nipple (on the movable rail…
NPM-W2 EJM7DE-MB-06M-00
6-1-2
To
8
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
7
Apply grease to the linear guides and ball splines
Linear guideLinear guide
■Single conveyor
■Dual conveyor
Linear guide
Linear guide
●Apply grease directly the linear guide rail.
●Grease: LCG100
NPM-W2 EJM7DE-MB-06M-00
6-1-3
Greasing the PCB
conveyor 2
Maintenance
6-1
Grease nipple
8

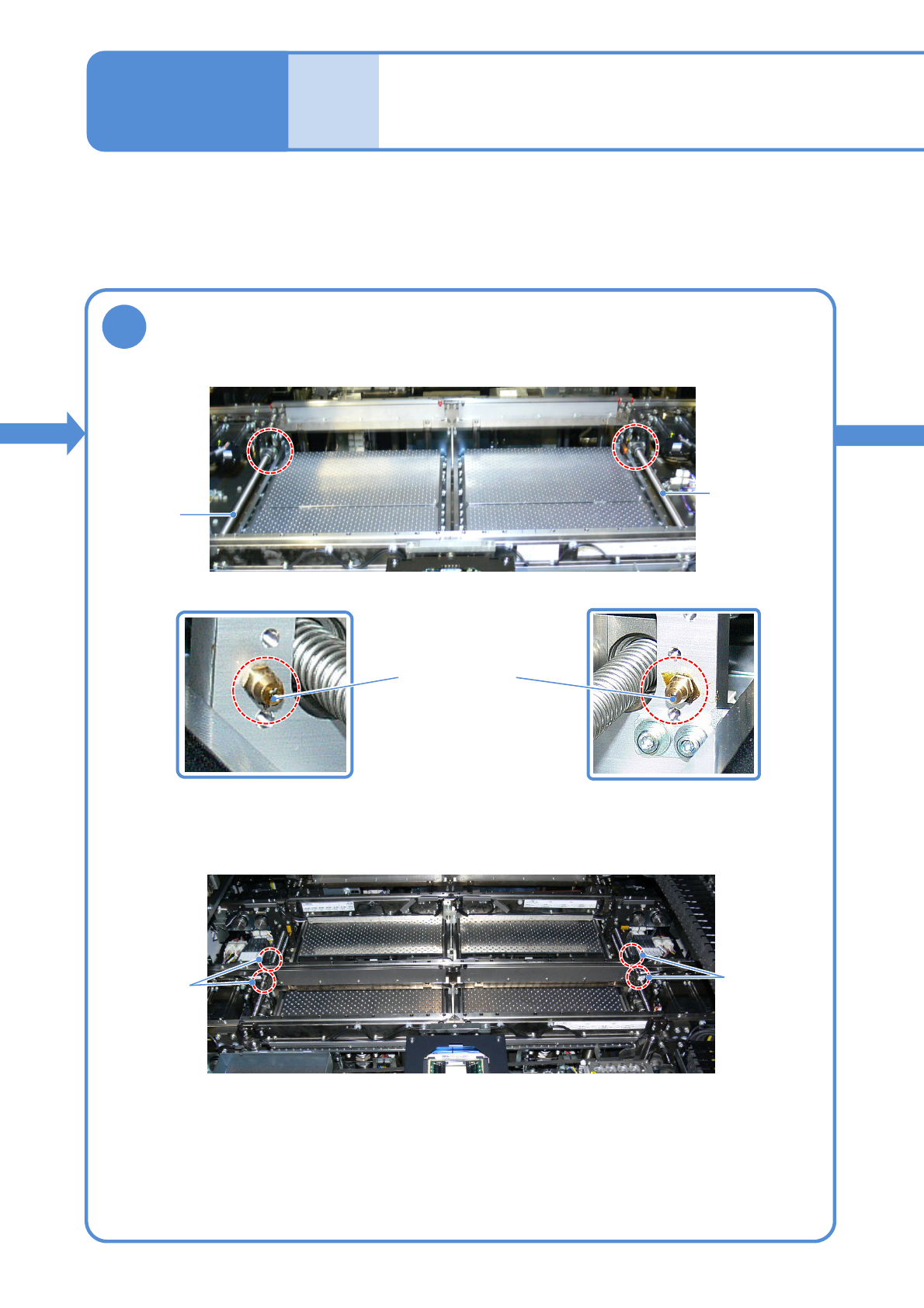

Apply grease to the width-adjustment ball
screw from grease nipple
●Apply grease via each grease nipple (on the movable rail) with the grease gun.
(2 locations on each lane) (about 0.9 cm
3
per pump)
●Grease: LCG100
Width-
adjustment
ball screw
Width-
adjustment
ball screw
■Single conveyor
■Dual conveyor
Width-
adjustment
ball screw
Width-
adjustment
ball screw
NPM-W2 EJM7DE-MB-06M-00
6-1-4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection

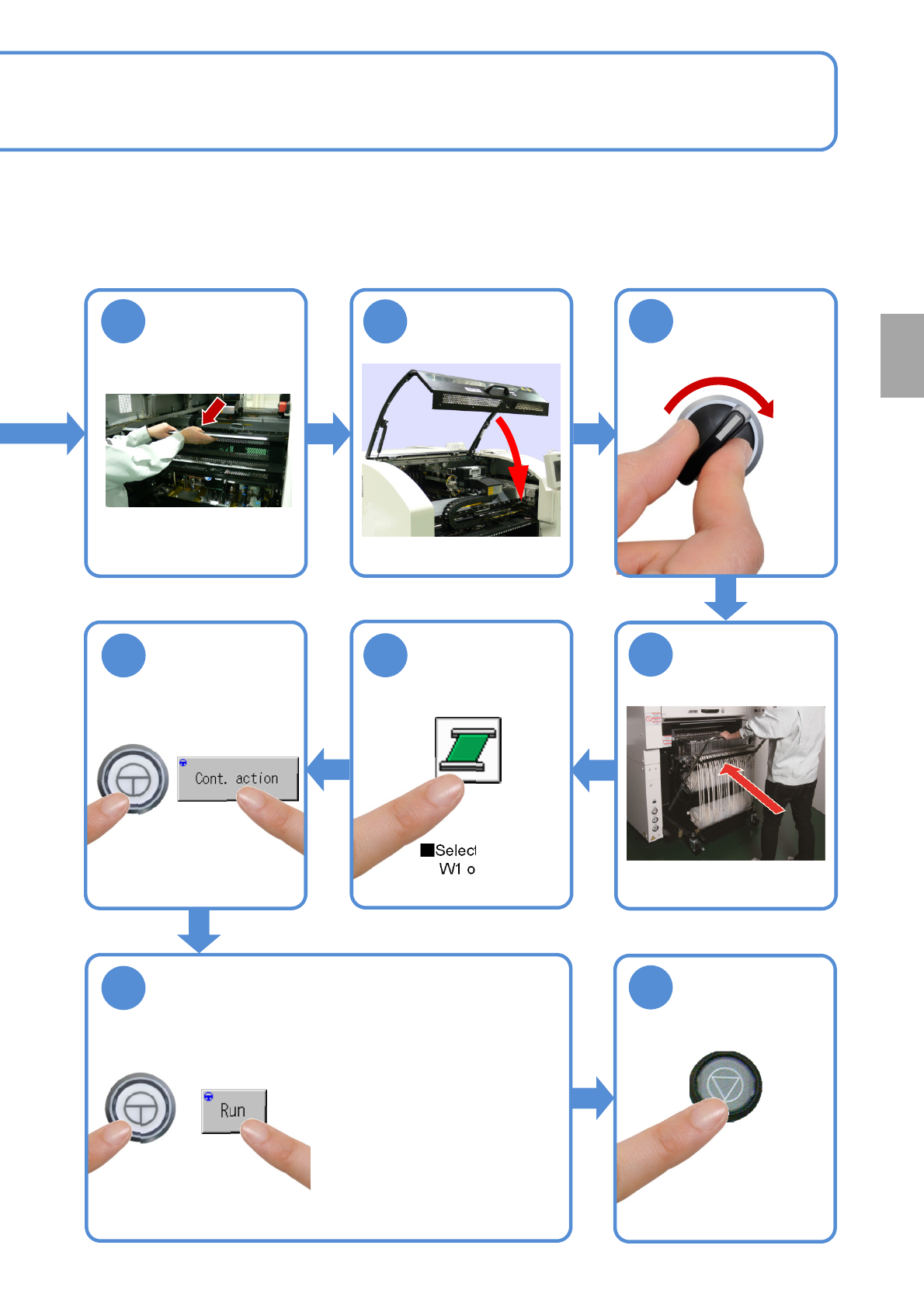

■Select a lane;
W1 or W2
Attach the
feeder cart
(→P.3-2)
STOP
ENABLING
SERVO
ON
ENABLING
●Make sure that there is no pin on
the PCB plate.
●Continuously moves the width
adjustment axis of the transfer
conveyor at least five round.
Confirm the message
Return the
feeder table
cover back
16
15
14
12
13
9
11
10
