NPM-W 2 EJM7DE-SF-01N-0 0 ON OFF ON OFF OFF ON Observe the following when placing any part of your body into a moving part of the machine (Risk of electric shock/Risk of in jur y if the machine is actuated) Please handle…
NPM-W2 EJM7DE-SF-01N-00
1-1-3
Do not disable safety
switches
(Risk of injury)
Safety precautions 2
1-1
DANGER
Safety switch
(Under rear feeder
table cover)
Do not disable safety
switches
(Risk of injury)
Replenish-section
open/close switch
●It has a function of
safety switch
●Installed under the
cover
Safety switch
(In the magazine
door)
Single tray feeder Twin tray feeder
Safety switch
(Under front feeder
table covers)
Safety switches
(Under rear safety cover)
Safety switches
(Under front safety cover)
●When safety switches on safety convers
are activated during operation , the
machine stops.
NPM-W2 EJM7DE-SF-01N-00
ON
OFF
ON
OFF
OFF ON

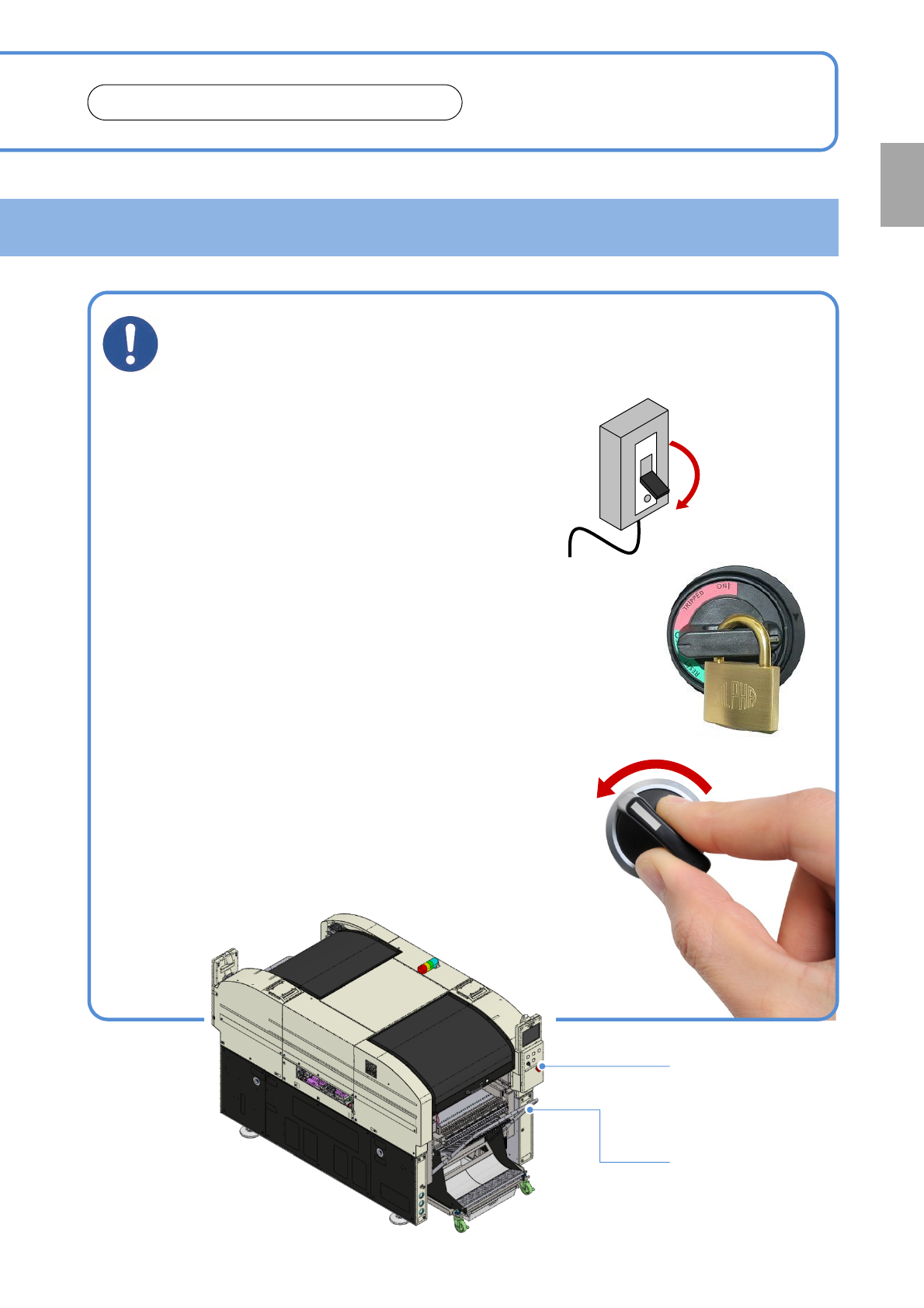

Observe the following when placing any part
of your body into a moving part of the machine
(Risk of electric shock/Risk of injury if the machine is actuated)
Please handle according to your task.
●When repairing control units
→Cut off the power supply of the factory that
the machine is connected to.
●When performing periodic inspection or exchanging
control parts such as consumable parts, sensors or
head units
→Turn off the main power supply switch and lock out
the machine.
●When performing changeovers or daily
maintenance, installing nozzles to the nozzle changer,
placing a PCB on or removing it from the conveyor,
performing maintenance of the inside of the machine
→Turn off the servo switch and open the safety cover.
1-1-4
Be sure to observe the following
Confirmation
Servo switch
(Located in front and
rear)
Main power switch
(Located in front)
NPM-W2 EJM7DE-SF-01N-00
1-1-5

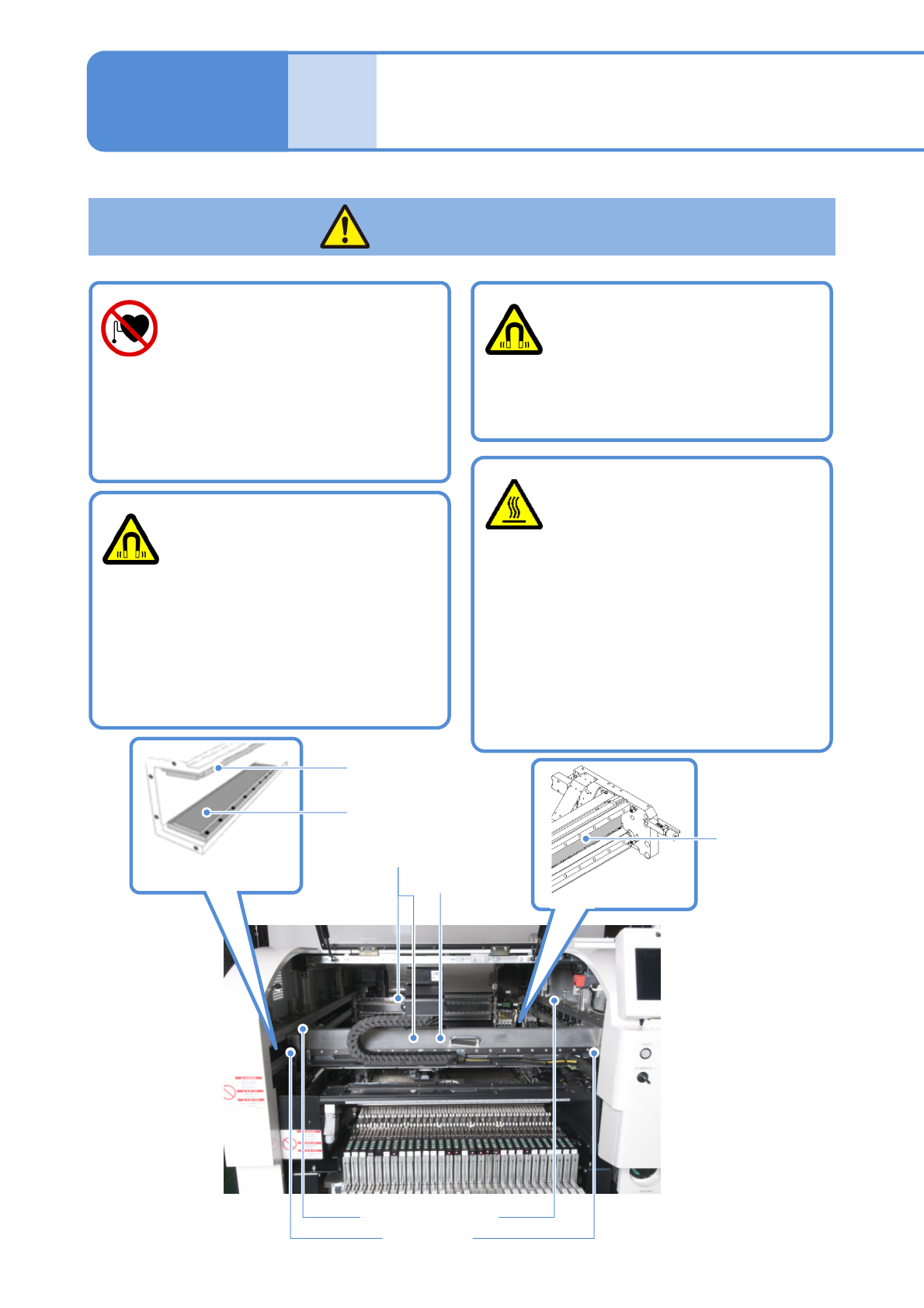

Individuals with
pacemakers should
keep away from the
linear motor
(Risk of injury)
Do not
disassemble the
linear motors
(Risk of injury due to strong attraction of
stators: magnets)
Be careful not to
touch the linear
motor’s mover
(Risk of burn)
●The temperature of the mover rises
high (80 C in a temperature of 25C,
90 C in a temperature of 35 C.)
●After shutdown, it may need three
hours or more before they reach room
temperature.
Do not wear or
approach any
metal during work
(Risk of injury when your hands are
pinched or pulled in due to the strong
magnetic force of the linear motor)
●Pierced earrings , necklaces, watches
and tools
These are what should be followed when handling the linear motor.
Safety precautions 3
1-1
DANGER
Y-axis linear motor
X-axis linear motor
Y-axis upper stator
(magnet)
Y-axis lower stator
(magnet)
X-axis stator
(magnet)
●In right and left
●In front and rear
Mover
Mover
