NPM-W 2 EJM7DE-MB-06 M-00 6-17 -2 1 Apply grease to the guide block ● Apply grease to the guide block via the grease nipple. (two locations) (Use the grease gun. About 0.9 cm 3 per pump) Grease: LCG100 Tool used: Grease …
NPM-W2 EJM7DE-MB-06M-00
Attach the
feeder cart
(→P.3-2)

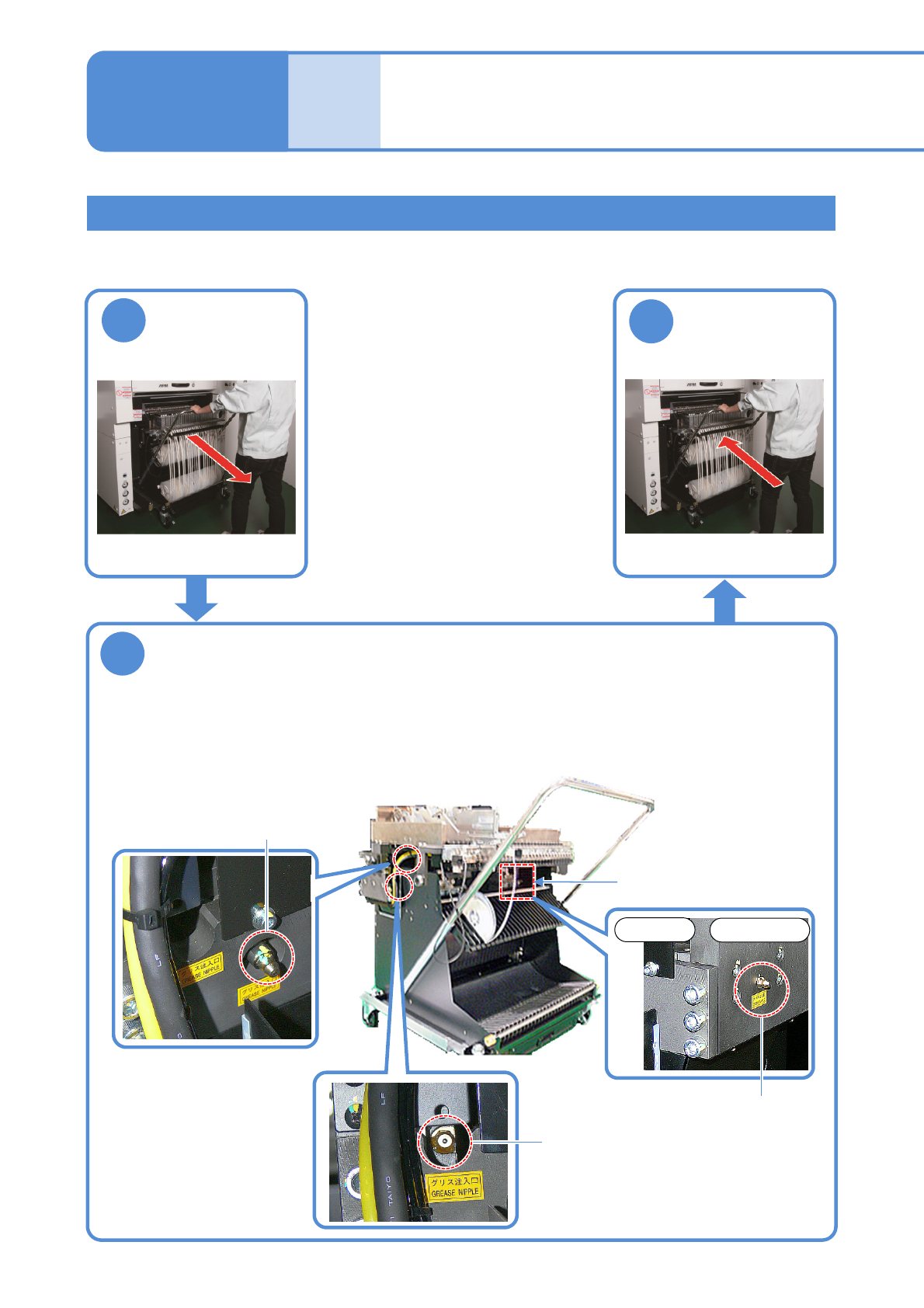

Greasing the cutting
unit
6-17-1
Tool used: Grease gun Time required: 3 minutes
1
2
Apply grease to the linear guides, bearings and guide blocks
●Apply grease via the grease nipple. (three locations)
・Linear guide
・Bearing
・Guide block
(Use the grease gun. About 0.9 cm
3
per pump)
●Grease: LCG100
3
Detach the feeder
cart
(→P.3-2)
Grease nipple
Feeder cart (option)
Grease nipple
Grease nipple
Front
Right side
Right side greasing point
Maintenance
6-17
NPM-W2 EJM7DE-MB-06M-00
6-17-2
1
Apply grease to the guide block
●Apply grease to the guide block via the grease nipple. (two locations)
(Use the grease gun. About 0.9 cm
3
per pump)
Grease: LCG100
Tool used: Grease gun Time required: 3 minutes
13-slot feeder unit (option)
Grease nipple
Grease nipple
Guide block
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-06M-00
6-18-1
Maintenance
6-18
Attach the feeder
cart
(→ P.3-2)
8

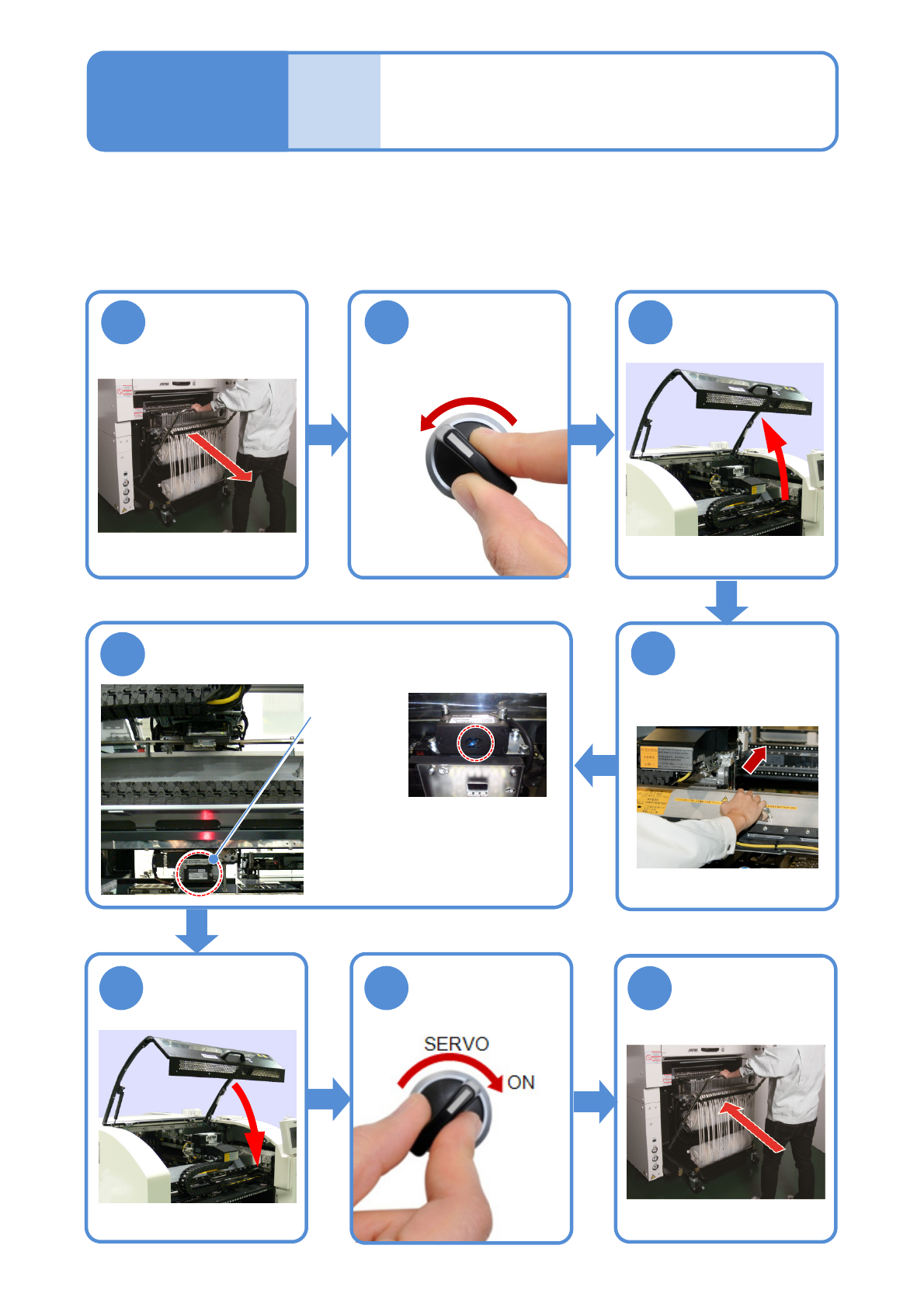

Cleaning the light-emitting
and light-receiving sections
(height sensor(option))
3
Cleaning the light-emitting and
light-receiving sections
●Wipe off with a soft lint free cloth.
(If this part gets scratched, the
height sensor may not function
properly)
Describes cleaning of the light-emitting and light-receiving sections of the height sensor (option).
Tool used: Lint free cloth, Time required: 5 minutes per location
4
Push the Y-axis
beam inward
OFF
SERVO
1 2 3
Detach the
feeder cart
(→P.3-2)
5
6 7
(Picture seem from below)
Light-emitting
and light-
receiving
sections
