NPM-W2 EJM7DE-MB-06M-00
6-18-2
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-06M-00
6-19-1

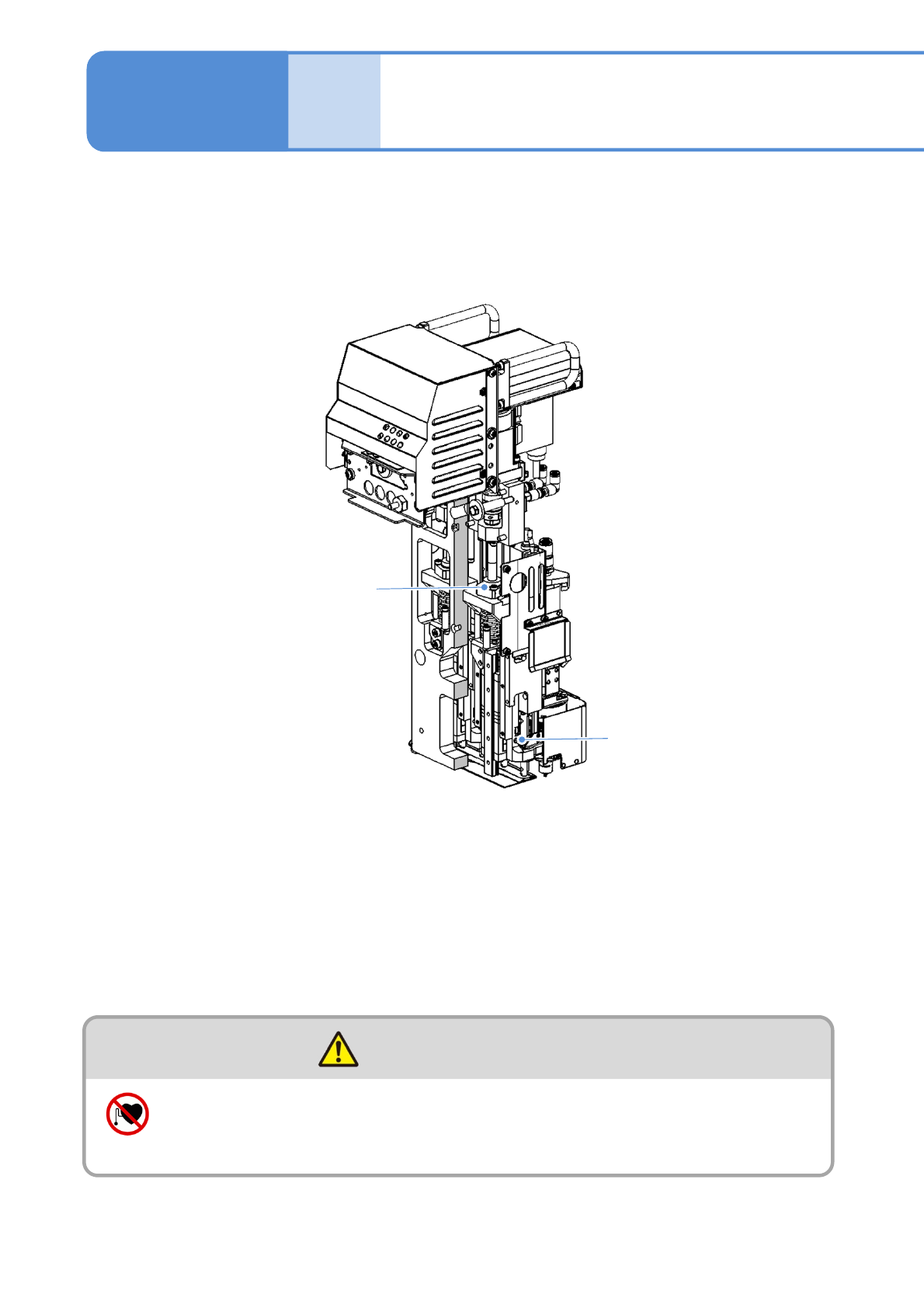

Greasing the
dispensing head (option) 1
Maintenance
6-19
Describes how to grease to the ball screw and the linear guide on the dispensing head.
Tool used: Grease gun, lint free cloth, gloves Time required: 30 minutes (per location)
Ball screw greasing point
Linear guide greasing point
●A part of the model is omitted for explanations.
Personnel with pacemakers should keep away from the linear
motor
(Risk of accidents caused by errors in operation due to magnetic force)
WARNING
NPM-W2 EJM7DE-MB-06M-00
6-19-2
To
8
●Remove the syringe part before work. (→P.4-2-5)
●Wipe away old grease off
the ball screw and linear
guide using a clean lint
free cloth.
Wipe away old
grease
Apply grease from
the grease nipple of
the ball screw
4
1
OFF
SERVO
3
7
6
2
5
ENABLING
Detach the
feeder cart
(→P.3-2)
Detach the feeder table cover
(→P.3-3)
Grease nipple
●Apply grease each axis of
pos.1 and pos.2.
●Amount: 0.3 cm
3
each.
●Grease: LCG100
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
●If it is difficult to perform the
work, remove the feeder table
cover.
●Neither lean against the feeder
table cover nor place anything
on it.
