NPM-W 2 EJM7DE-MB-06M-00 Every 560 hours Periodic Periodic Periodic Periodic inspection 6-22 -2 Clean the cable bear on the X-axis 4 ● Move the placement head in the X- direction and wipe off any adhesion on the cable be…
NPM-W2 EJM7DE-MB-06M-00
Maintenance
6-22
Cleaning the XY-axis
cable bearer
1
OFF
SERVO
3
2
9
7
SERVO
ON
8
6
6-22-1
Detach the feeder
cart
(→P.3-2)
Attach the
feeder cart
(→P.3-2)
Describes how to clean cable bears on the X-axis and Y-axis.
Tool used: Lint free cloth
Time required: 10 minutes
Move the placement head
and X-beam to the
position where they do
not hit the mechanical
stopper
NPM-W2 EJM7DE-MB-06M-00
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
6-22-2

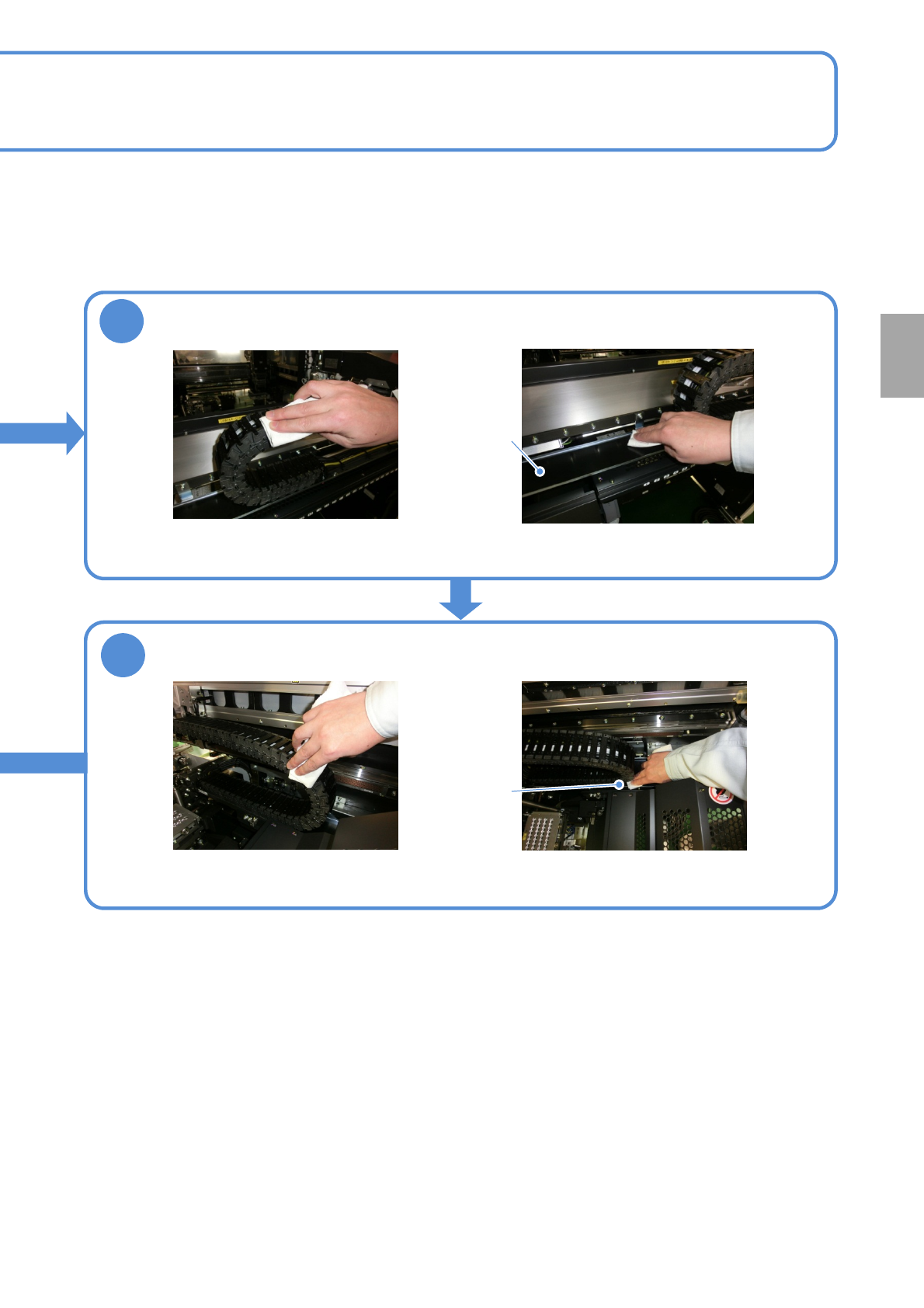

Clean the cable bear on the X-axis
4
●Move the placement head in the X-
direction and wipe off any adhesion on the
cable bear using a lint free cloth.
●Move the placement head to the right and
wipe off any dust on the bracket using a
lint free cloth.
5
Clean the cable bear on the Y-axis
●Move the X-axis beam in the Y-direction
and wipe off any adhesion on the cable
bear using a lint free cloth.
●Push the X-axis beam inward and wipe off
any dust on the bracket using a lint free
cloth.
Bracket
Bracket
