NPM-W 2 EJM7DE-MB-07 M-00 To 5 7-1 -4 4 Pull the nozzle out Nozz le holder Nozzle ● Pull it straight out. If pulled out at an angle, the clamp claws could be dam aged. NOTICE 3 Detach the nozzle holder ● Turn the nozzle …
NPM-W2 EJM7DE-MB-07M-00
Cleaning the nozzle holder 2
(Light weight16-/12-/8-nozzle head(option))

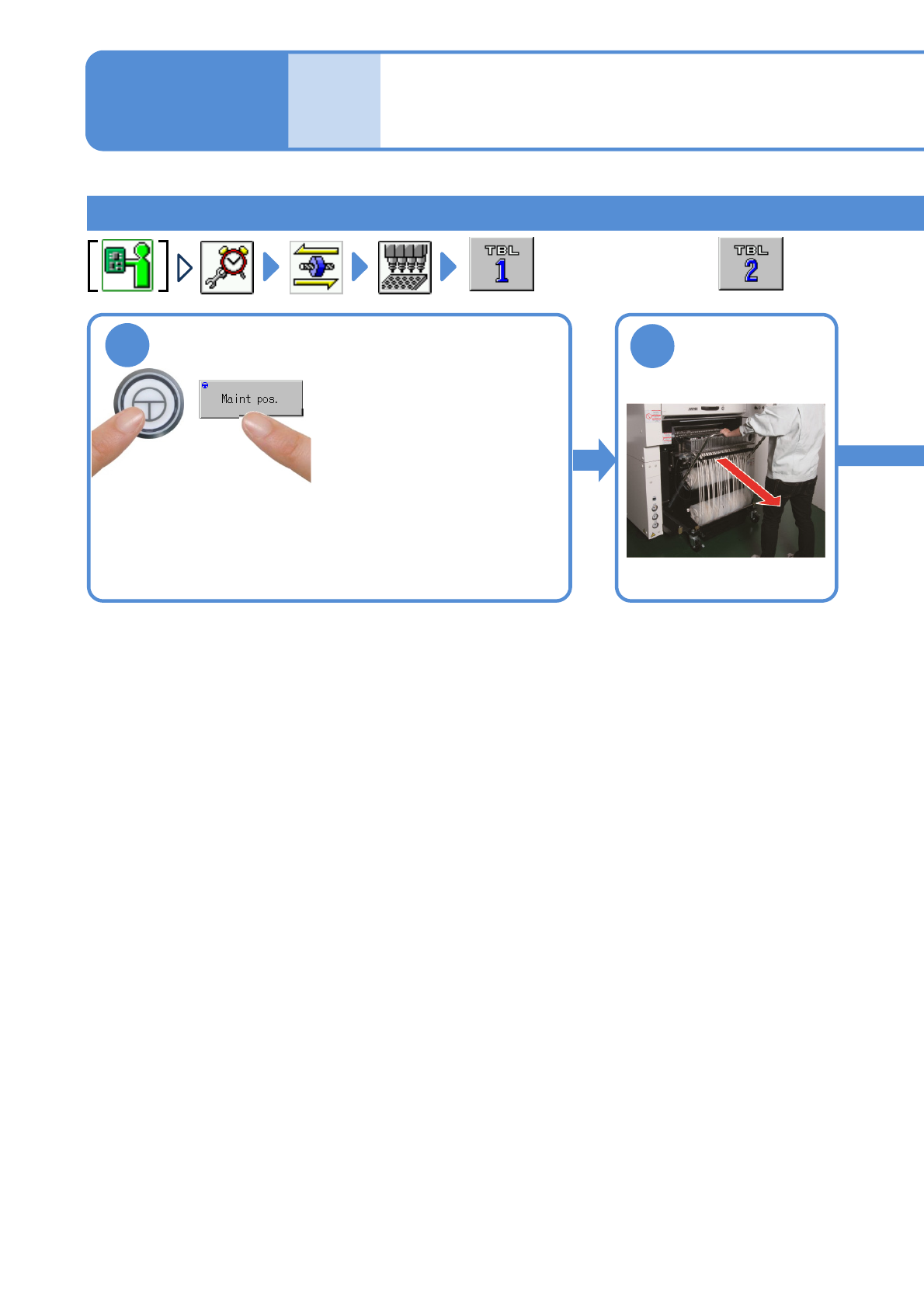

Detaching the nozzle holders
7-1-3
Maintenance
7-1
●For the rear side,
1
●Y-axis of the front placement
head moves to the front side.
●For feeder cart specification,
Y-axis of the rear placement
head moves to the rear side,
and for tray feeder
specification, it moves to the
front side.
Detach the
feeder cart
(→P.3-2)
2
NPM-W2 EJM7DE-MB-07M-00
To
5
7-1-4
4
Pull the nozzle out
Nozzle holderNozzle
●Pull it straight out. If pulled out at
an angle, the clamp claws could
be damaged.
NOTICE
3

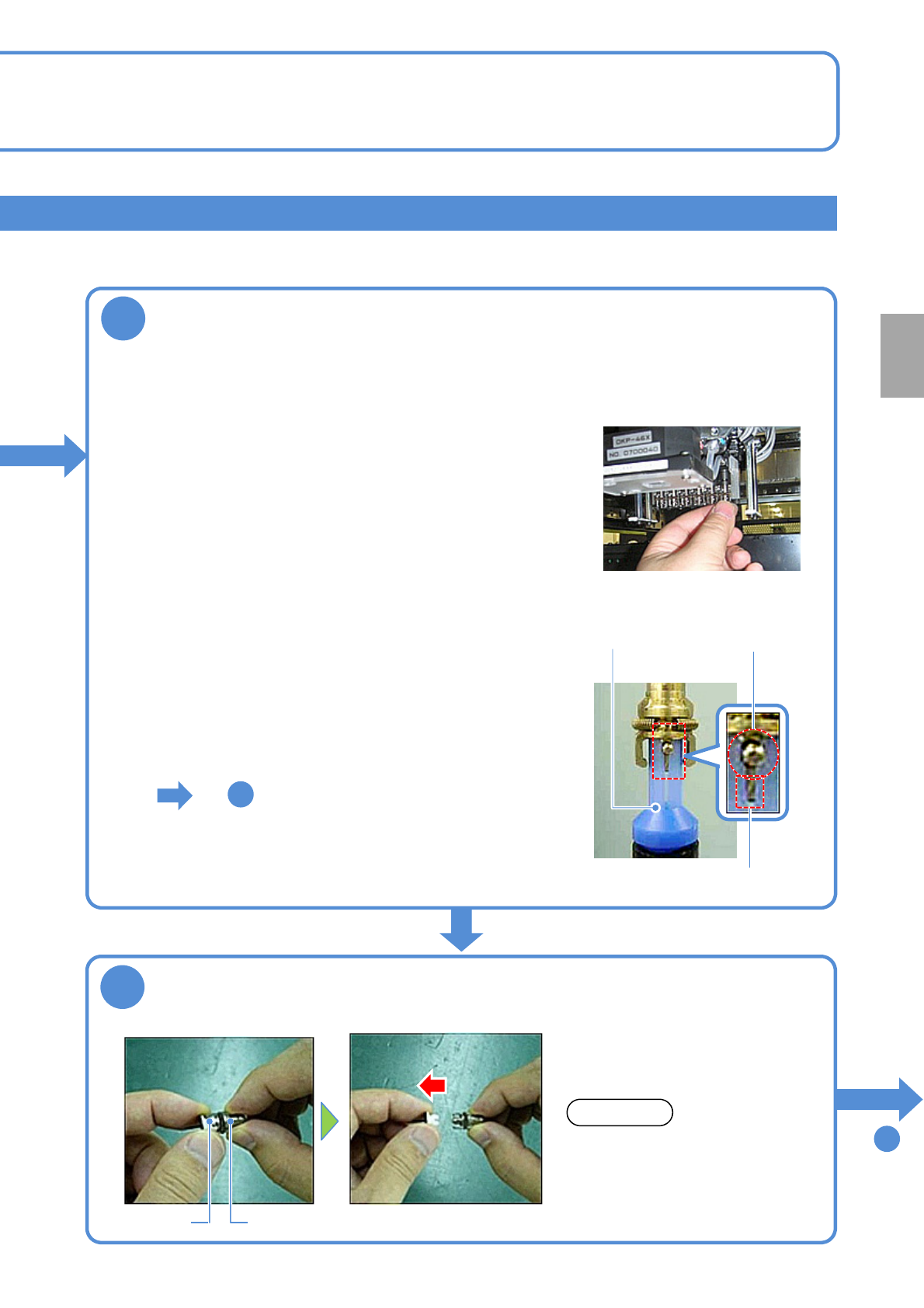

Detach the nozzle holder
●Turn the nozzle clockwise as viewed from below while
pushing up it.
●Be careful not to let the nozzle cushion use spring pop out.
●The spring for holding clamp claws can be easily
deformed so you should avoid pressing it tightly with your
fingers.
●Follow the same procedure to detach all nozzle holders
from the transfer head.
■With nozzles attached
●Use the nozzle holder shaft cleaning tool (option).
●Align the groove on the 12-nozzle cleaning side with the
positioning pins of the nozzle holder.
●Turn the nozzle clockwise as viewed from below while
pushing up the cleaning tool.
■Without nozzles attached
Positioning pin
Cleaning tool
Groove
5
To
●Move the head to the position where your workability enhances.
●Work at the front side for front feeder cart specification and rear tray feeder specification.
●Work at the rear side for rear feeder cart specification.
Every
1000
hours
PeriodicPeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-07M-00
Model Model No. Remarks
BB-001:for 12-nozzle head and 8-nozzle head
BB-002:for light weight16-nozzle head式
BB-001 : N510058057AA
BB-002 : N510058058AA
BB-001: 5 000 pieces
BB-002: 6 250 pieces
You can also purchase
these items from;
Sanyo Co., Ltd.
Phone number: +81-721-
24-3376
P753S-A:for 12-nozzle head and 8-nozzle head
P752S:for light weight16-nozzle head
P753S-A : N510058942AA
P752S : N986P752S
P753S-A : 2 500 pieces
P752S : 200 pieces
5
Clean the nozzle holder
Nozzle holder
●Wipe it clean a few times
and then leave it to dry.
NOTICE
●Do not wipe the nozzle holder tip (filter) and the spring for
holding clamp claws, with a cotton swab.
Cleaning the nozzle holder
Cleaning the nozzle holder 3
(Light weight16-/12-/8-nozzle head(option))
Maintenance
7-1
7-1-5
Spring for holding
clamp claws
Tip of nozzle holder
(filter)
A
B
●Clean only the parts A and B (the hole area of the nozzle
holder). Otherwise, the filter may get clogged with dust, or
wiping off grease can cause the spring to get rusted.
6
Clean the taper
face and the
clamp claw tip
Alcohol-dampened baby
cotton swab
Alcohol-dampened baby
cotton swab
Use the following industrial swabs for precision machine for cleaning.
NOTICE
