NPM-W 2 EJM7DE-MB-09 M-00 Hinge Dispensing part A ppl ying g rease to the hinge (touchscreen) 9-2 Maintenance 9-2 Tool used: None Time required: 1 minutes 1 T ilt the touchscreen forward 3 Spread the lubricant ● Apply gr…
NPM-W2 EJM7DE-MB-09M-00
Inspecting the
backlight
(touchscreen)
9-1
Maintenance
9-1
Tool used: None Time required : 2 minutes
●Confirm whether to view the touchscreen clearly.
●Please contact us for component replacement.

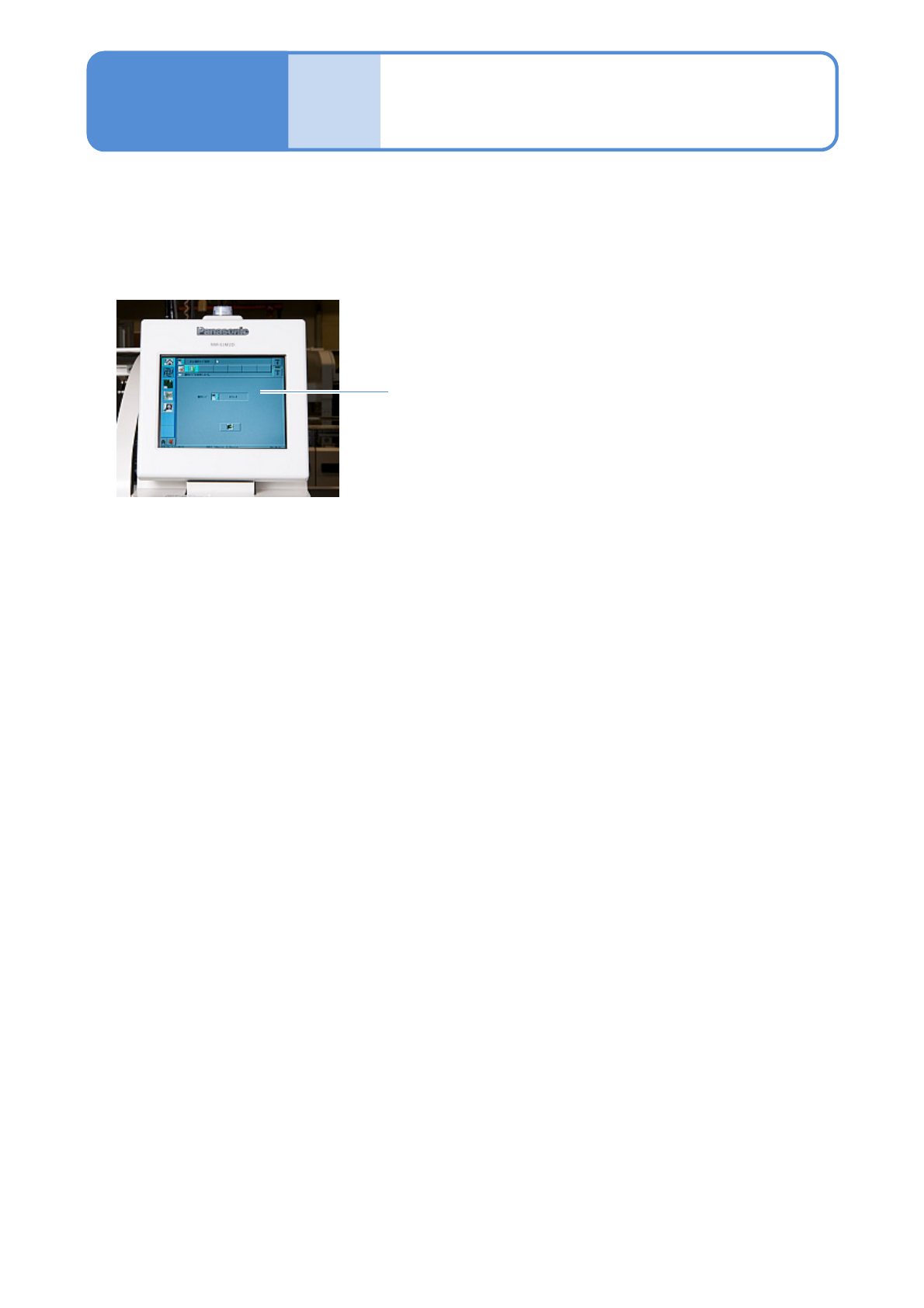

Touchscreen
NPM-W2 EJM7DE-MB-09M-00
Hinge
Dispensing part
Applying grease to the
hinge (touchscreen)
9-2
Maintenance
9-2
Tool used: None Time required: 1 minutes
1
Tilt the touchscreen
forward
3
Spread the lubricant
●Apply grease to the hinge at the back side of the touchscreen on the front and rear machine.
The touchscreen could be hard to move, apply grease regardless of maintenance period.
●Move the touchscreen back
and forth several times.
No.
Type Manufacturer
15-56
KURE Engineering Ltd.
2 WD-40 WD-40 Company
3
N990PANA-028
(TOUCH LUBE)
Panasonic Factory
Solutions Co., Ltd.
*The following hydrocarbon lubricant
should be used.
2
Apply applicable amount of lubricant to the hinge
Every
6000
hours
Periodic
Front side
Front side
PeriodicPeriodicPeriodicPeriodicPeriodic
inspection
NPM-W2 EJM7DE-MB-09M-00
Inspecting the 1006
nozzle (option)
Maintenance
9-3
Tool used: None Time required: 1 minute
Clamp groove
●Confirm whether clamp grooves wear out or not.
(To prevent from decreasing clamping force after long time use)
●Replace it after 6000 hours (a year) or 700000 times of automatic nozzle changer of operation. It is
recommended that you stock spare nozzles.
9-3
