NPM-W 2 EJM7DE-MB-10 M-00 R eplacing the spring 3 (dispensing head(option)) 10-3 -4 Tool us ed: Spanner Time required: 1 0 minutes ● Be sure to replace it at the consumab le parts replacemen t cycle. Maintenance 10-3 SER…

100%1 / 572
NPM-W2 EJM7DE-MB-10M-00
10-3-3
4

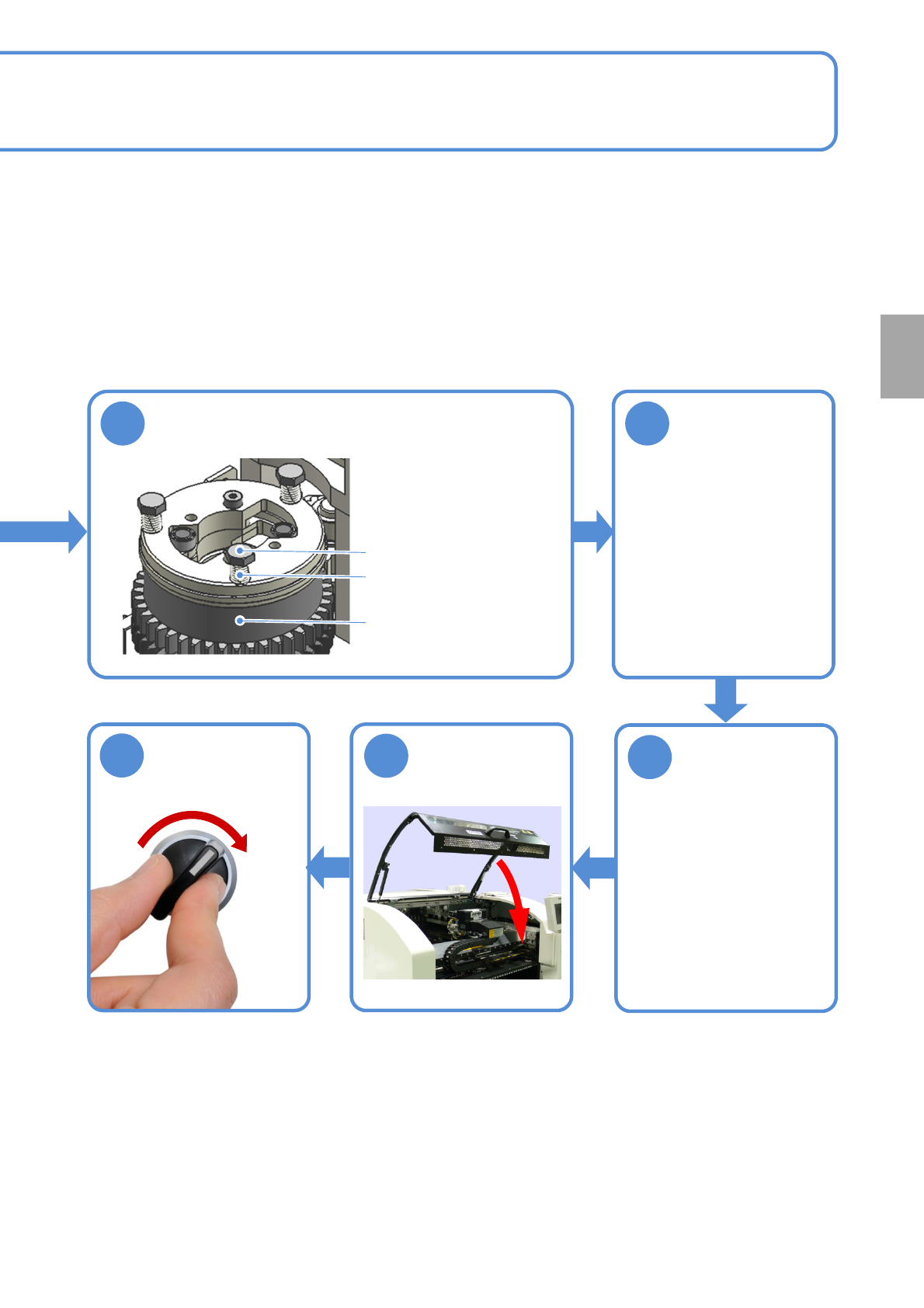

Loosen the bolt fixing the spring and remove
it
Bolt
5
Replace the
spring
●Be careful not to lose the
spring.
Spring
Screw unit holder
SERVO
ON
7
8
● Turn the screw unit
holder and replace the
rest of spring as well.
●The bolt tightening torque
is 0.3 N･m.
6
Replace the rest
of springs as
well
Every
18000
hours
Periodic
inspection
NPM-W2 EJM7DE-MB-10M-00
Replacing the spring 3
(dispensing head(option))
10-3-4
Tool used: Spanner Time required: 10 minutes
●Be sure to replace it at the consumable parts replacement cycle.
Maintenance
10-3
SERVO
ON
OFF
SERVO
10
11
3
1
2
ENABLING
●The head moves to the
exchange position.
12
Attach the
dummy
dispensing unit
1
2
①Tilt the attachment lever to
the left
②Attach the dummy
dispensing unit
NPM-W2 EJM7DE-MB-10M-00
10-3-5
4 5
6
789
Detach the
dummy
dispensing unit
Remove the
stopper
Loosen and
remove the spring
retaining bolt
Attach the spring
retaining bolt
Attach the
stopper
Replace the
spring
Spring
1
2
①Tilt the attachment lever to
the left
②Detach the dummy
dispensing unit
Every
18000
hours
Periodic
inspection
