12 Consumable parts replacement
NPM-W2 EJM7DE-MB-11M-00
11-3-2-3
22
21
23
Mode
switch
Maintenance
11-3-2

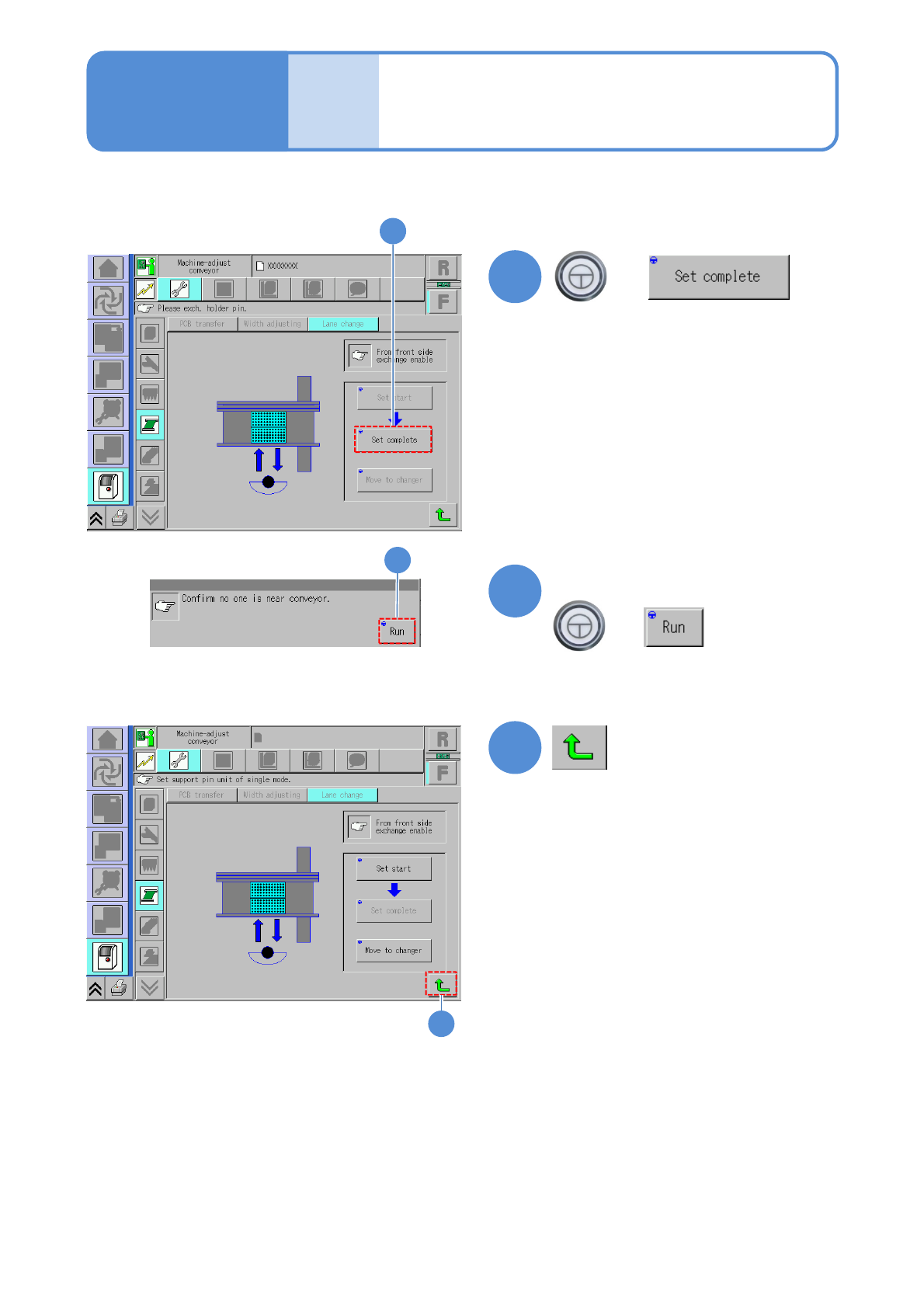

Confirming switch 2
+
(The PCB-support block goes down
until origin)
21
Confirm the message
+
22
23
12 Consumable parts
replacement
NPM-W2 EJM7DE-MB-12M-00

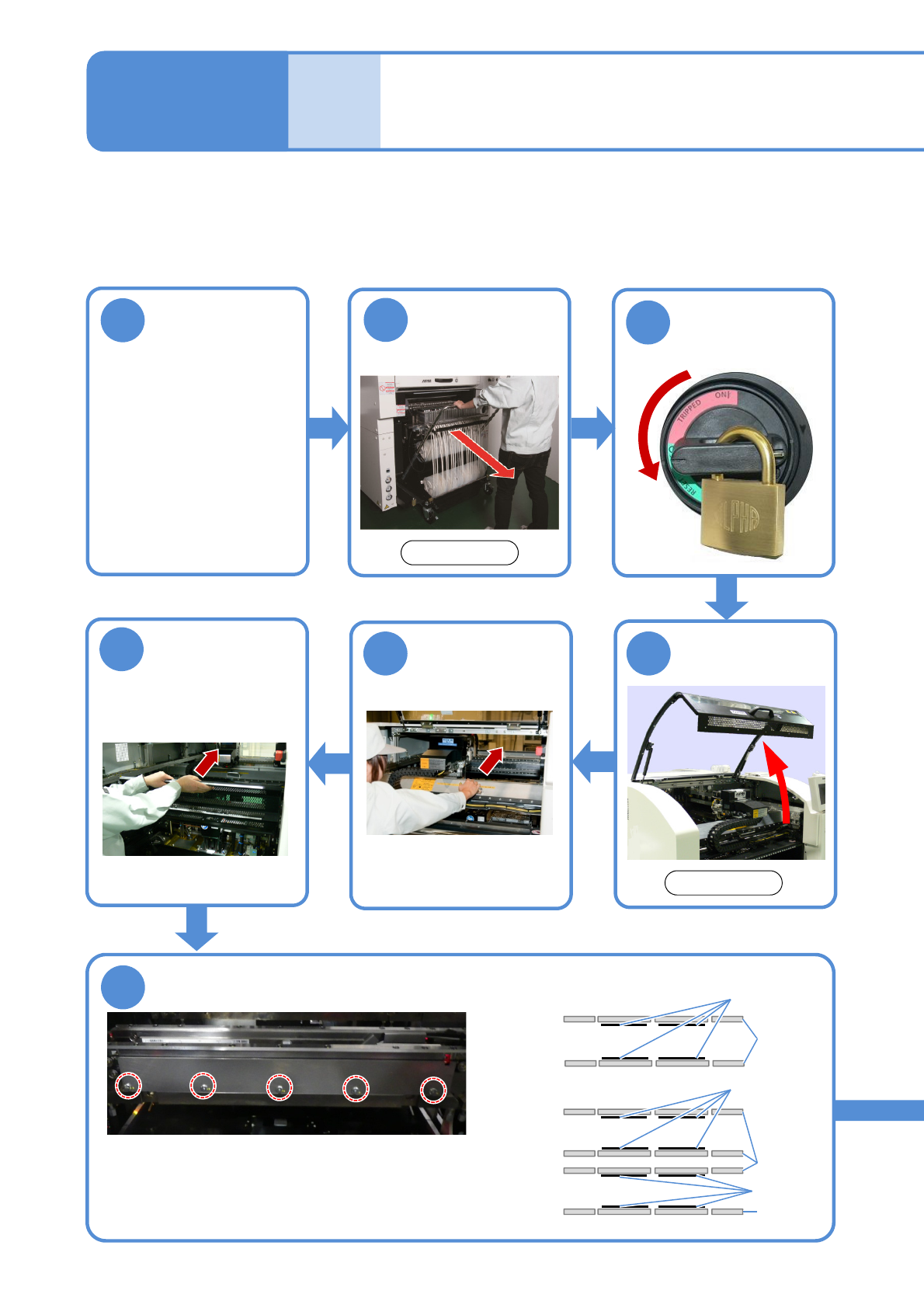

Replacing the transfer belt of
the PCB transfer conveyor 1
Describes the procedure for replacing the transfer belt of the PCB transfer conveyor system on the front of the
machine.
Tool used: Allen wrench (2 mm, 2.5 mm) Time required: 30 to 60 minutes
●If the transfer base is Front fixed, replace it at the front, and, for Rear fixed, at the rear after removing the
tray feeder. (→P.14-8
)
Maintenance
12-1
12-1-1
1
Detach the feeder
cart (→P.3-2)
2
Set the conveyor
width to 150 mm
(To improve
workability)
(→[ Operating
Procedure] P. 2-5-4)
Front side
4
3
Turn OFF the
power and lock
the machine
OFF
45
6
Remove the
feeder table
cover
(→P.3-3)
7
Remove the clamper
Push the X-axis
inward
Front side
●Screws(5)
Movable side
Fixed side
■Single conveyor: 4 pieces
■Dual conveyor: 8 pieces
Movable side
Fixed side
Movable side
Fixed side
Lane 1
Lane 2
Conveyor
Conveyor
Clamper
Clamper
Clamper
Conveyor
●Be careful not to drop screws
