NPM-W2 EJM7DE-MB-12M-00
Replacing the
batteries 1
12-3-1
Maintenance
12-3
Describes the procedure for replacing the batteries.
●If the battery voltage decreases, a warning message is displayed on the monitor, or the LED indicator lamp
goes out. Replace the batteries with new ones according to the procedure.
●Batteries are used for multiple parts including the control board of the machine. Used batteries should be
disposed of in compliance with the laws or regulations of each country, or contact your local government or
the service agency from which you purchased them.
●Mishandling the batteries could lead to an accidents including leakage, heat generation, explosion or
ignition, or malfunction of equipment. Be sure to observe the following.
・In case battery liquid gets into eyes, wash eyes with plenty of clean water such as tap water. Get
medical attention immediately.
・Do not charge the battery.
・Do not short (+) and (-) of the battery, or do not insert in reverse.
・Do not throw into a fire, heat, disassemble or remodel the battery.
・Do not deform the battery or apply strong impact.
・Immediately remove the drained battery from the device.
●Because the control PCB may break due to static electricity, be careful of handling with using earth band.
●Avoid the control PCB Short-circuiting by putting it directly on the metal surface. It does not cause smoke
or ignition but it may decrease battery life after being replaced.
NOTICE
NPM-W2 EJM7DE-MB-12M-00
12-3-2

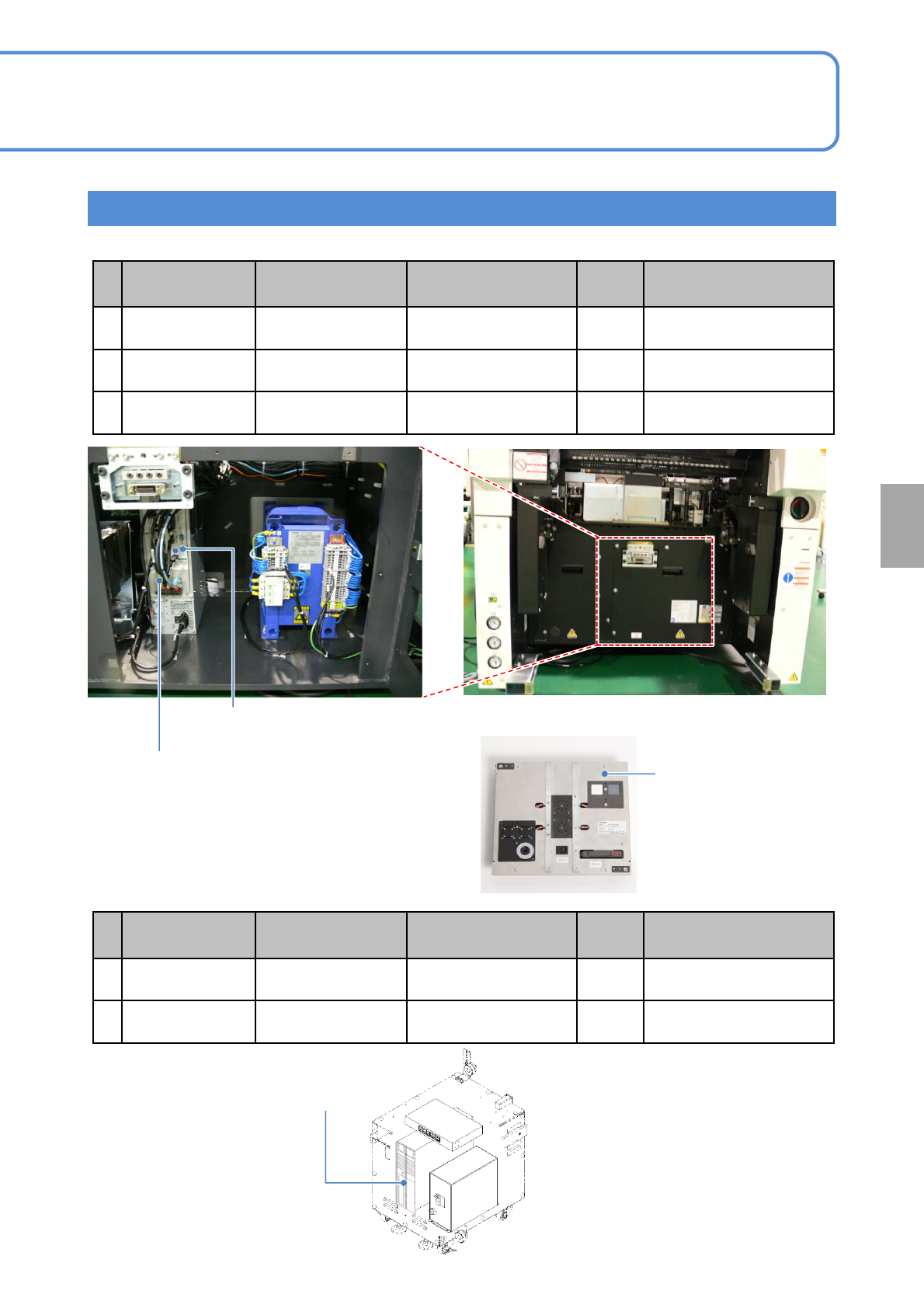

Battery locations and information 1
Consumable parts
replacement
No. Location Model No. (battery) Type (battery) Life
When the voltage
decreases
1
FA computer:
Calendar battery
— — 10 years
Warning message is
displayed on the monitor
2
FA computer:
UPS battery
N510069573AA FC-BP003 3 years
Warning message is
displayed on the monitor
■Inspection box
FA computer
No. Location Model No. (battery) Type (battery) Life
When the voltage
decreases
1 CPU board
－－
40 years
Warning message is
displayed on the monitor
2 NCIO board N610156136AA ER6V-LY 10 years
Warning message is
displayed on the monitor
3 Jig station - AA size battery 1 year
The LED lamp of the power
supply switch goes out
NCIO board
CPU board
Jig station
■Machine
NPM-W2 EJM7DE-MB-12M-00
Replacing the
batteries 2
Maintenance
12-3
Battery locations and information 2
■LNB
No. Location Model No. (battery) Type (battery) Life
When the voltage
decreases
1
FA computer:
Calendar battery
— — 10 years
Warning message is
displayed on the monitor
2
FA computer:
UPS battery
N510069573AA FC-BP003 3 years
Warning message is
displayed on the monitor
12-3-3
