NPM-W2 EJM7DE-MB-12M-00
12-3-12
Consumable parts
replacement
NPM-W2 EJM7DE-MB-12M-00
12-3-13
Replacing the UPS battery in FA PC
●The continued use of the battery beyond the end of its service life could cause production information to be
lost in the event of a power failure or cause damage to the hard disk.
Replacing the
batteries 7
Maintenance
12-3
6
Install the UPS
battery
UPS storage space
Screws (2)
7
Plug the
connector of the
UPS battery
Attach the front
cover
8
●Affix the label supplied with
the battery and enter the
date for the next
replacement (current
replacement date + 6 years).
9
Enter the date for
replacement of
the UPS battery
Replacement
date label
●Fit the 2 claws in the lower
portion of the front cover
into the case, and aligning
the 2 claws in the upper
portion with their original
places, press the whole
front cover into the case.
Connector
1
Turn OFF the power of the FA PC
●To end production, turn OFF the main power supply switches on the machine and then on the LNB.
(→”[LNB] 2.1 Operating Instructions of the Main Power Supply Switch at Production Start/End”)
Mainpower
supplyswitch
NPM-W2 EJM7DE-MB-12M-00
12-3-14
3
Unplug the connector
of the UPS battery
Connector
4
Remove the
UPS battery
UPS storage space
Screws (2)
5
Replace the
UPS battery
●Replacement battery:
N510069573AA
●Take the battery out of
the case, remove the
connector, and replace it
with a new one.

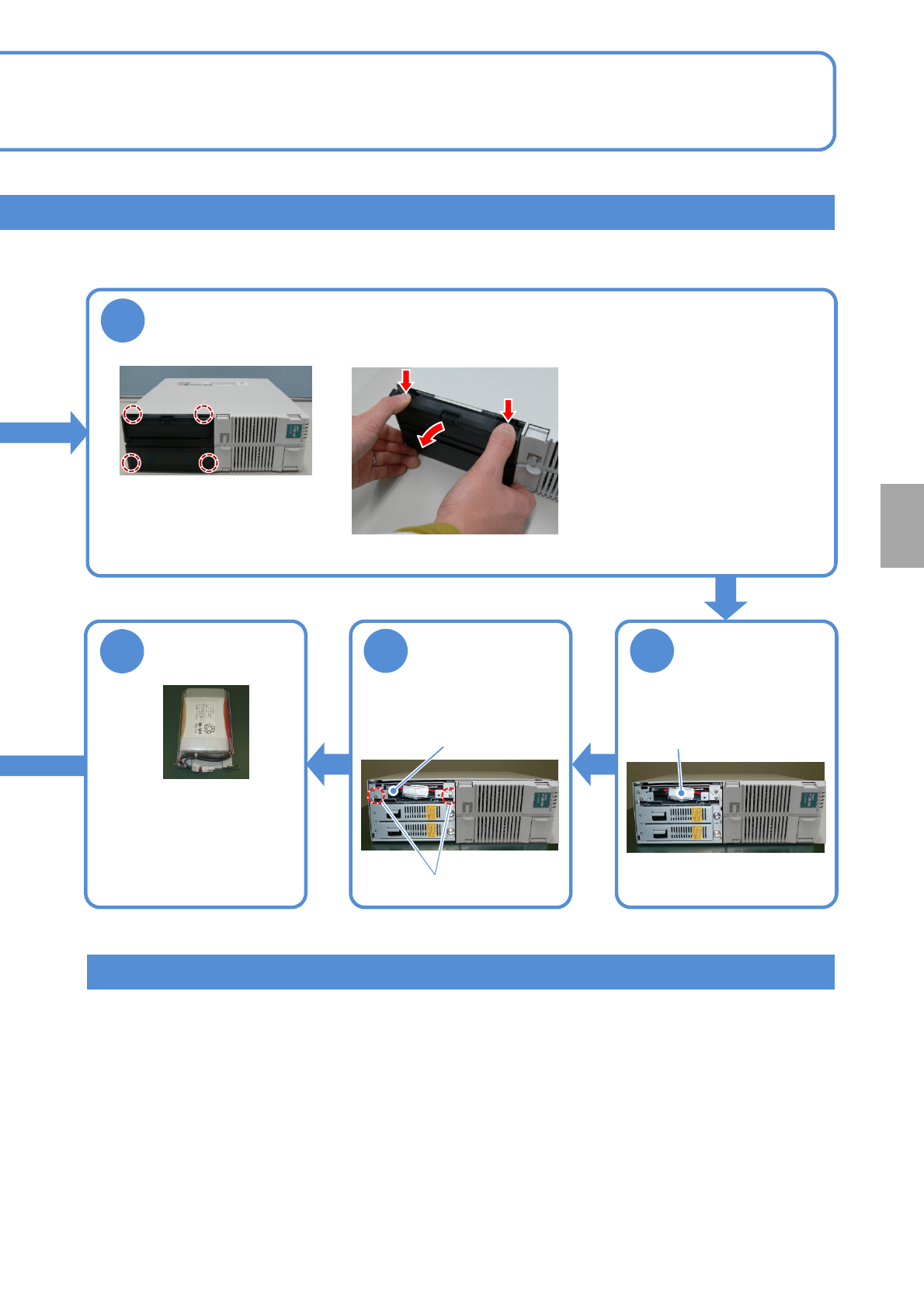

Replacing the calendar battery in FA PC
● Spacial skills such as BIOS settings are required for replacing the calendar battery. Please contact us.
Remove the cover from the FA PC
2
●The cover is fixed to the
FA PC with 4 claws
(inside the cover).
●While holding down the button in
the upper side of the cover, pull the
upper portion of the front cover
toward you.
●In doing so, be careful not to yank
the cover or the claw(s) may be
damaged.
Consumable parts
replacement
