NPM-W 2 EJM7DE-MB-12M-00 4 Detach the dummy dispensing unit 5 Detach two stoppers 6 Stoppers Detach the old tape Tape-up side Feed side ● Keep a paper core of a feed side and do not throw it away. It is us ed for rolling…

100%1 / 572
NPM-W2 EJM7DE-MB-12M-00
Tool used: None Time required:3分
12-4-1
Maintenance
12-4
3
1
ENABLING
OFF
SERVO
2
●The head moves to the
exchange position.
Attach two stoppers
9
Secure the edge
of the dummy
dispensing tape
to the paper core
of the take-up
side with tape
●Be sure to tighten up the
stopper, otherwise
the tape slips.
10
Stopper
Attach the
dummy
dispensing unit
1211
SERVO
ON
13

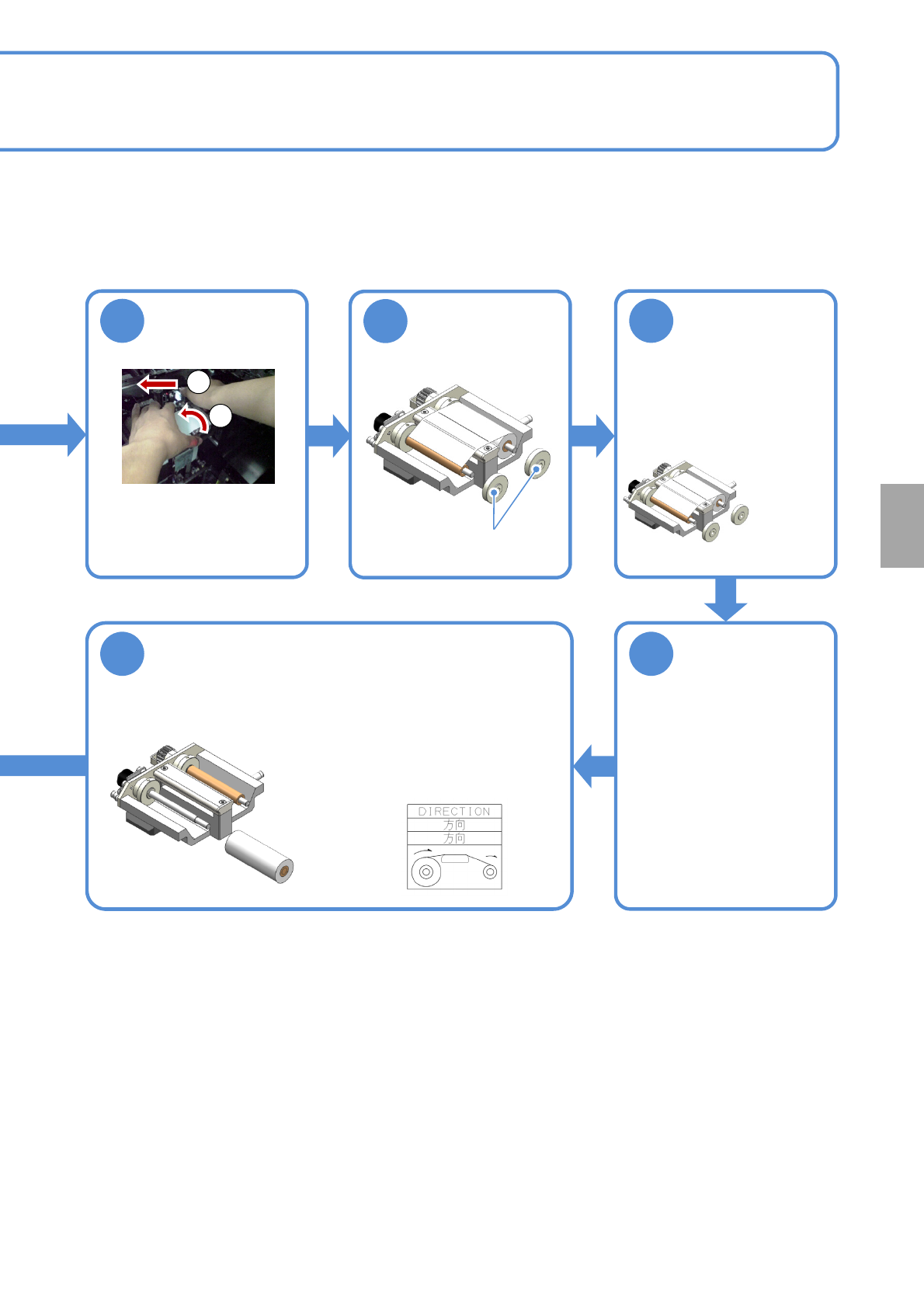

Replacing the dummy
dispensing tape
(dispensing head(option))
1
2
①Tilt the attachment lever to
the left
②Attach the dummy
dispensing unit
NPM-W2 EJM7DE-MB-12M-00
4
Detach the
dummy
dispensing unit
5
Detach two
stoppers
6
Stoppers
Detach the old
tape
Tape-up side
Feed side
●Keep a paper core of a
feed side and do not
throw it away. It is used
for rolling up a new tape.
8
Put a new tape to a feed side
7
Put the paper
core of an old
tape to take-up
side
●Dummy dispensing tape:
N210112529AA
●Attention to the rotation
direction of a dummy
dispensing tape
Tape-up side
Feed side
12-4-2
1
2
①Tilt the attachment lever to
the left
②Detach the dummy
dispensing unit
Consumable parts
replacement
NPM-W2 EJM7DE-MB-12M-00
Maintenance
12-5
3
OFF
SERVO
1
2
Push the X-axis
inward

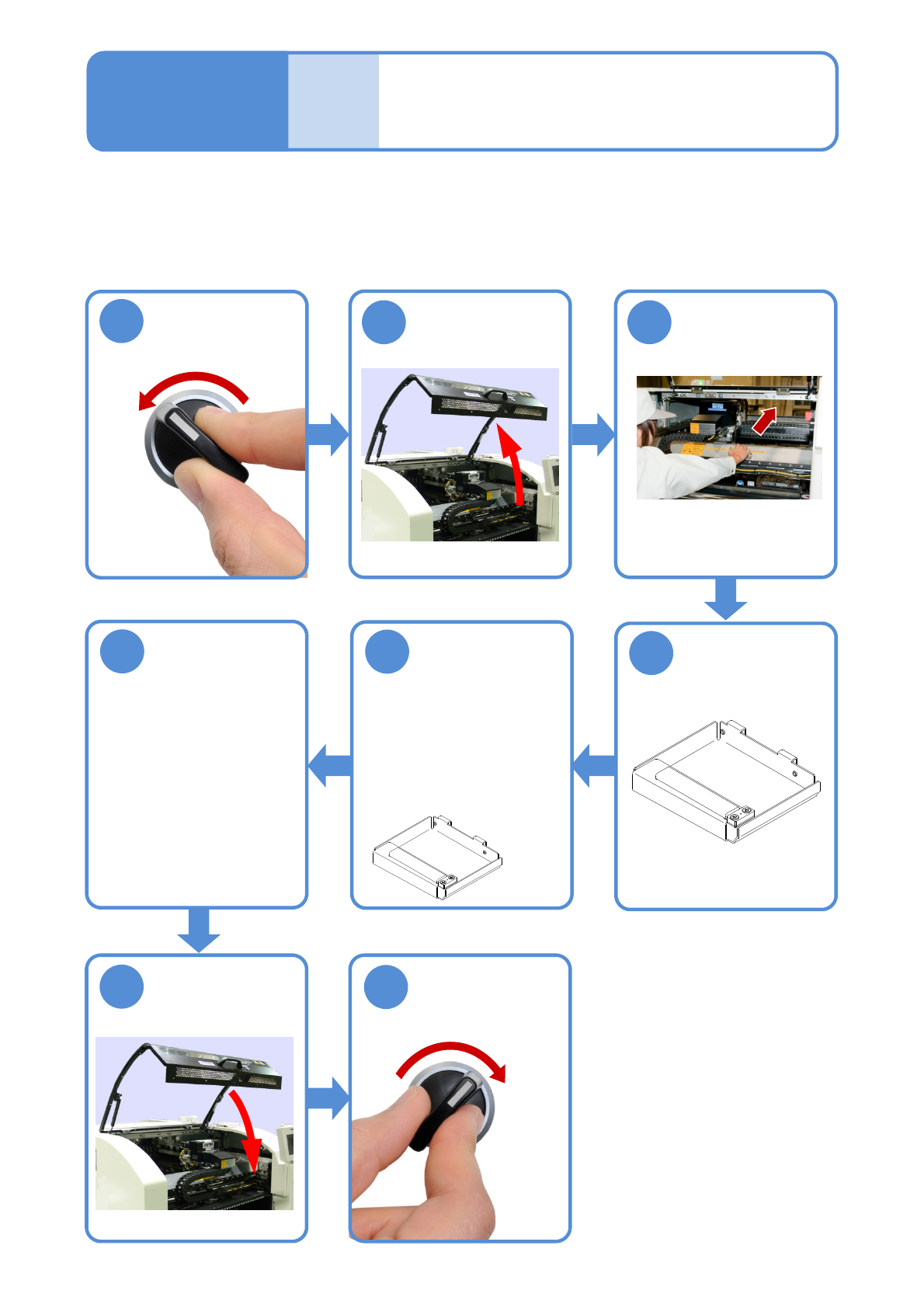

Replacing the cushion
(wiping station)
(dispensing head(option))
4
5
6
SERVO
ON
7
8
Tool used: None Time required: 1minute
●When the cushion (wiping station) is broken or seriously contaminated, replace it according to the following
steps.
Remove the
cushion (wiping
station)
Replace the old
cushion (wiping
station) to new
one
Put the cushion
(wiping station)
back to the
original position
●Cushion (wiping station):
N610116409AA
●Make sure that the
cushion (wiping station) is
properly placed. If it is
mounted on the frame
and placed, it may
damage a nozzle during
operation.
