NPM-W 2 EJM7DE-MB-12 M-00 Maintenance 12-6 Describes how to replace an air filter element of the placement hea d (light weight 16-nozzle). Tool used: None Time required: 15 minutes (per head ) Life time (reference): 6000…
NPM-W2 EJM7DE-MB-12M-00
Consumable parts
replacement
12-5-2
NPM-W2 EJM7DE-MB-12M-00
Maintenance
12-6

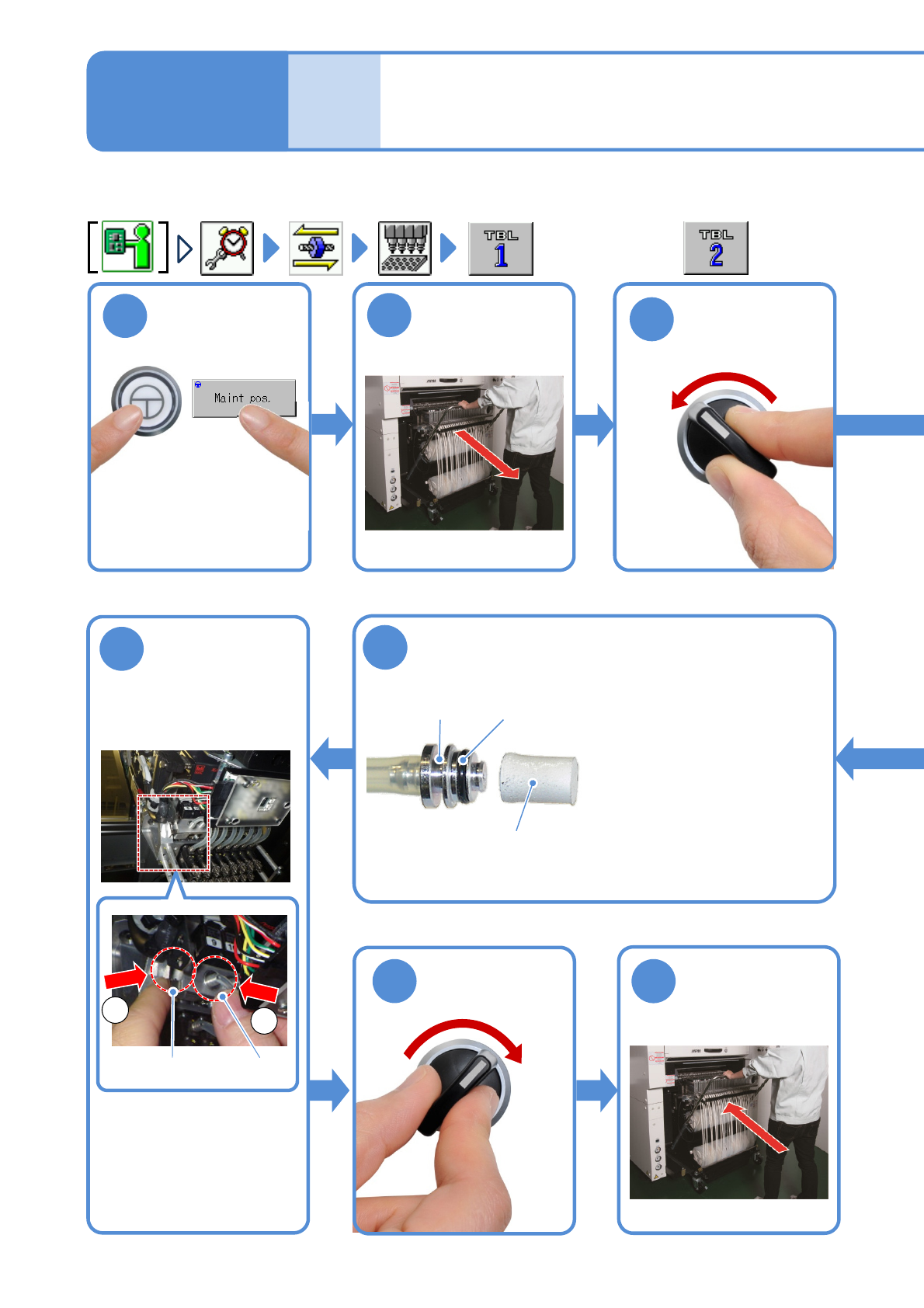

Describes how to replace an air filter element of the placement head (light weight 16-nozzle).
Tool used: None Time required: 15 minutes (per head) Life time (reference): 6000 [h]
3
OFF
SERVO
●For the rear side,
1
ENABLING
2
Detach the feeder
cart (→P.3-2)
12-6-1
Replacing the air filter
element of the placement
head (Light weight 16-nozzle) 1
8
7
6
Replace the air filter element
●Be careful of handling an air
filter element when replacing
it.(→P.12-6-3)
Air filter element
Joint O-ring
●Air filter element product
No.: N510059928AA
●Check if the O-ring is not
deteriorated.
If it is deteriorated, replace it
with a new one.
●O-ring product
No.: N510059867AA
1
2
JointLever
Press the lever
and insert the
joint with the air
filter element
●16 locations
●Be careful not to drop the
air filter element.
●Do not hold the head
camera and perform
maintenance.
SERVO
ON
8
Attach the
feeder cart
(→P.3-2)
9
NPM-W2 EJM7DE-MB-12M-00
Consumable parts
replacement
12-6-2
4
5

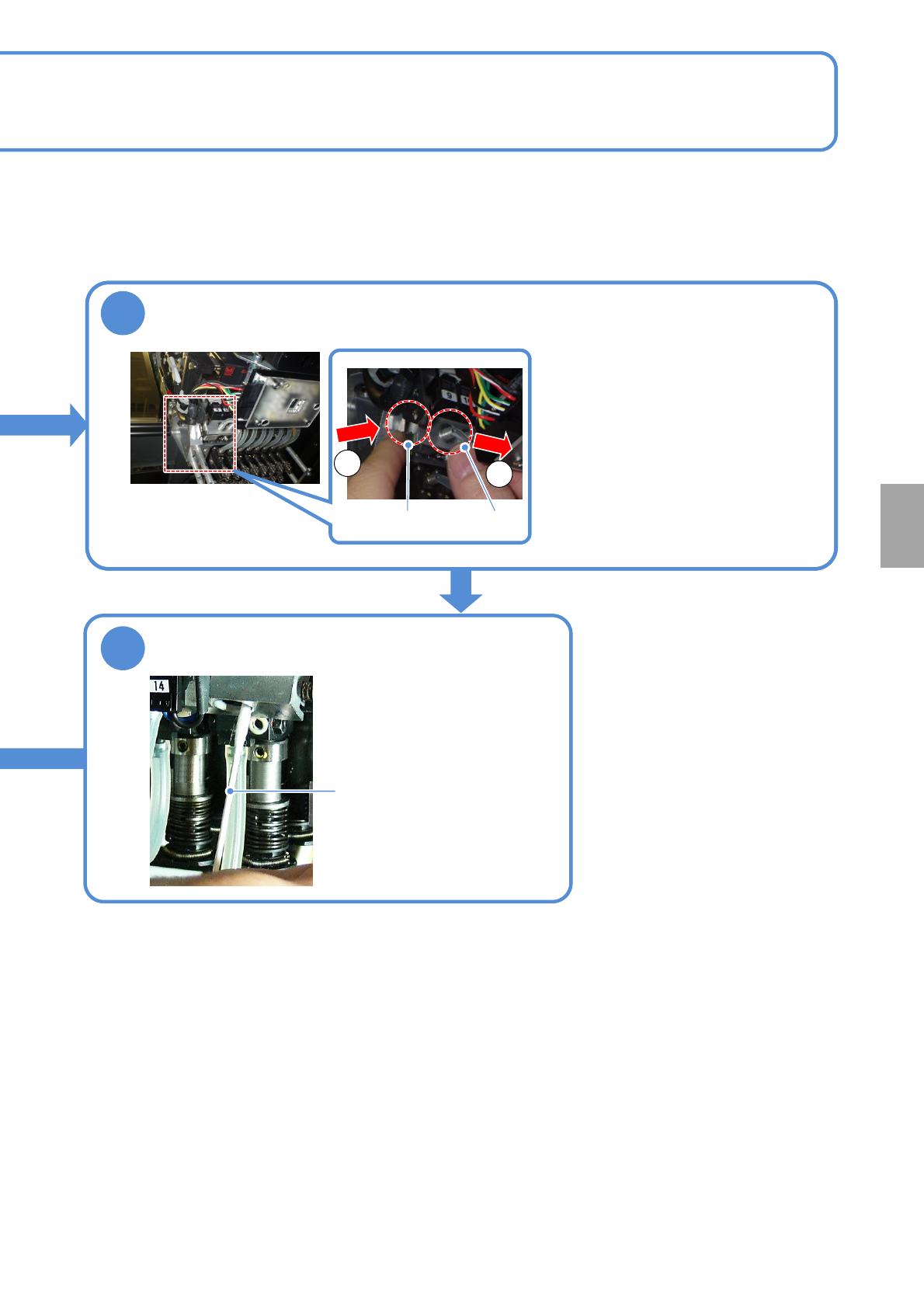

Press the lever and pull out the joint with the air filter element
Clean inside the filter using a swab
●Do not use an air blow gun
Swab
1
2
JointLever
●Move the placement head to the
position where you can work easily.
●16 locations
●Be careful not to drop the air filter
element.
●Do not hold the head camera and
perform maintenance.
