NPM-W 2 EJM7DE-MB-13M-00 13-4 -8 Calibration 8 (The head moves to the work position) + Confirm that it has been successfully completed ● If it has been succes sfully comple ted, the display of each nozzle position is cha…

100%1 / 572
NPM-W2 EJM7DE-MB-13M-00
13-4-7
Maintenance
13-4
Head / Plane
calibration Z 4
● Install the screw unit that a calibration nozzle (nozzle no. 7202) is previously set, and fill up adhesives by
Eject Confirm in advance.(→[Operating procedure] P.3-4)
● Before calibration, be sure that there is no adhesive stuck to the nozzle tip, otherwise you may not obtain
accurate height offset.
Dispensing head 1
2
1
2 13
+
4
3
4
Choose a head to perform
plane correction Z
or
(The head moves to the work position)
Choose nozzle positions to
measure the height
●On the default screen, all the nozzle
positions are selected. If there is a
nozzle position which you do not wish
to calibrate, deselect it by pressing its
box.
●You are free to choose the number of
nozzle positions.
5
Confirm the message
(Completes height measure)
+
NPM-W2 EJM7DE-MB-13M-00
13-4-8
Calibration
8
(The head moves to the work position)
+
Confirm that it has been
successfully completed
●If it has been successfully completed,
the display of each nozzle position is
changed from '-' to 'OK'.
6
6
7
8
9
10
Confirm the message
+
(Completes plane correction Z)
(The head moves to the work position)
+
Confirm that it has been
successfully completed
(The Dummy dispensing height is
calibrated)
Confirm the message
+
Confirm that it has been
successfully completed, and
choose the other nozzle
positions for plane correction
Z and then repeat steps from
to
2
9
10

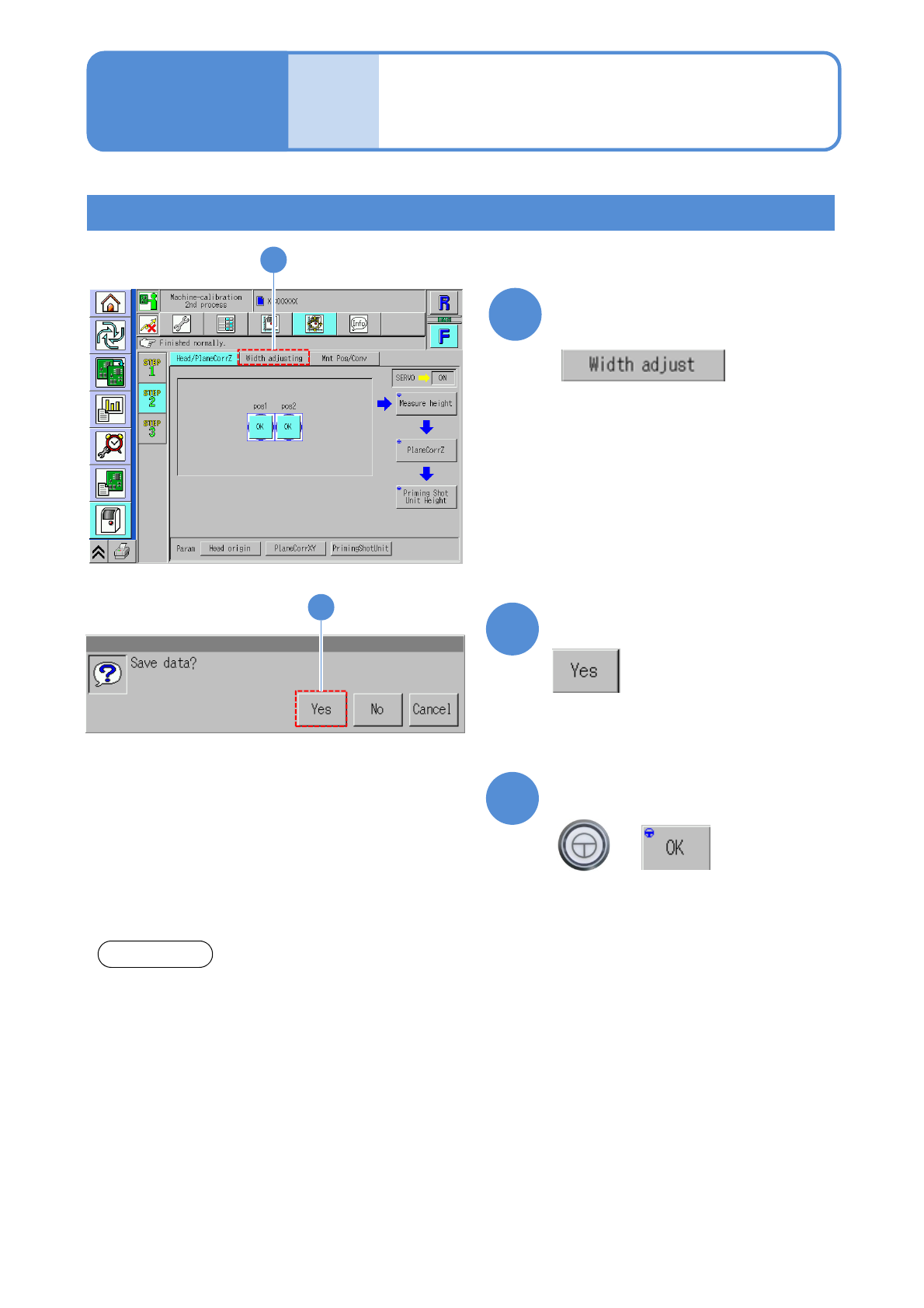

NPM-W2 EJM7DE-MB-13M-00
13-4-9
Maintenance
13-4
Head / Plane
calibration Z 5
Dispensing head 2
11
11
Confirm that it has been
successfully completed
12
13
(The head moves to the work position)
+
Confirm the message
12
Confirm the message
(The plane correction Z data is saved)
ATTENTION
When this calibration is performed, adhesives may stains to the reference post or on
the rail. If so, please wipe it off with a cloth.
