NPM-W2 EJM7DE-MB-13M-00
13-6-4

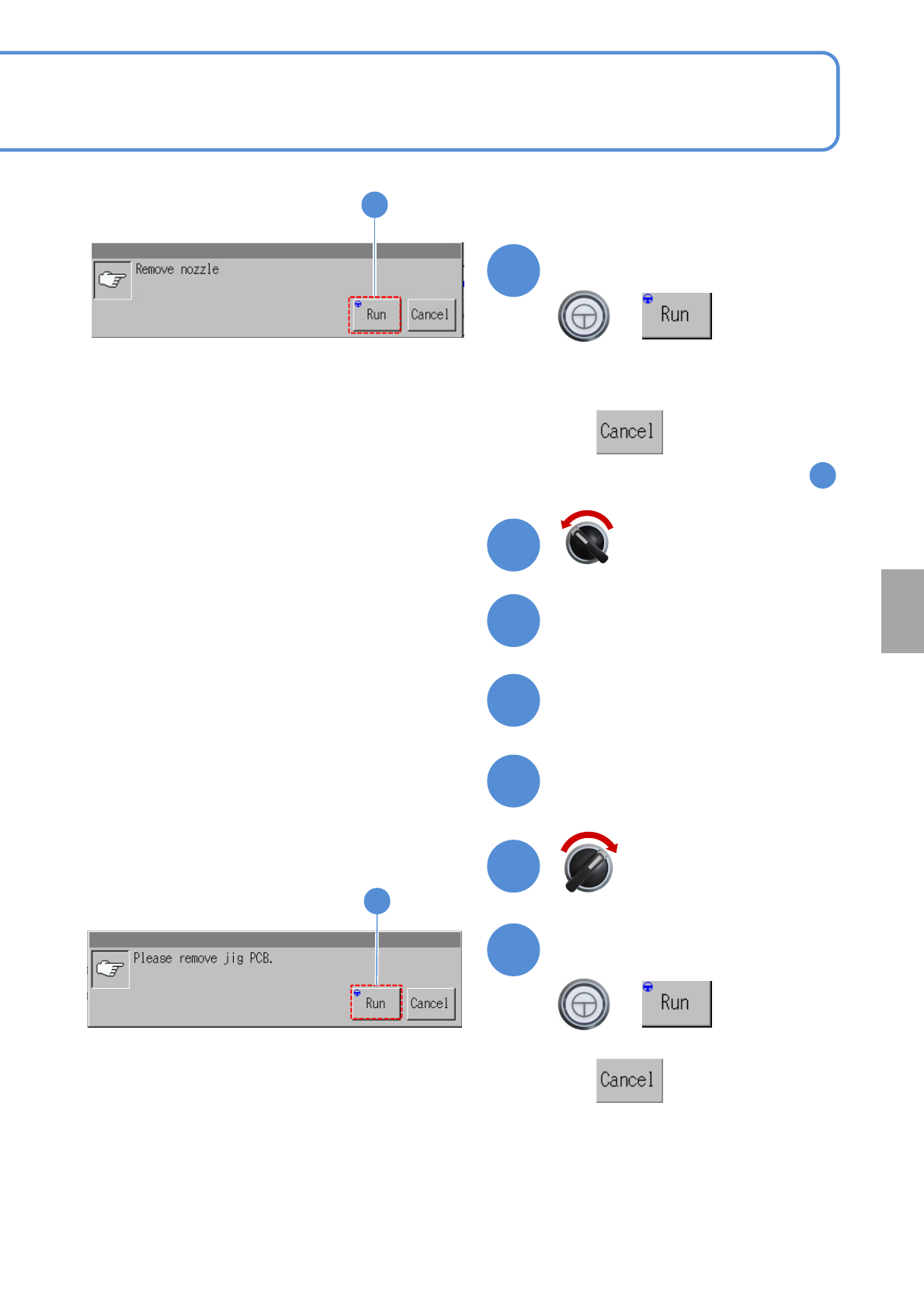

Calibration
+
Confirm the message
●To cancel
(The screen remains as it is in )
Open the safety cover
Remove the placement-height
teaching jig
Close the safety cover
Servo switch OFF
Servo switch ON
+
Confirm the message
●To cancel
12
20
26
(The head moves to the retraction position)
20
21
22
23
24
25
26
NPM-W2 EJM7DE-MB-13M-00
13-6-5
Mount position/
Conveyor 3
Maintenance
13-6

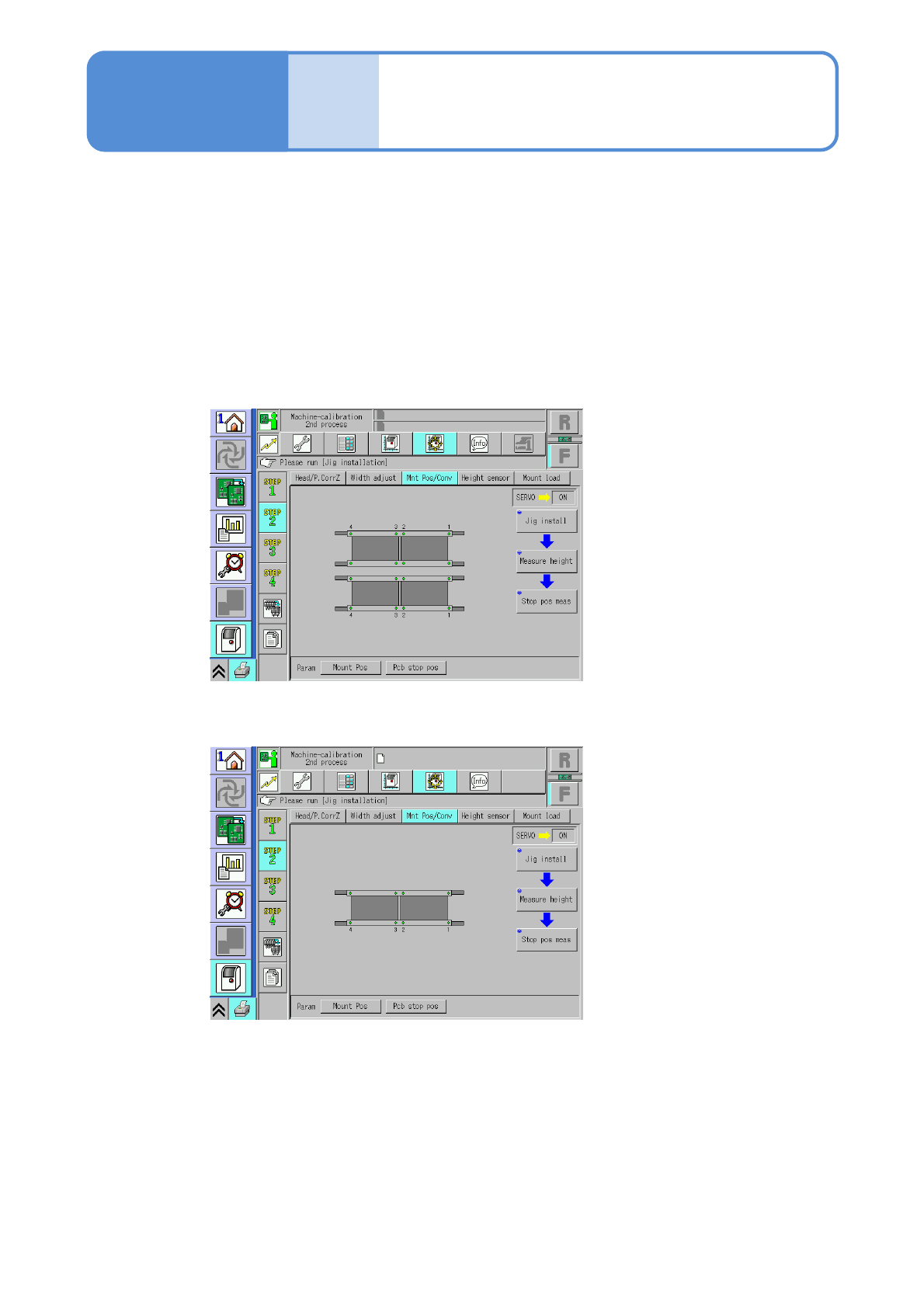

■About the conveyor type
A)For dual conveyor
B)For single conveyor
The operation screen varies according to whether the conveyor mode is dual lane mode or single lane
mode.
The operation screen switches according to the conveyor mode automatically.
In dual lane mode, you can select the lane 1 or the lane 2, allowing calibration of each lane.
For single lane mode, only the lane 1 is targeted.
The operation is the same.
NPM-W2 EJM7DE-MB-13M-00
13-6-6
Calibration
