NPM-W 2 EJM7DE-MB-13M-00 + (The head operat es for measurement) Close the safety cover Servo switch ON Maintenance 13-7 13-7 -3 ● Nozzle Confirm the message and install the nozzle (The screen show for light weight16- noz…
NPM-W2 EJM7DE-MB-13M-00
13-7-2
Slide and set the height teaching
jig from the standby side
●For calibration of the height sensor,
jigs on both the front and rear heads
are set to lane 1.
●Push the jig to the fixed side on the
rail, and set the jig as the right edge of
the jig matches to the mark on the
conveyor. (The picture on the left is for
left to right flow.)
●For right to left flow, the left edge of
the jig shall be matched to the mark on
the conveyor
Close the safety cover
Servo switch ON
+
(The head moves to the set position)
Servo switch OFF
Open the safety cover
●Confirm that there is no contamination
or stain on the measurement part
: PCB flow direction
Reference mark
(Left→right flow)
Conveyor side
Mark (φ1 hole)
Measurement part
teaching jig
Reference mark
(Right→ left flow)
Conveyor side
Mark (φ1 hole)
Calibration
11
8
9
10
13
12
11
NPM-W2 EJM7DE-MB-13M-00
+
(The head operates for measurement)
Close the safety cover
Servo switch ON
Maintenance
13-7
13-7-3

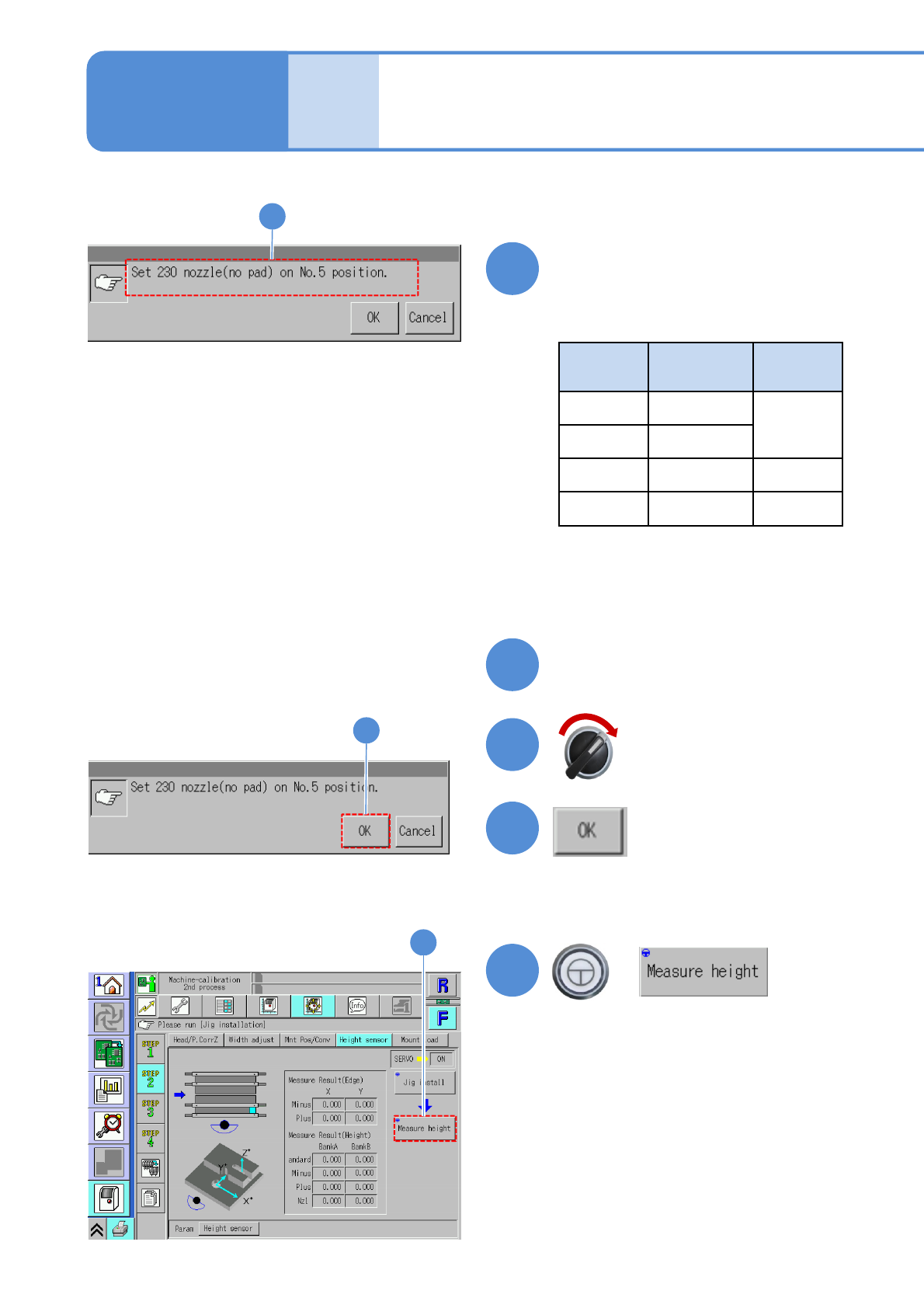

●Nozzle
Confirm the message and
install the nozzle
(The screen show for light weight16-
nozzle head)
Head
type
Nozzle
position
Nozzle
type
16 No. 5
230CS
12 No. 4
8 No. 3 230C
3No. 21003
●For the dispensing head, it is
necessary to install the screw unit that
a calibration nozzle (nozzle no. 7202)
is previously set to the nozzle position
2.
Height sensor (option) 2
14
18
15
16
17
18
17
14
(The screen show for light weight16-
nozzle head)
NPM-W2 EJM7DE-MB-13M-00

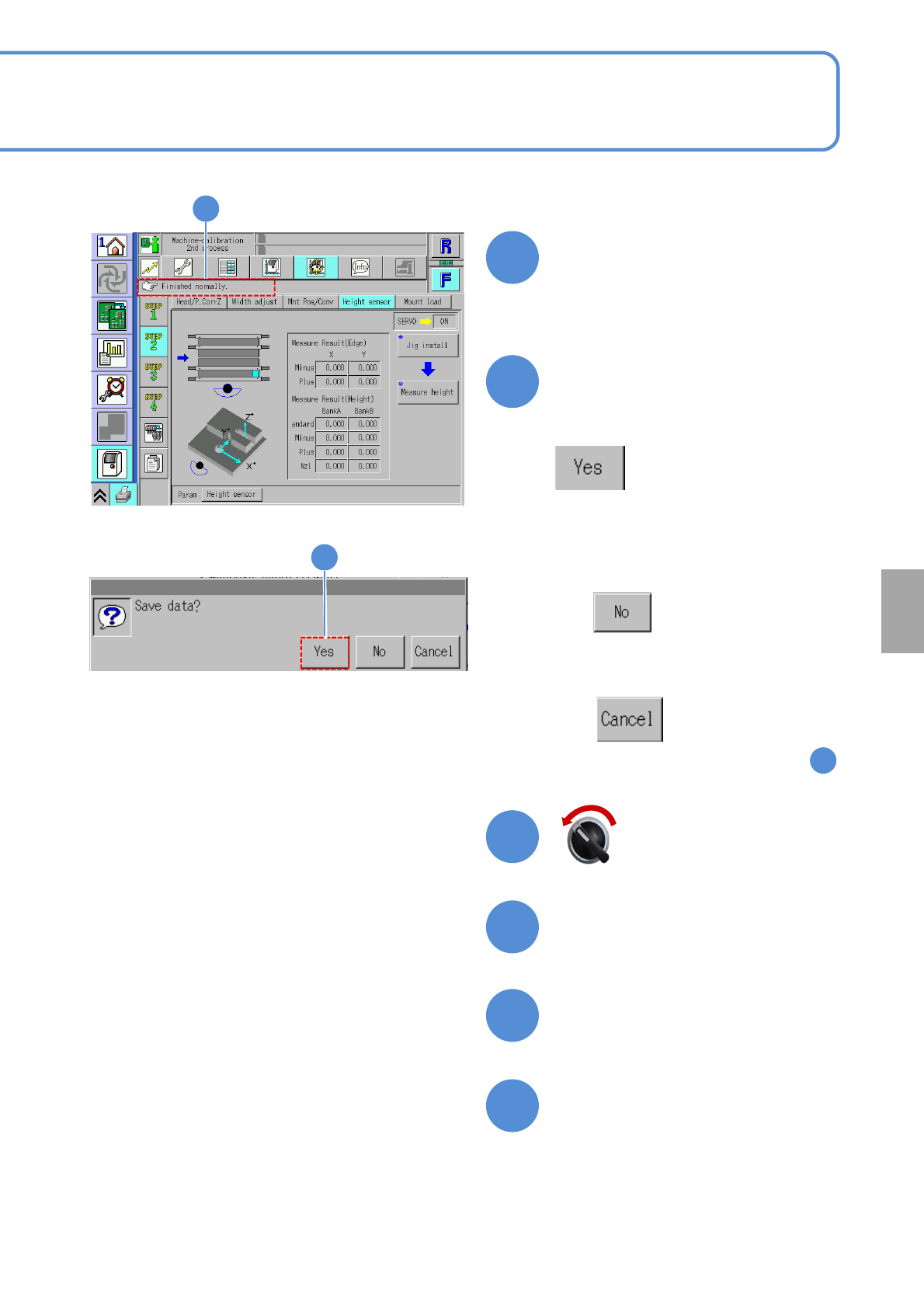

13-7-4
Calibration
Confirm that it has been
successfully completed
Pressing other menu screen
appears confirmation message
of data save
(The data obtained by calibration is
cleared
(The data obtained by calibration is
saved)
■When you do not save
■To cancel
(The screen remains as it is in )
Remove the nozzle
Servo switch OFF
Open the safety cover
Close the safety cover
19
20
22
21
23
24
19
19
20
(The head moves to the work position)
