NPM-W 2 EJM7DE-MB-13M-00 Confirm that it has been successfully completed Press the numerical part (The n umerical keyp ad appears) 13-8-1 -5 Place- ment load Placement load 3 Maintenance 13-8-1 Enter the measured value ●…

100%1 / 572
NPM-W2 EJM7DE-MB-13M-00

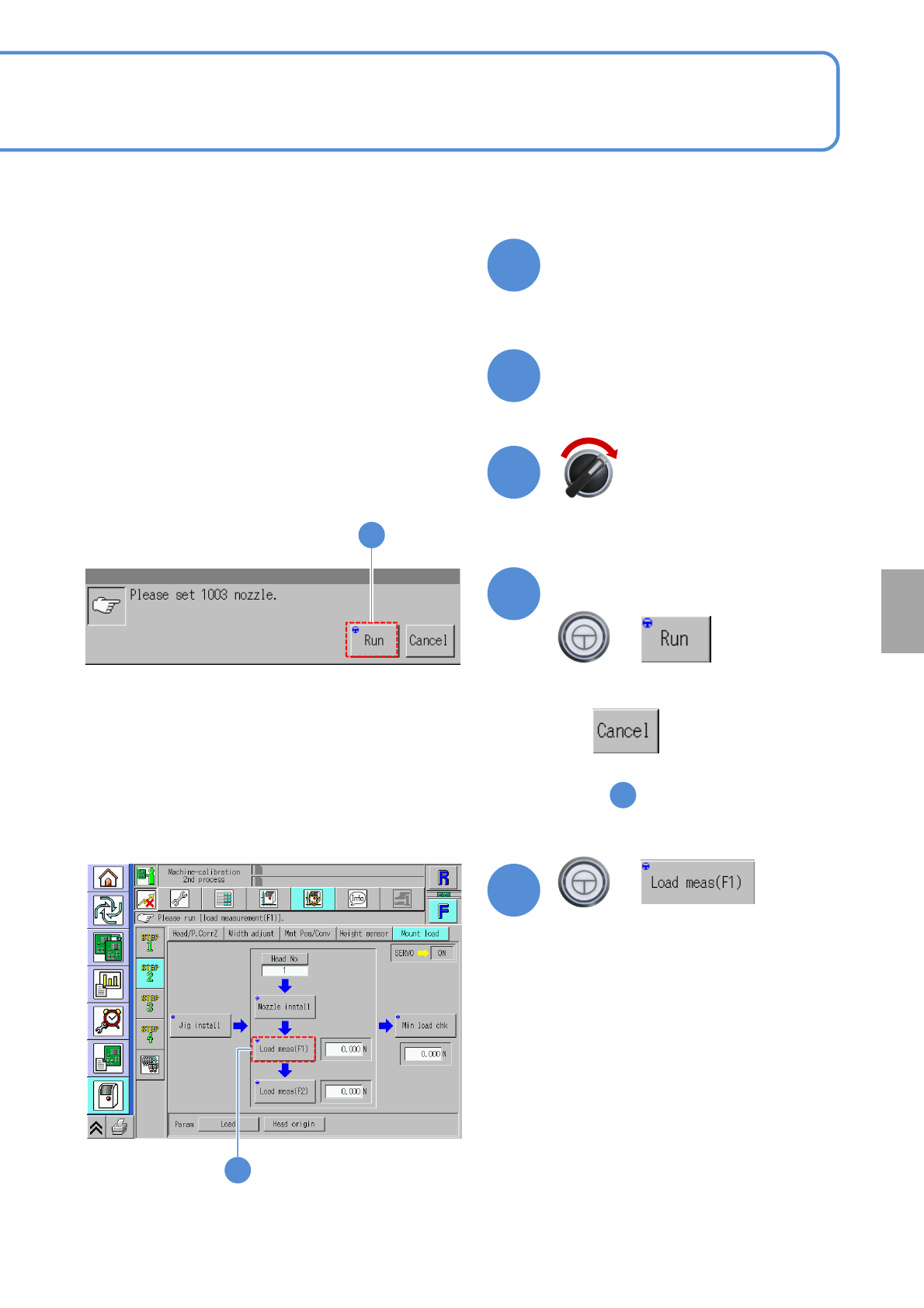

Install nozzles
Close the safety cover
●Install them to the nozzle positions to
be measured.
(Use 1003 nozzle)
Servo switch ON
13-8-1-4
Calibration
●Reads a stable numerical value being
measured.
Load meas displays the standardized
value rather than the maximum value
since the numerical value goes up
momentarily when the nozzle and the
jig come in contact with each other so
that it becomes difficult to read the
measurement value accurately.
●How to change the load cell meter
display. (→P.13-8-2)
+
(Calibration is carried out)
+
Confirm the message
●To cancel
(The screen remains as it is
in )
17
18
19
21
20
12
21
20

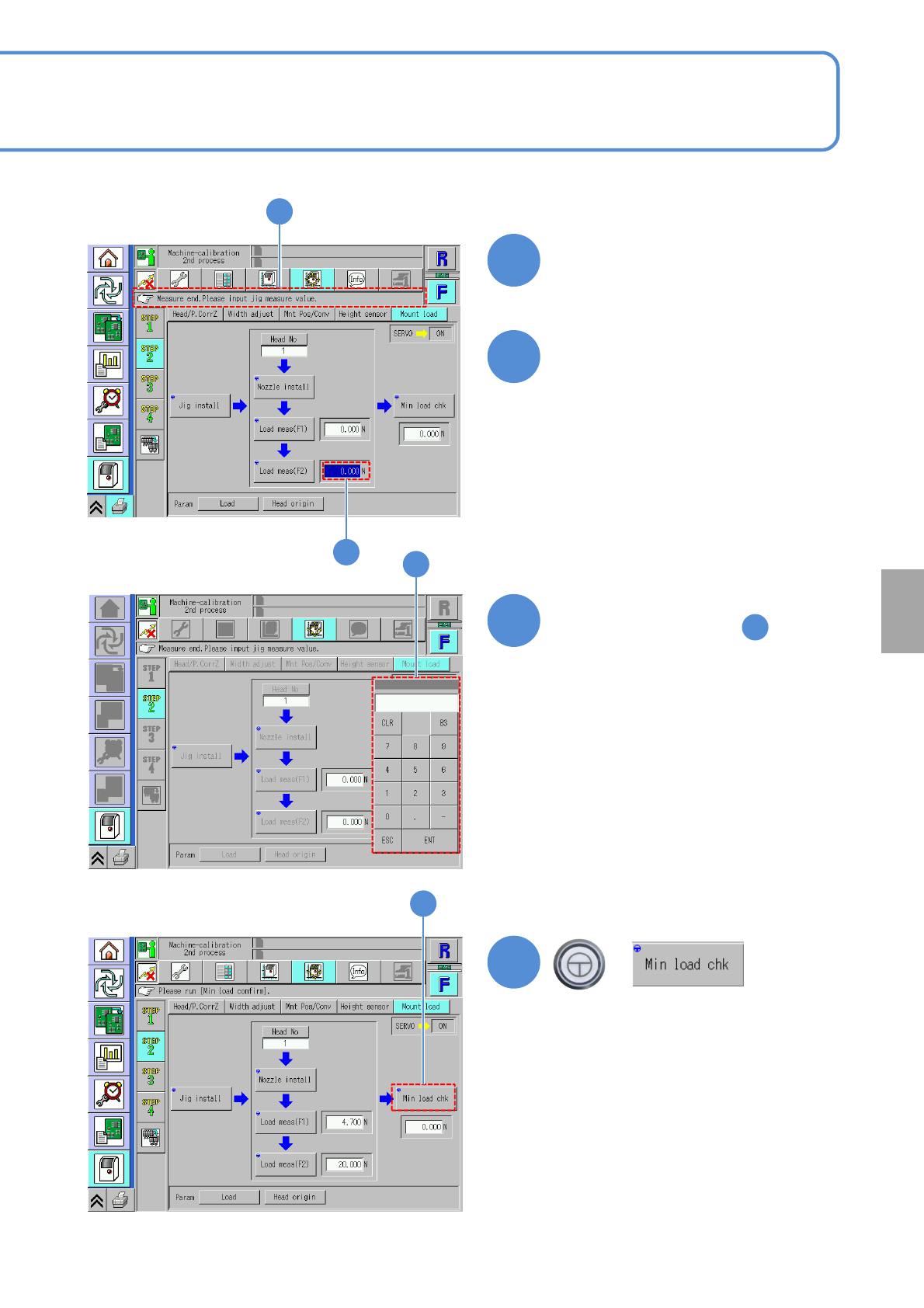

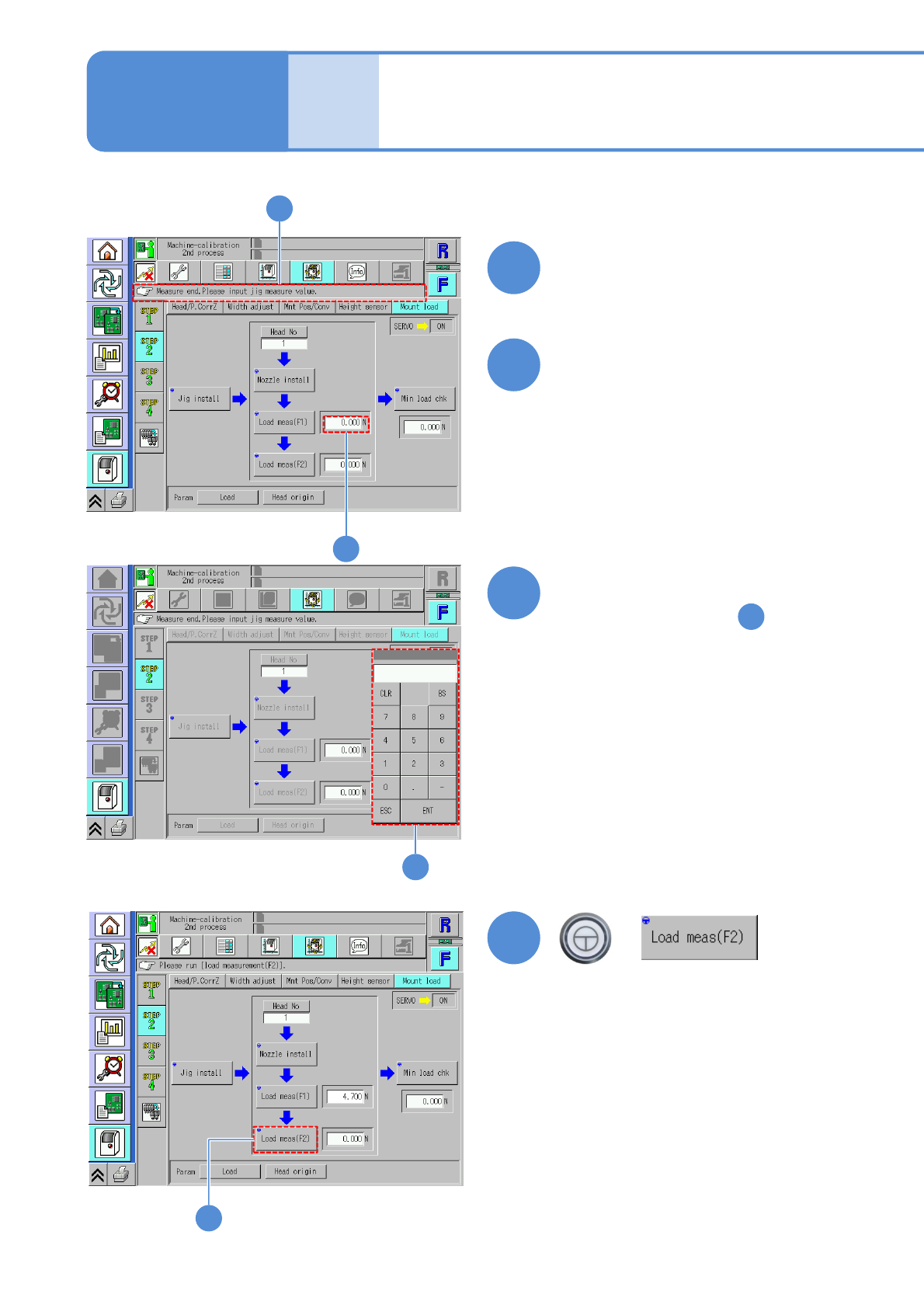

NPM-W2 EJM7DE-MB-13M-00
Confirm that it has been
successfully completed
Press the numerical part
(The numerical keypad appears)
13-8-1-5
Place-
ment
load
Placement load 3
Maintenance
13-8-1
Enter the measured value
●Enter the value read in .
Input range: 3.2 to 6.2 N
●Reads a stable numerical value being
measured.
Load meas displays the standardized
value rather than the maximum value
since the numerical value goes up
momentarily when the nozzle and the
jig come in contact with each other so
that it becomes difficult to read the
measurement value accurately.
●How to change the load cell meter
display (→P.13-8-2)
+
(Calibration is carried out)
22
23
24
25
21
22
23
24
25
NPM-W2 EJM7DE-MB-13M-00
Confirm that it has been
successfully completed
Press the numerical part
(The numerical keypad appears)
13-8-1-6
Calibration
Enter the measured value
●Enter the value read in .
Input range: 15 to 25 N
●Reads a stable numerical value being
measured.
Load meas displays the standardized
value rather than the maximum value
since the numerical value goes up
momentarily when the nozzle and the
jig come in contact with each other so
that it becomes difficult to read the
measurement value accurately.
●How to change the load cell meter
display (→P.13-8-2)
+
(Calibration is carried out)
26
27
28
29
25
26
27
28
