NPM-W 2 EJM7DE-MB-13M-00 13-9 -5 Multi-r ecognition camer a 3 Maintenance 13-9 Close the safety cover Replace the multi-recognition camera jig ● Nozzles that you confirm Head type Nozzle position Before replace After rep…

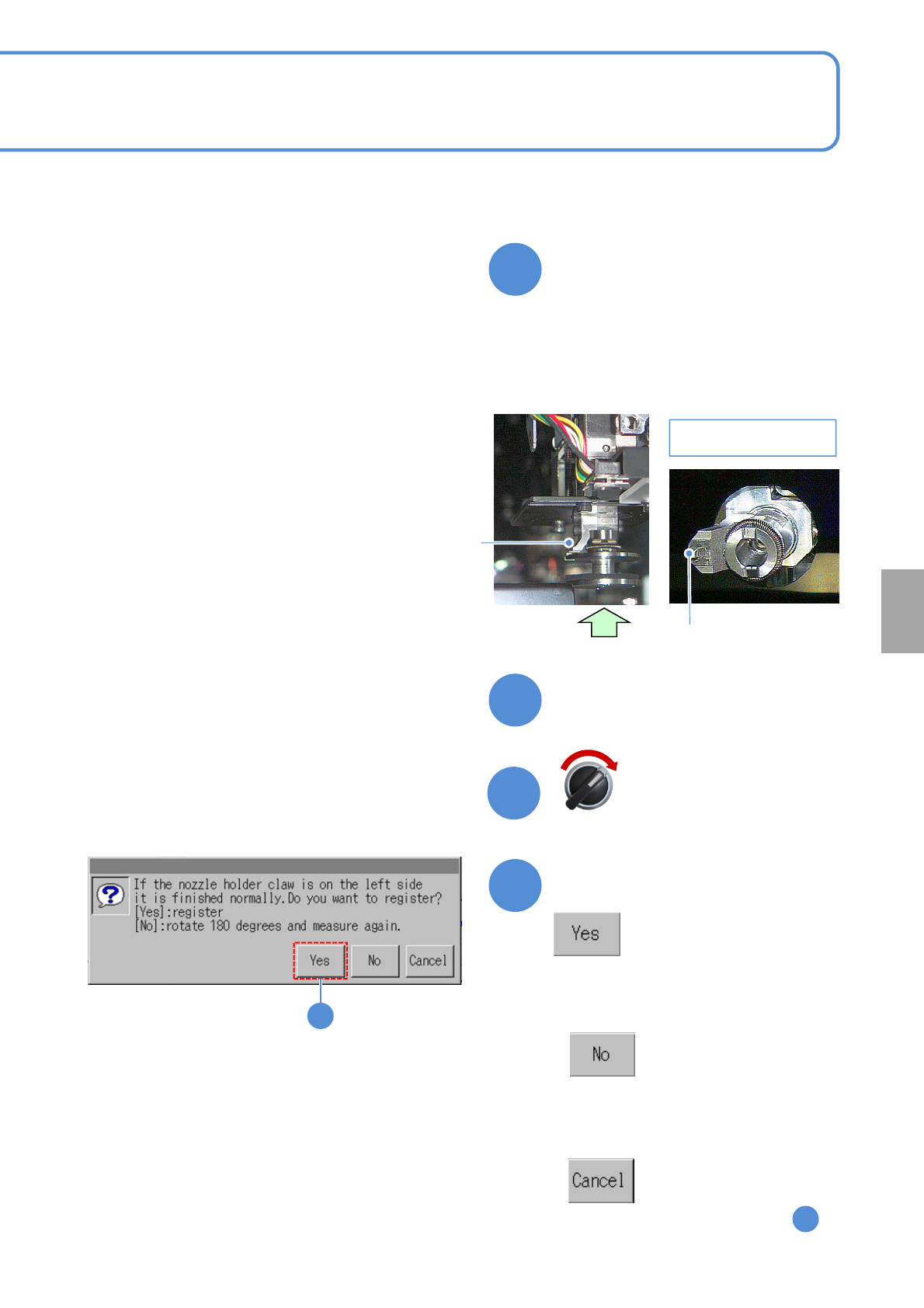

NPM-W2 EJM7DE-MB-13M-00
13-9-4
Calibration
Confirm the head installation
angle
Close the safety cover
Nozzle holder claw
Arrow view A
A
Nozzle holder claw
●Check the direction of a nozzle holder
claw.
Front XY unit: The claw is rightside viewed
from the front side
Rear XY unit: The claw is left side viewed
from the rear side
Servo switch ON
Confirm the message
■To cancel
(The screen remains as it is in )
■If the nozzle holder claw is not on the
left side,
(Rotates 180 degree and measures
again)
20
21
22
23
1
23
(The head moves to the work position)

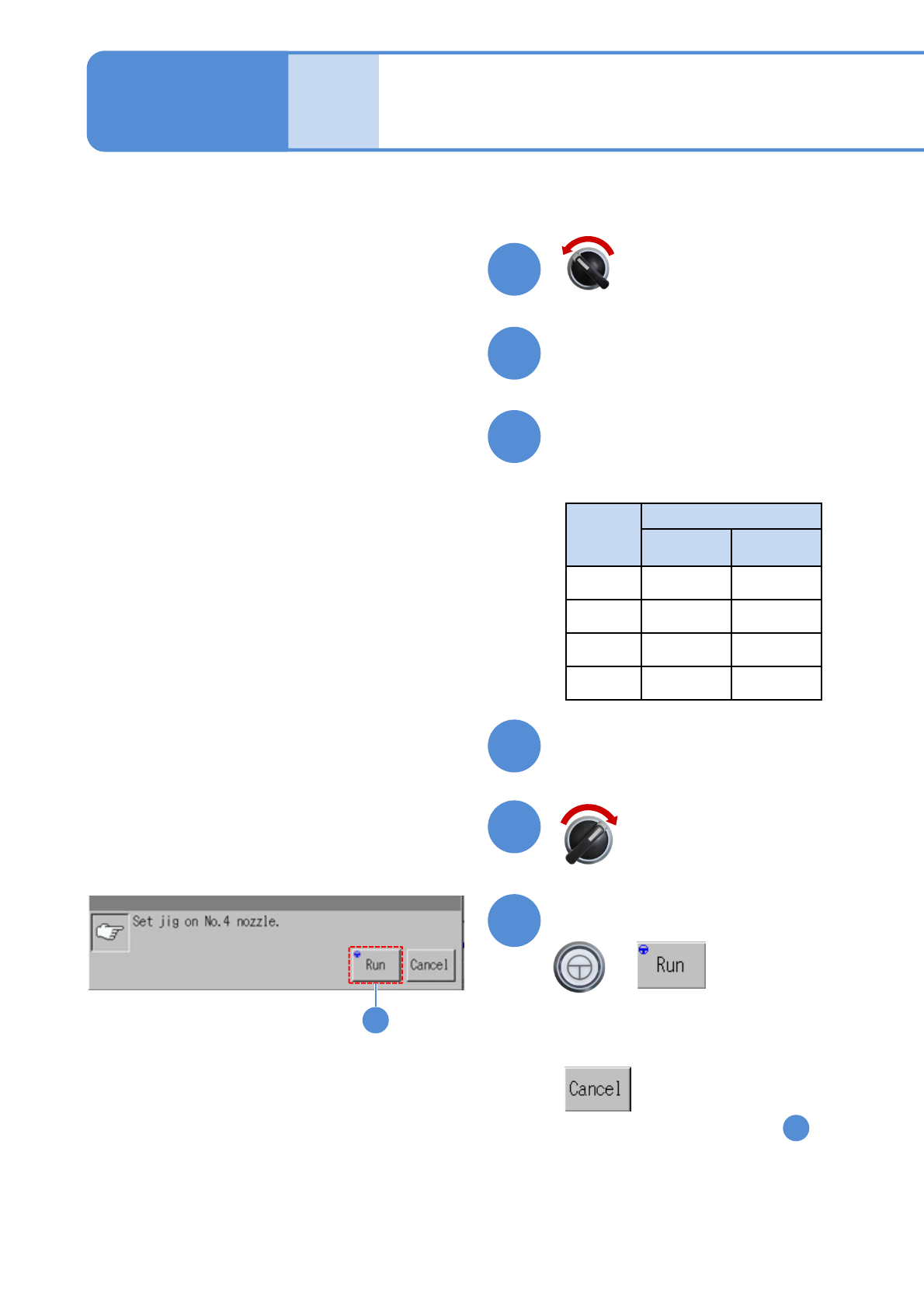

NPM-W2 EJM7DE-MB-13M-00
13-9-5
Multi-recognition
camera 3
Maintenance
13-9
Close the safety cover
Replace the multi-recognition
camera jig
●Nozzles that you confirm
Head
type
Nozzle position
Before
replace
After
replace
16 No. 12 No. 5
12 No. 9 No. 4
8 No. 6 No. 3
3 No. 1 No. 2
Servo switch ON
Open the safety cover
Servo switch OFF
+
Confirm the message
■To cancel
(The screen remains as it is in )
(The line camera is calibrated)
27
28
26
24
25
29
29
1

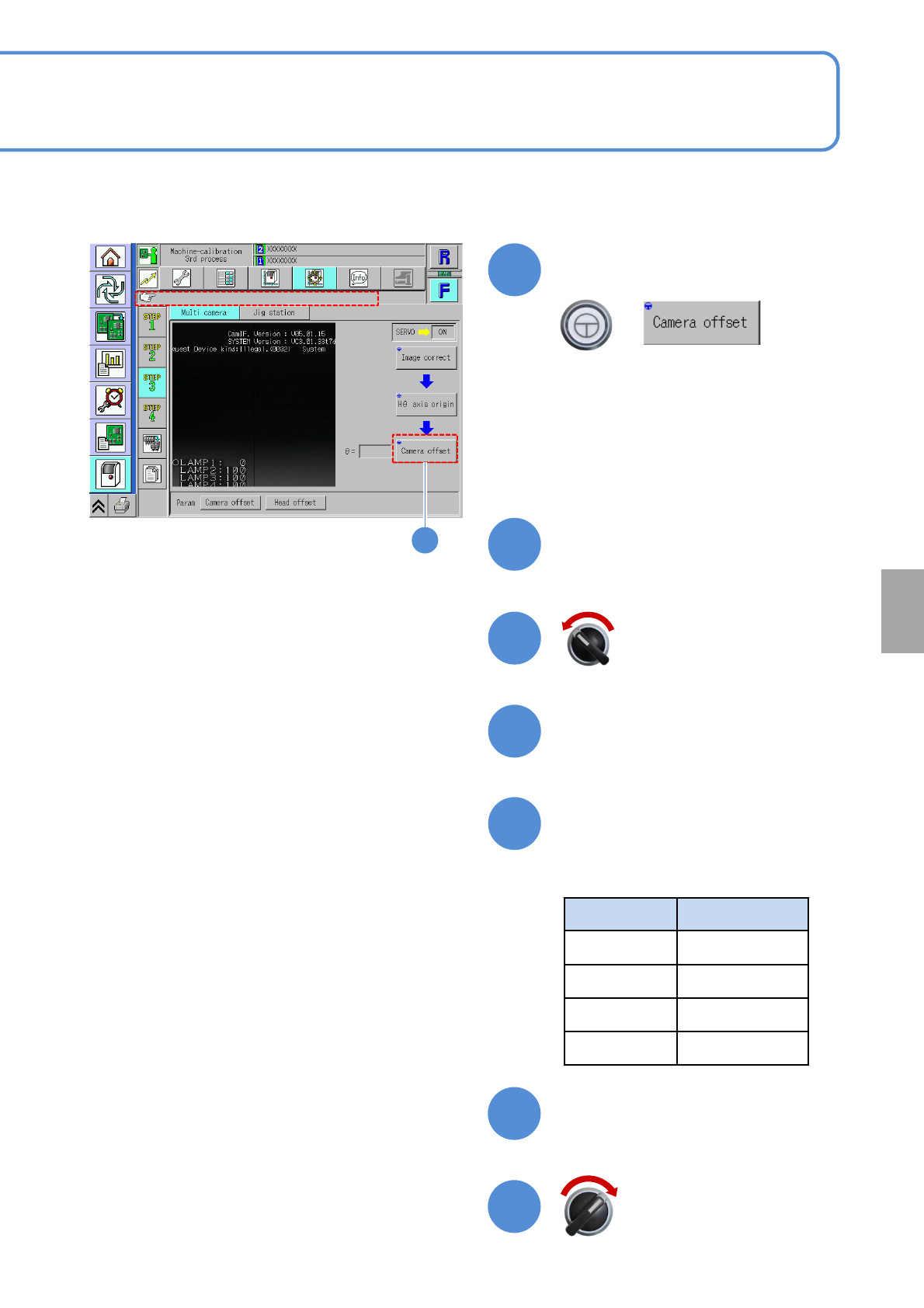

NPM-W2 EJM7DE-MB-13M-00
13-9-7
Confirm that it has been
successfully completed
+
(The camera offset is calibrated)
prepare to confirm the multi-
recognition camera jig
Open the safety cover
Confirm that the multi-
recognition camera jig is
installed
●Nozzles used
Head type Nozzle position
16 No. 5
12 No. 4
8No. 3
3No. 2
Servo switch OFF
30
31
32
33
34
30
Close the safety cover
Servo switch ON
35
36
Calibration
