NPM-W 2 EJM7DE-MB-13M-00 13-12 -4 Calibration mig ht not be performed pr operly due to material c haracteris tics. Follow the procedur e below. 1 A 2 3 ■ When adhesive other than recommended (ADE820DX, ADE850D) is used 1…
NPM-W2 EJM7DE-MB-13M-00
13-12-3
Maintenance
13-12
Dispensing head 2
11
+
11
13
14

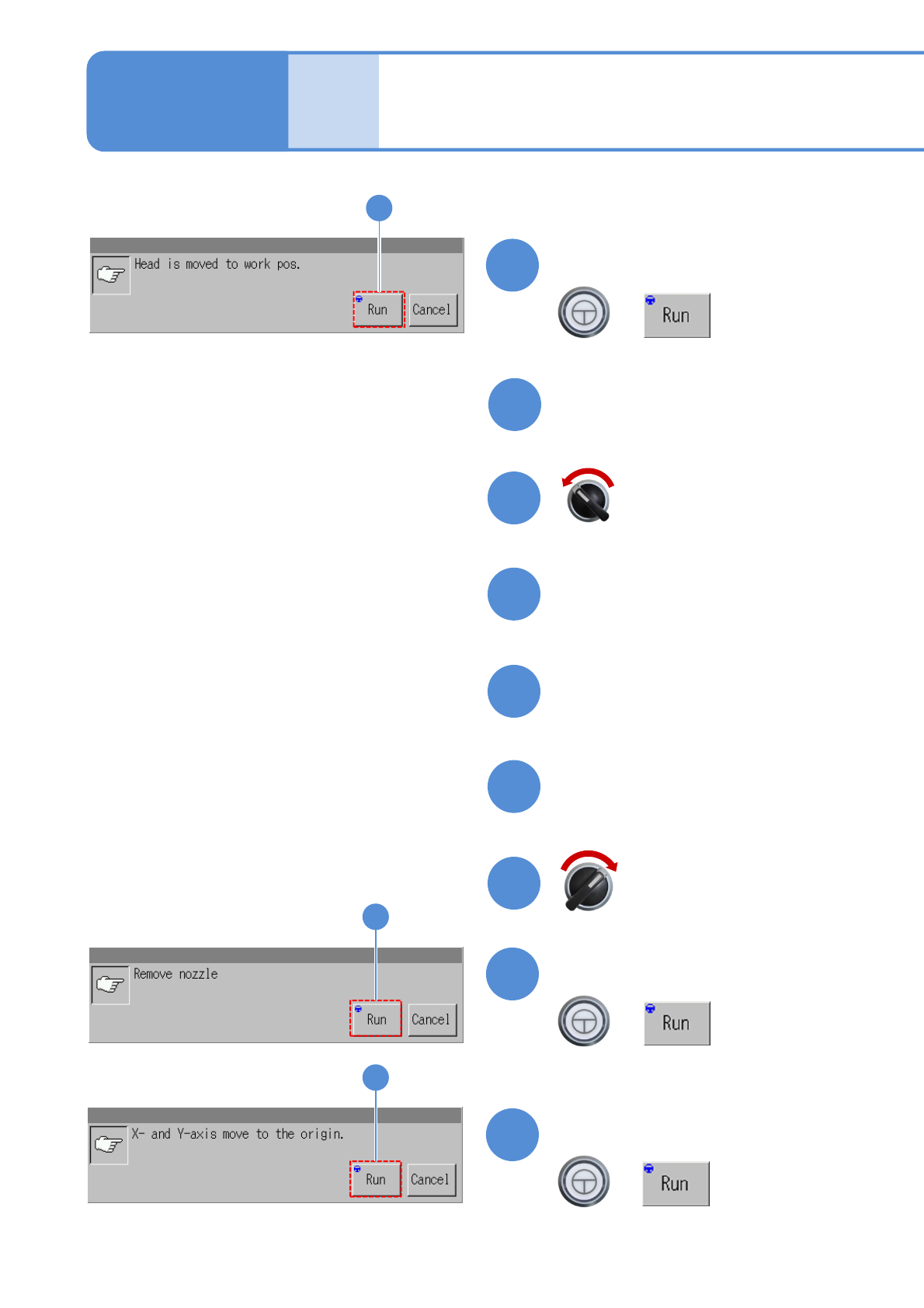

Open the safety cover
12
18
+
Confirm the message
18
15
16
17
Remove nozzles
Close the safety cover
19
+
Confirm the message
19
Confirm the message
(The head moves to the work position)
Prepare to remove nozzles
Servo switch ON
Servo switch OFF
NPM-W2 EJM7DE-MB-13M-00
13-12-4
Calibration might not be performed properly due to material characteristics. Follow the procedure below.
1
A
2
3
■When adhesive other than recommended (ADE820DX, ADE850D) is used
1
A
2 3
Updates the value for calibration by using
the set value in the ‘Action setting’.
Exits the condition check window.
Action setting
Change the settings of [Dispenser time
(s)], [Temperature (℃)] and [Pressure
(MPa)] based on the adhesive to use.
●If the dispensing diameter is longer
Time: Set to shorter
Temperature: Set to lower
Pressure: Set to lower
●If dispensing diameter is shorter
Time: Set to longer
Temperature: Set to higher
Pressure: Set to higher
Calibration
NPM-W2 EJM7DE-MB-13M-00
13-12-5
+
4
●If an action is abnormally ended, re-
adjust the set value of action setting.
4
6
7
8
9
5
Dispensing head 3
Maintenance
13-12
Prepare to remove nozzles
Open the safety cover
Close the safety cover
Install the jig nozzle and
syringe
10
Servo switch ON
Servo switch OFF
