NPM-W 2 EJM7DE-MB-13M-00 20 + 20 22 21 Confirm that it has been successfully completed 13-14 -4 (The inspection head activates and the measurement value of the calibration jig is entered) (The adjusted white balance valu…

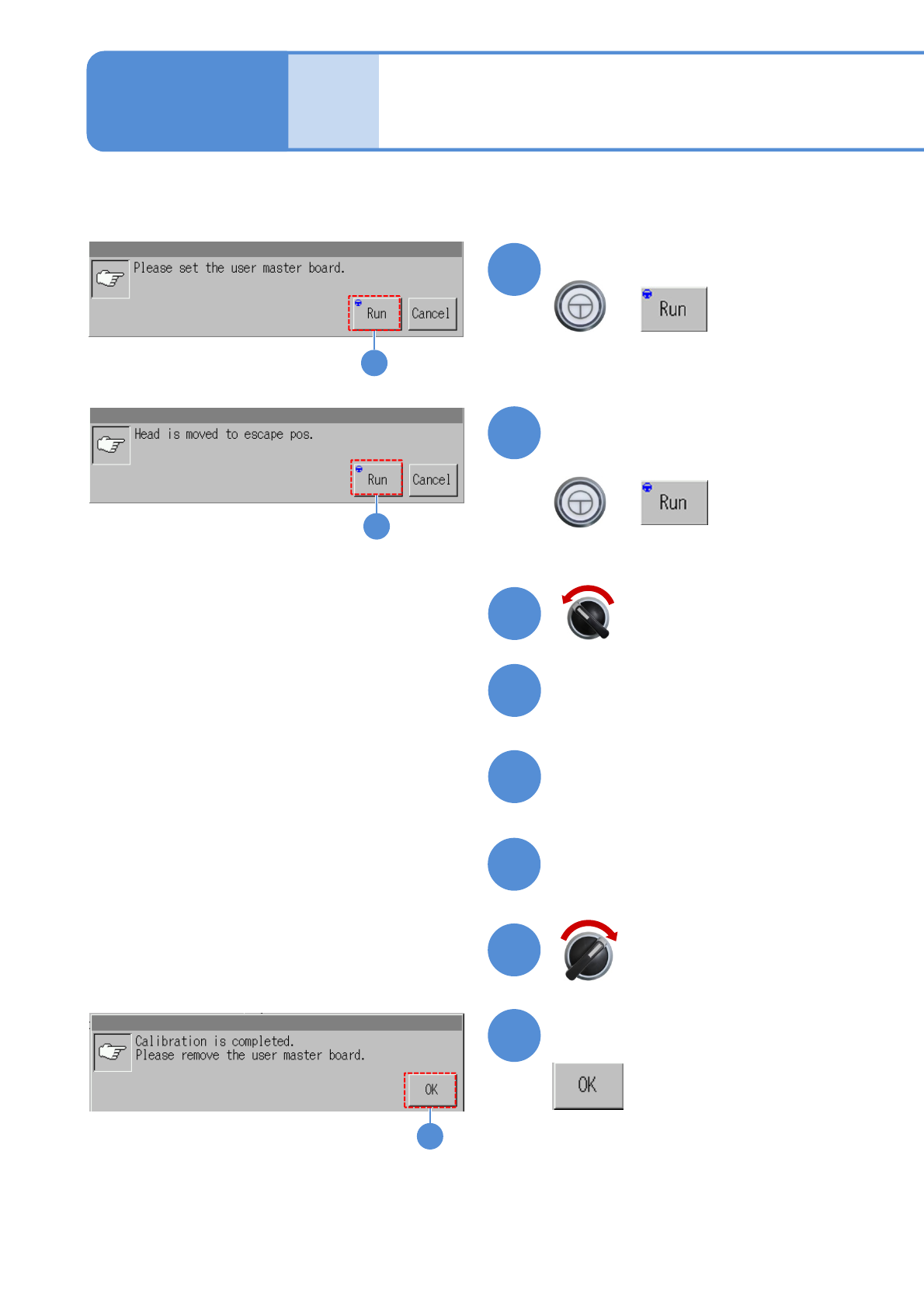

NPM-W2 EJM7DE-MB-13M-00
13-14-3
Maintenance
13-14
12
12
Confirm the message
+
13
13
+
(The head moves to the retraction
position.)
14
Open the safety cover
15
Remove the user master board
from the left front of the
calibration jig
16
18
17
Close the safety cover
19
19
Confirm the message
White balance 2
(2D inspection head)
Servo switch ON
Servo switch OFF
●The white balance adjustment
processing is performed.
Upon completion of the white
balance adjustment,
Confirm the message

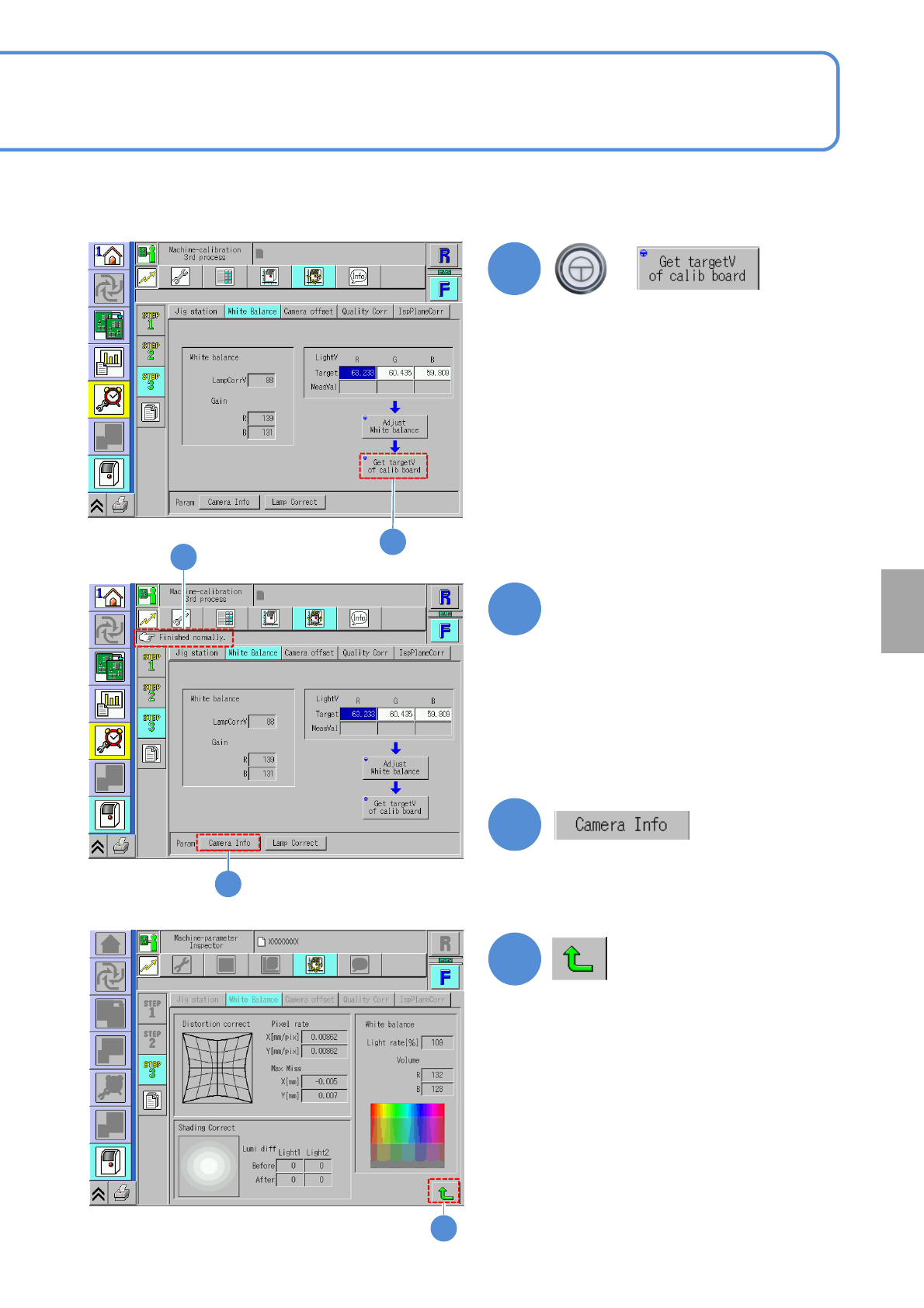

NPM-W2 EJM7DE-MB-13M-00
20
+
20
22
21
Confirm that it has been
successfully completed
13-14-4
(The inspection head activates and the
measurement value of the calibration
jig is entered)
(The adjusted white balance values are
displayed.)
23
23
Calibration
22
21
● If an error occurs, clean the user
master plate with a blower brush.
Then set the user master plate in
manner of step ⑨ in P.13-14-2.
●If you fail to correct the error with the
above method, contact us.

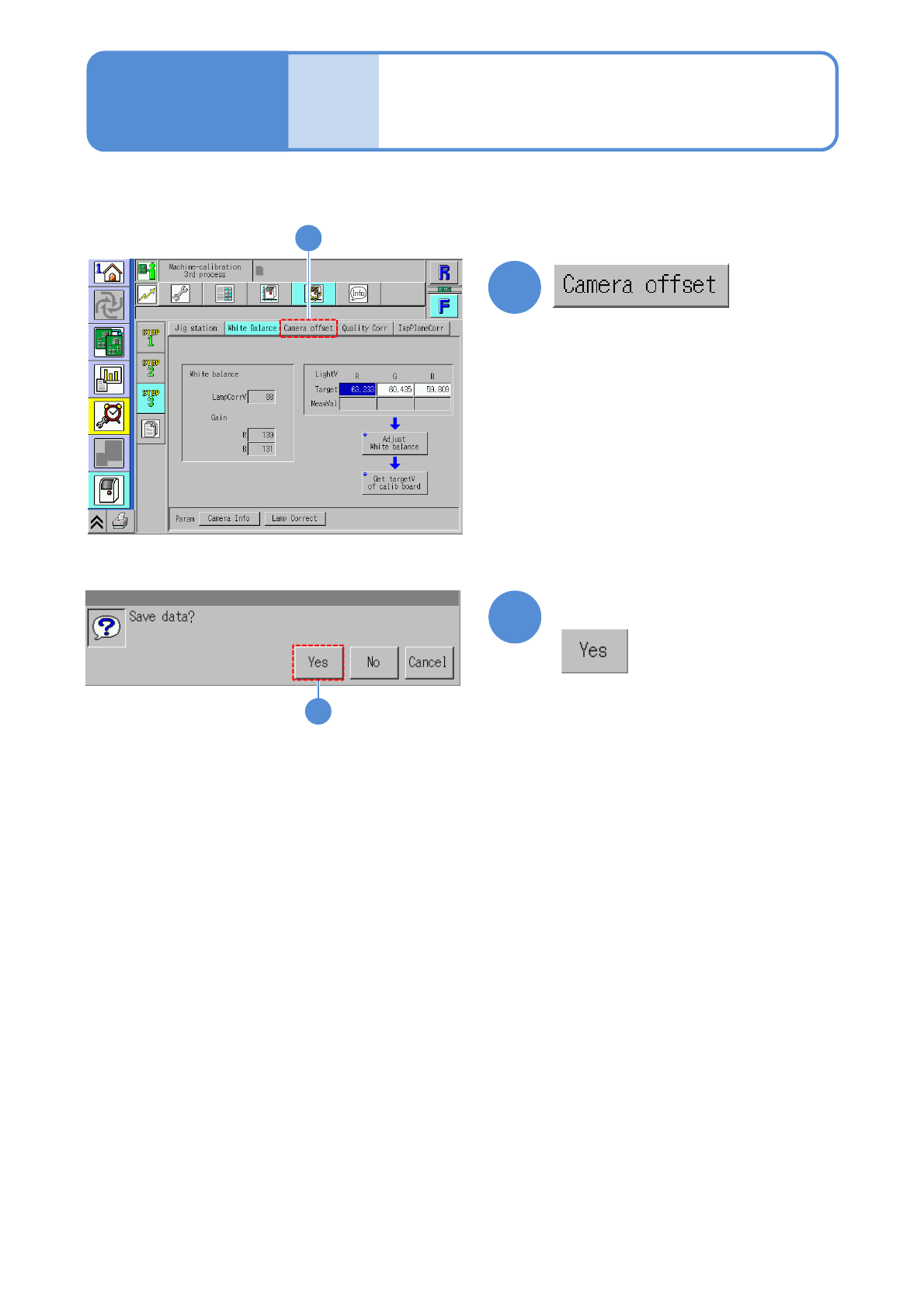

NPM-W2 EJM7DE-MB-13M-00
13-14-5
Maintenance
13-14
White balance 3
(2D inspection head)
24
24
25
25
Confirm the message
(The data obtained by calibration is
saved)
