NPM-W2 EJM7DE-MB-13M-00

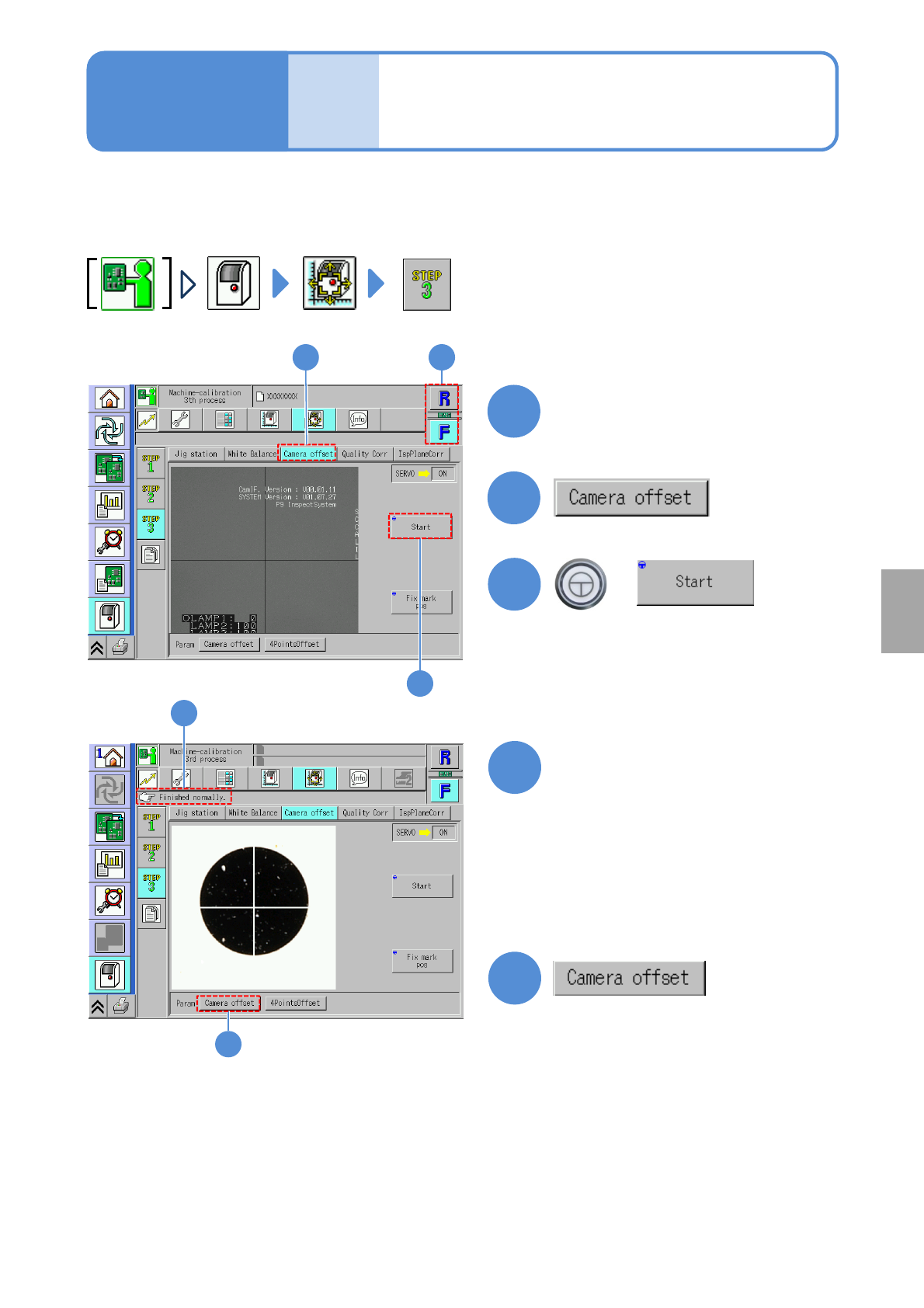

Camera offset 1
(2D inspection head)
13-15-1
Maintenance
13-15
The inspection head measures offset at four reference posts while the camera is calibrated, and the camera
XY position is calibrated by the offset value obtained from four points while the image is captured.
1
3
1
2
Choose a table
+
3
(The head operates to measure the
camera offset)
4
Confirm that it has been
successfully completed
2
5
(The screen for the measured camera
offsets (X, Y, and offsets of the
inspection and head cameras) is
displayed.)
5
4
Calibration
●If an error occurs, check the condition
of installation of the 2D inspection
head and the connecting condition of
the network cable of the inspection
BOX and then try making
measurements again.
●If you fail to correct the error with the
above method, contact us.
NPM-W2 EJM7DE-MB-13M-00
13-15-2
6
6
7
7
8
8

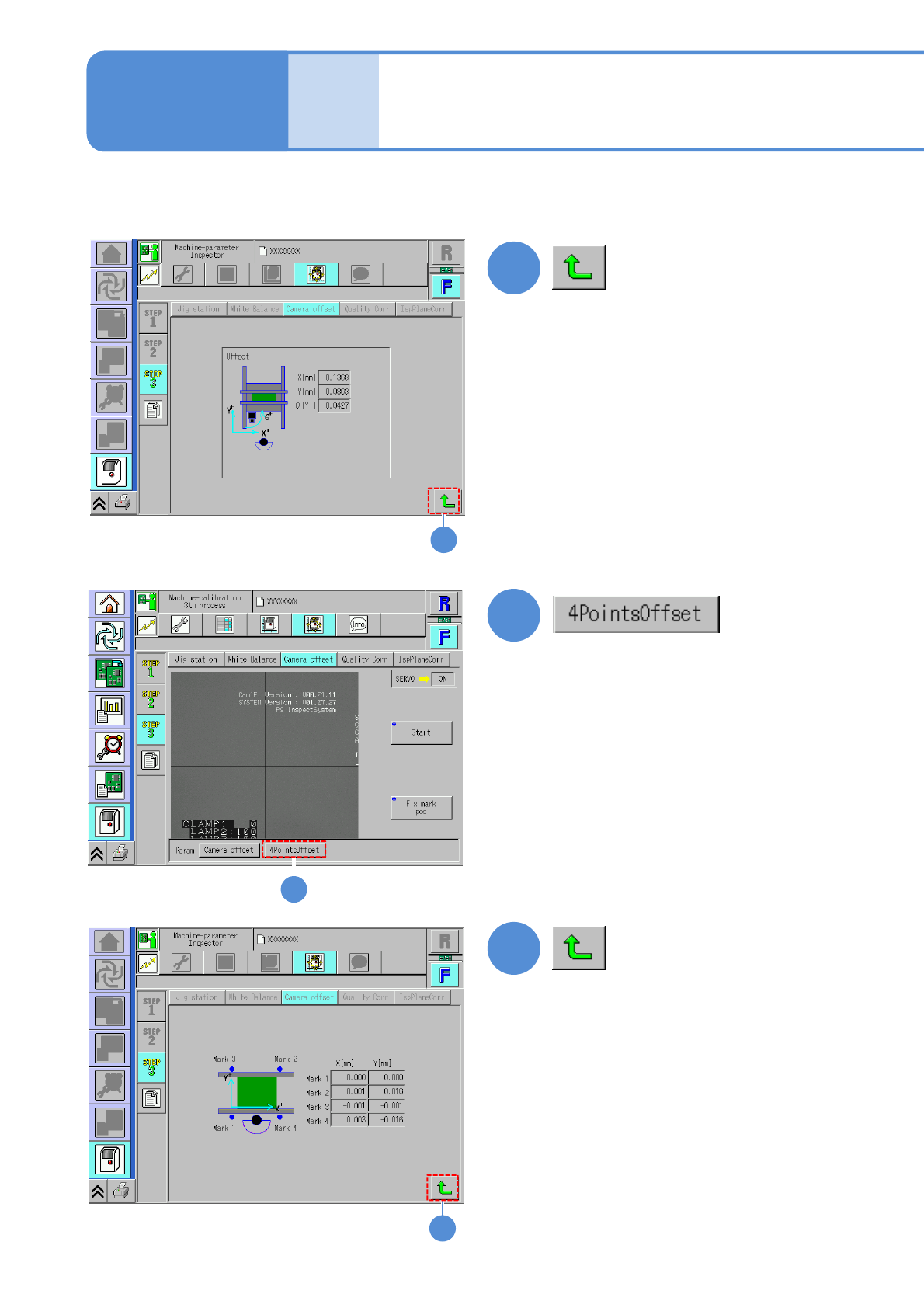

(The screen for the measured camera
offsets (offsets of the four standard
posts in reference to the mark 1) is
displayed.
Camera offset 2
(2D inspection head)
Maintenance
13-15
NPM-W2 EJM7DE-MB-13M-00
13-15-3
9
9
10

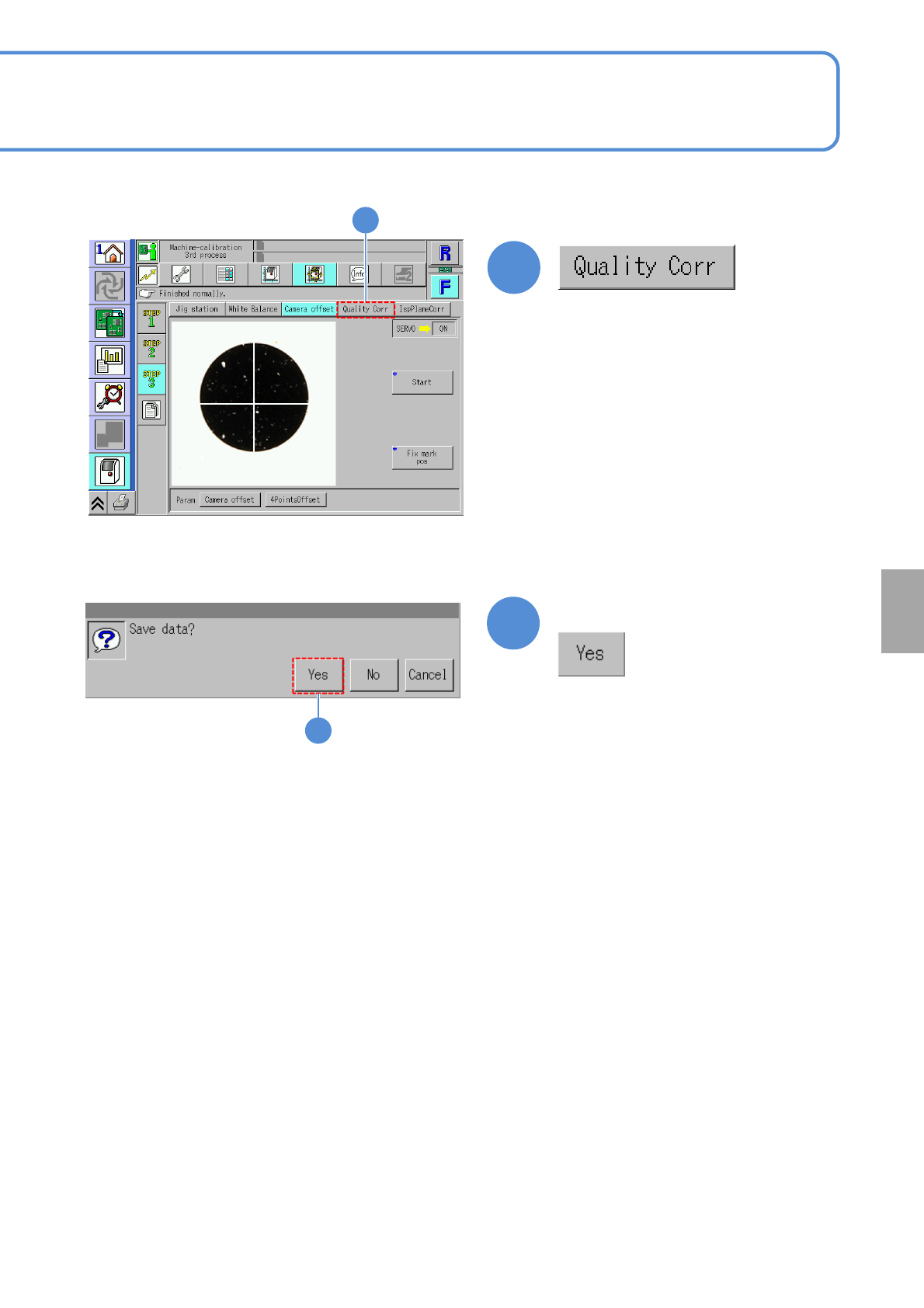

Confirm the message
10
Calibration
(The data obtained by calibration is
saved)
