NPM-W 2 EJM7DE-MB-13 M-00 Inspection plane cor r ection (2D inspection head) 13-17 -1 Maintenance 13-17 This op eration is c alibration for the inspection h ead. Because the plate correction jig will be manually insta ll…

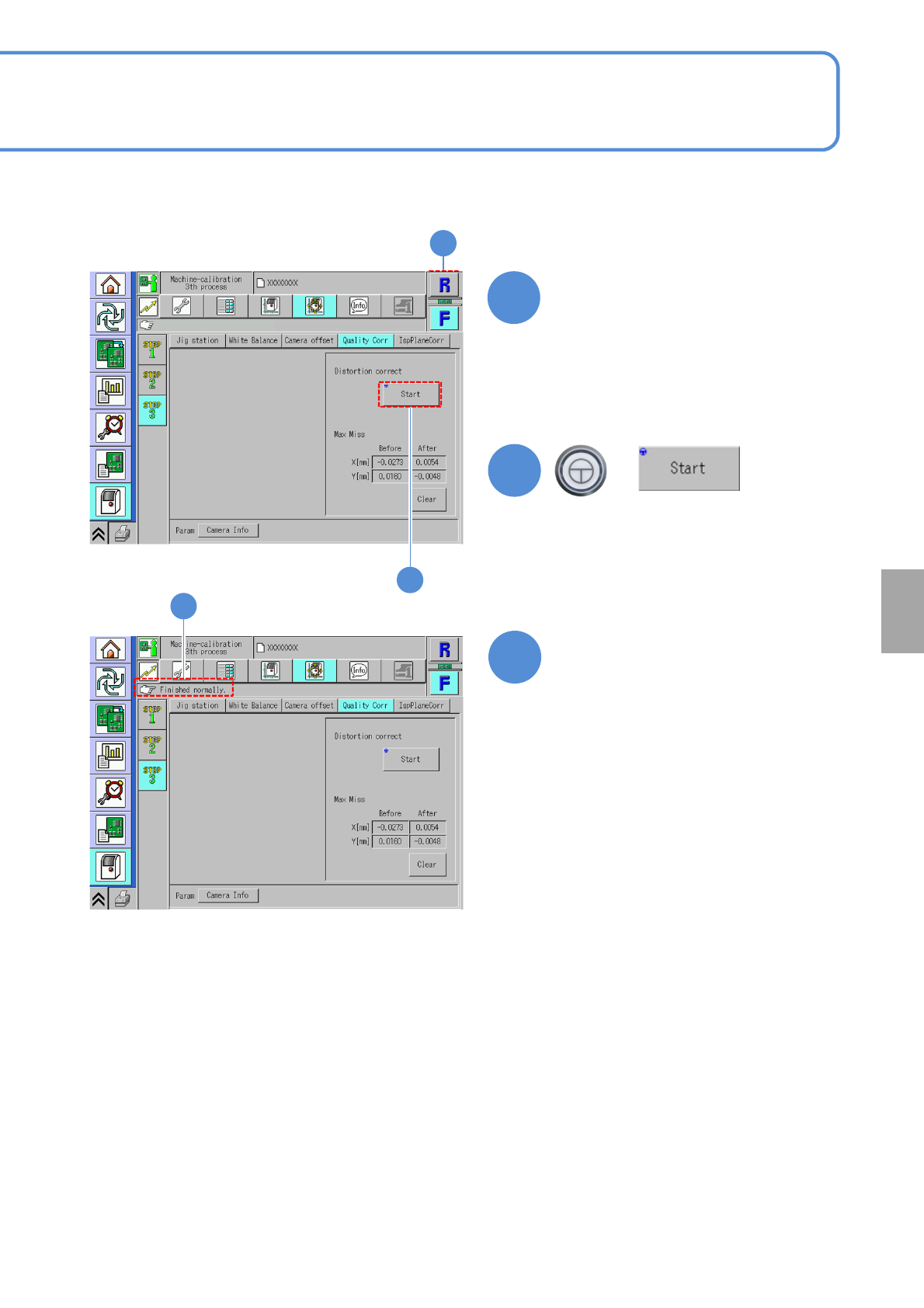

NPM-W2 EJM7DE-MB-13M-00
13-16-2
6
7
8
Choose a table
+
6
8
(The head operates to measure the
distortion)
Confirm that it has been
successfully completed
Calibration
7
●If an error occurs, check if the
distortion correction plate is dirty. If it
is dirty, clean it with a blower brush
and then try making measurement
again.
●If you fail to correct the error with the
above method, contact us.

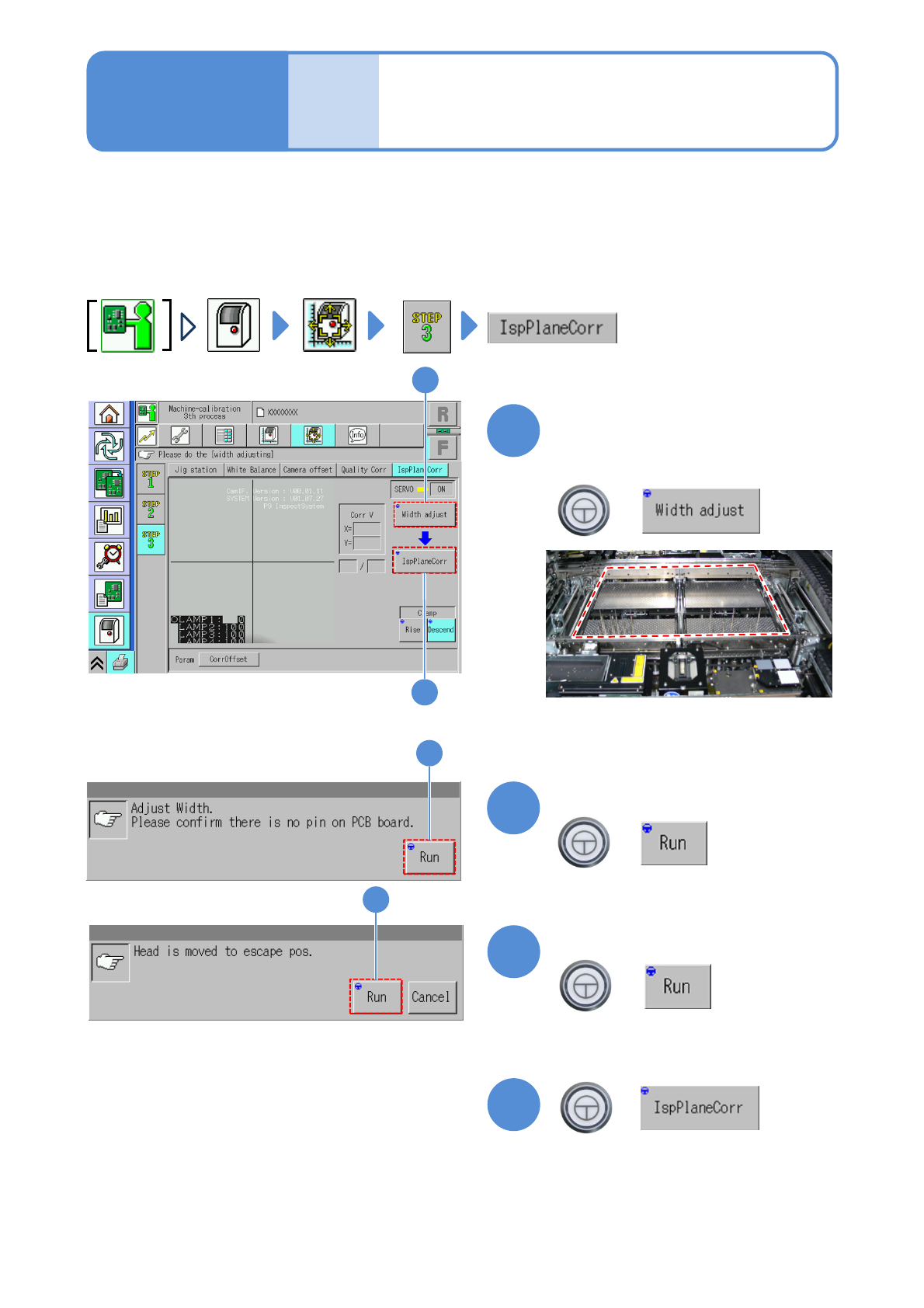

NPM-W2 EJM7DE-MB-13M-00
Inspection plane
correction
(2D inspection head)
13-17-1
Maintenance
13-17
This operation is calibration for the inspection head.
Because the plate correction jig will be manually installed, adjust the transport conveyor width on the pre/post
process machines to the plane correction jig width.
●Remove all support pins before calibration.
●This operation must perform together with plane correction XY in STEP 1.
●After this, the same procedure in
STEP 1, Plane correction XY 1
(→P.13-3) applies.
+
+
1
2
+
3
+
4
Check that there are no PCBs
and support pins present
inside the machine
●If ‘error’ message appears, remove all
the PCBs remaining inside the machine,
and try again.
(The conveyor width is adjusted to the
plane correction jig width)
Confirm the message
(The head moves to the retraction
position.)
Confirm the message
(Press the button to start measurement)
2
1
3
4
NPM-W2 EJM7DE-MB-13M-00
13-17-2
Calibration
