This operation is calibration in the transfer unit.
Information on the relative position for the head height and the transfer stage forming flax is required to
transfer flax to the component. Performing this calibration allows measuring and registering transfer
position offset to calculate the above relative position. If the transfer unit is removed/installed, the transfer
position offset may be varied. Therefore, perform this calibration and register transfer position offset.
●If the transfer unit is not installed, this operation is not available.
●This is applied for the 3-nozzle head.
1
2
3
3
Choose a table
●Choose the table for calibration.
■To cancel
(The screen remains as it is
in )
1
Confirm the message
+
(The head moves to the working
position.)
Prepare to install the nozzle
NPM-W2 EJM7DE-MB-13M-00
13-20-2
Calibration
6
5
7
9
8
Head
type
Nozzle
position
Nozzle
type
3 2nd 1003
10
10
■To cancel
(The screen remains as it is
in )
1

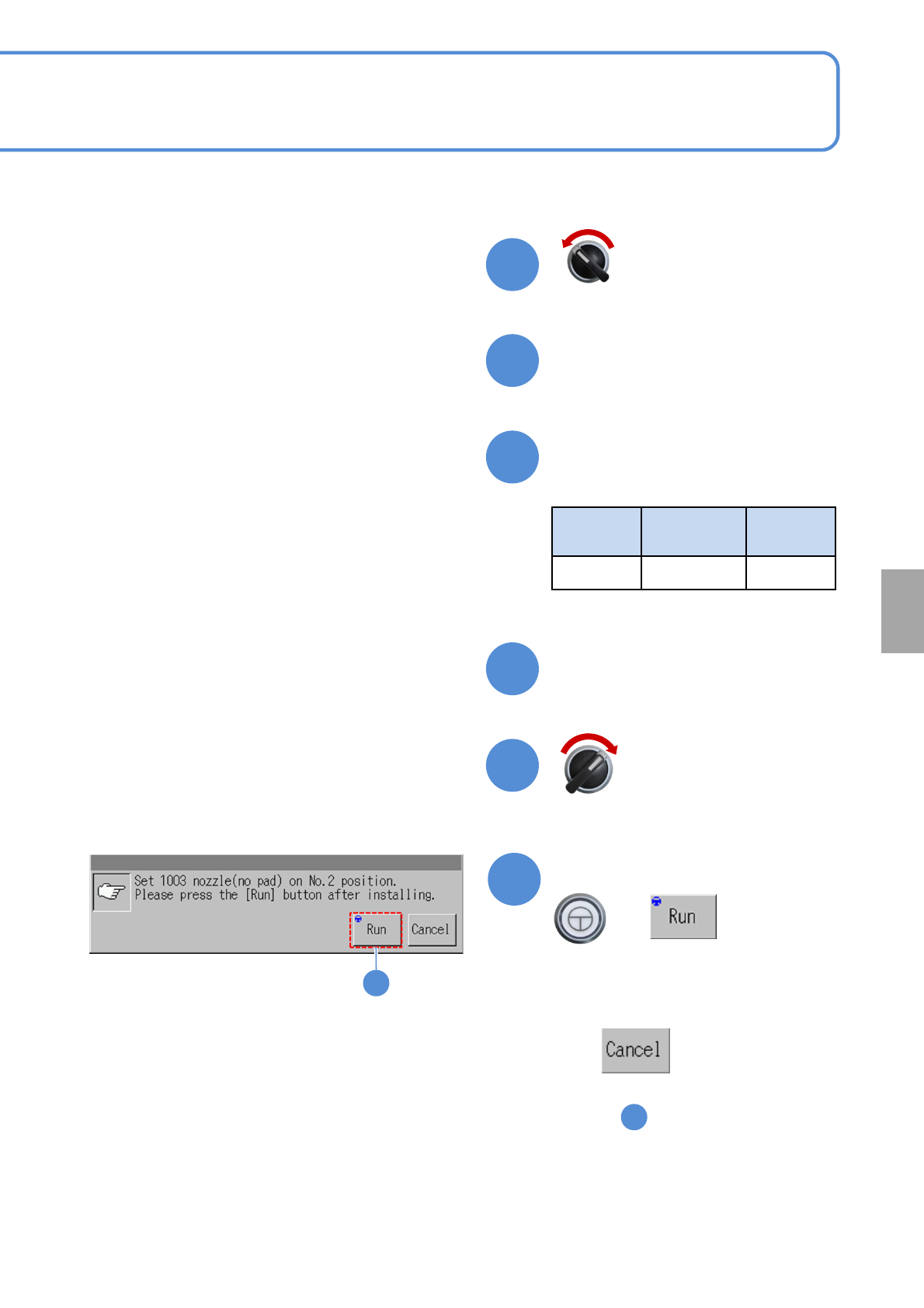

Confirm the message
+
Open the safety cover
Install nozzles
●Nozzle used
Servo switch OFF
Close the safety cover
Servo switch ON
(Calibration is carried out)
