NPM-W 2 EJM7DE-MB-13 M-00 Checking and reflection of placement (placement) ENABLING 3 2 1 (First layer) (Second laye r) 13-21-2 -4 Calibration 4 Do not press the STOP button while accuracy verification is carried out. Yo…

100%1 / 572
NPM-W2 EJM7DE-MB-13M-00
13-21-2-3
Accuracy
verifica-
tion
3

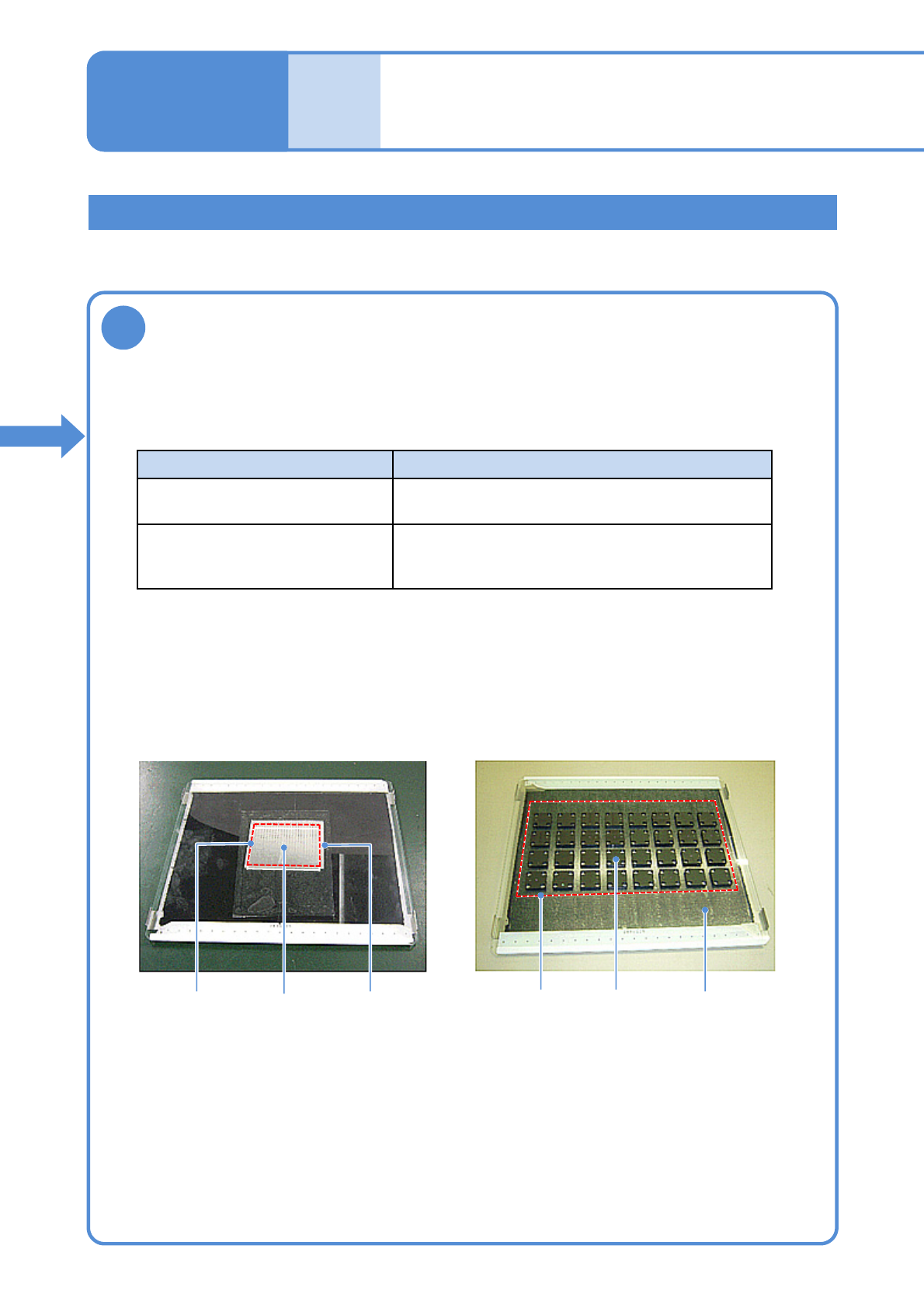

Prepare the glass PCB
Glass PCB after 1005JIG chip are placed
Glass PCB after JIG_BGA are placed
Production preparation 3 (preparation for verification material )
①Prepare a glass PCB set (N610108752AA) for placement accuracy check.
(Glass PCB, background plate and mirror are included)
Part Background
JIG_BGA Black sponge
(Set the background plate)
1005JIG chip: ERJJ02AAAAAV,
0402R, etc.
Insert a mirror between the glass and the
background plate.
(See the manual included in the glass PCB set)
1005JIG
chip
●Affix the tape to the area where components are placed (Inside the dotted line in the picture
below is a rough area)
●Keep away from recognition marks on the both edges of the glass.
●Affix the tape with no air bubbles.
②Prepare the background based on a component to verify its accuracy.
③Affix the double-faced tape onto the glass PCB.
MirrorPlacement
area
JIG_BGAPlacement
area
Background plate
(black sponge)
Detailed process 2
(placement head)
Maintenance
13-21-2
NPM-W2 EJM7DE-MB-13M-00

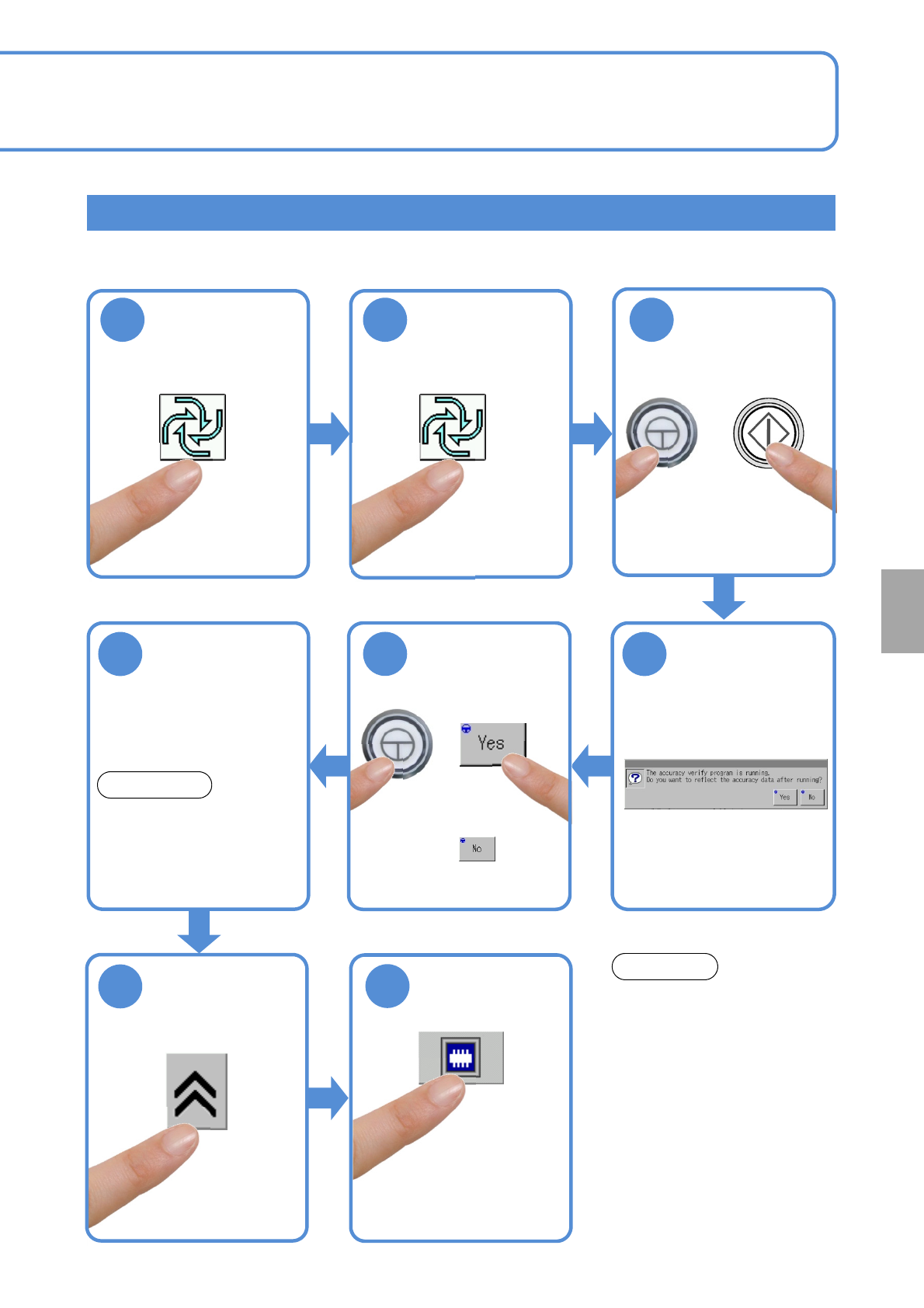

Checking and reflection of placement (placement)
ENABLING
321
(First layer)
(Second layer)
13-21-2-4
Calibration
4
Do not press the STOP button
while accuracy verification is
carried out.
You cannot restart operation in
the middle of accuracy
verification.
NOTICE
Confirm the
message
8
7
6
Load glass PCB
●Production starts as the
glass PCB is loaded
upon completion of
production preparation.
If the machine is coupled to
another machine, adjust the PCB
width of the adjacent machine to
216 mm, and load the PCB into
the upstream machine.
NOTICE
ENABLING
5
●The head camera screen
appears and you can view
the part being measured.
●To use accuracy verification
MCDATA:
(→ P.13-21-1
-1 ‘■Reflection
of verification data’)
NPM-W2 EJM7DE-MB-13M-00
1
Upon completion of placement,
Checking and reflection of placement (checking placement results)
Accuracy
verifica-
tion
2
(Automatic run ends)
+
2
13-21-2-5
3
4
5
3
4
5
Switch it with
■When you do not end
Maintenance
13-21-2
Detailed process 3
(placement head)
(→ P.13-21-1-2 ‘■Target value for
accuracy verification’)
