NPM-W 2 EJM7DE-MB-14M-00 2 332 1 080 855 4 267 14-3 -2 2 Check the working area Single tray feeder (Option) Feeder cart 855 2 000 Working area Front side Front side Rear side Working area 1 080 1 830 To (P.14- 3-4) 3 1 I…
NPM-W2 EJM7DE-MB-14M-00

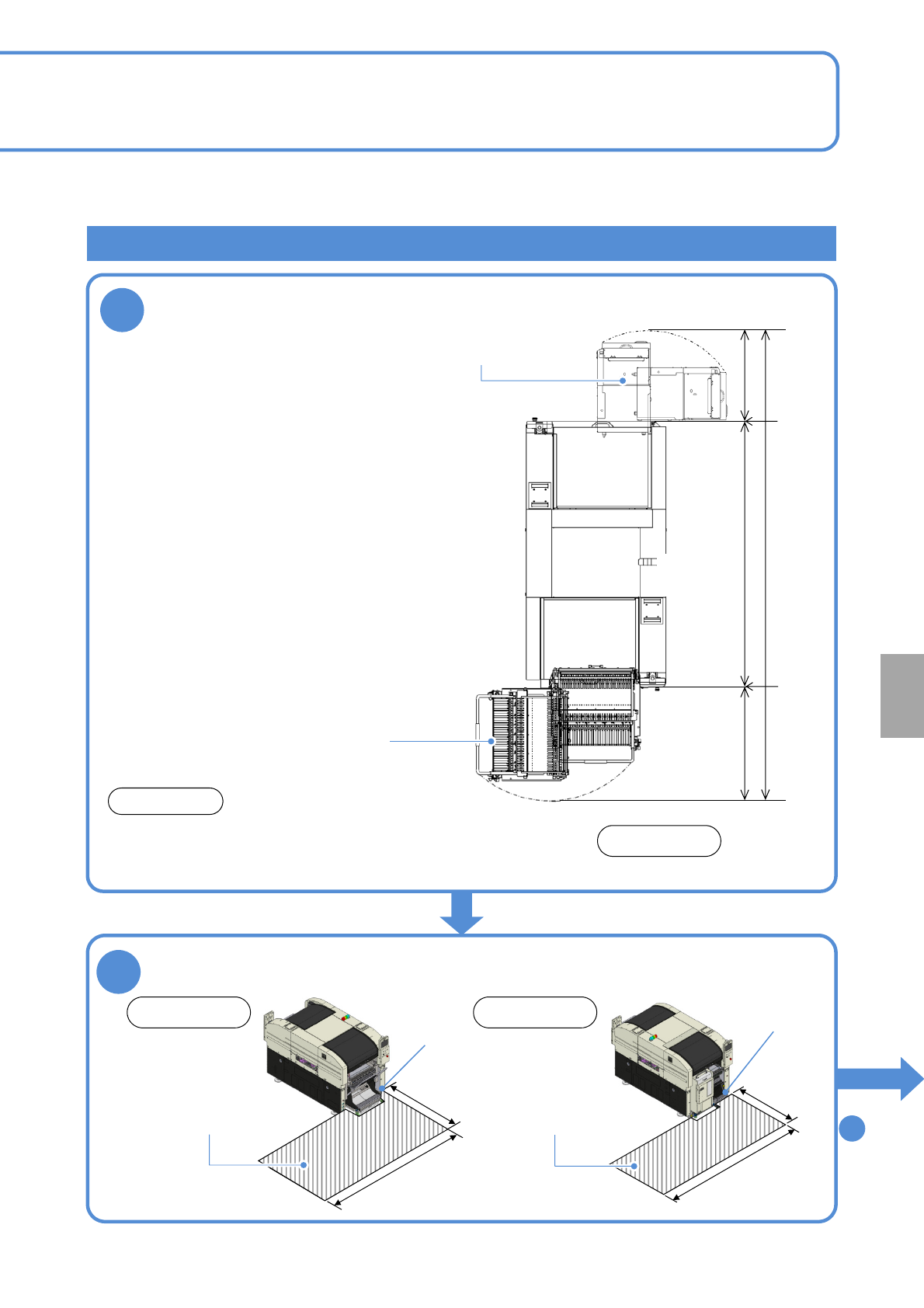

1 080
2 332
1 080
4 492
14-3-1
Temporarily locate the machine along the baseline
drawn on the floor and adjust the installation position.
●Adjust the height and facing of the machine to
guarantee a smooth PCB transfer between the
machine and adjacent equipment in a line.
●Keep a 1 to 5 mm space between the machine
and adjacent equipment.
●If running a vent under the machine, keep a 40
mm or more space between the machine and the
vent.
(The figure on the right shows the minimum space
and is measured in millimeters (mm))
2
Check the working area
Working area
1 080
1 830
Tool used: Convex, Allen wrench (3 mm), metal ruler, Level gauge, 46 mm spanners (2 pcs)
Feeder
cart
Feeder cart
Installation 1
Maintenance
14-3
1 080
1 830
Working area
Front side
Front side: Feeder cart/ Rear side: Feeder cart
Front side Rear side
To
(P.14-3-4)
3
●Regarding installation, follow the instructions of
a specialist.
●Regarding relocation, contact us, please.
NOTICE
1
Install
Coverendface
Coverendface
Cover end
face
Cover end
face

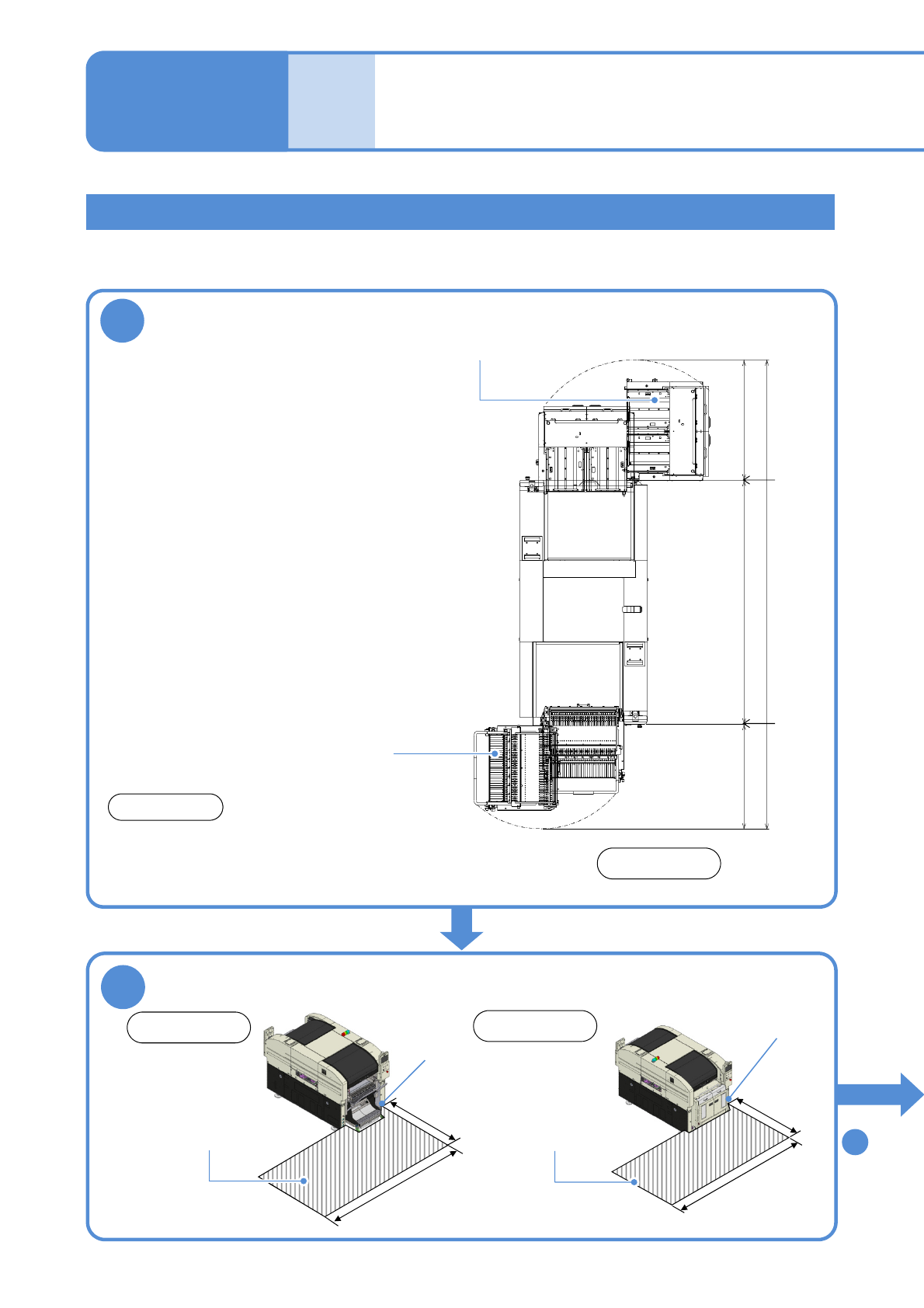

NPM-W2 EJM7DE-MB-14M-00
2 3321 080 855
4 267
14-3-2
2
Check the working area
Single tray feeder
(Option)
Feeder cart
855
2 000
Working area
Front side
Front side Rear side
Working area
1 080
1 830
To
(P.14-3-4)
3
1
Install
Temporarily locate the machine along the
baseline drawn on the floor and adjust the
installation position.
●Adjust the height and facing of the machine
to guarantee a smooth PCB transfer
between the machine and adjacent
equipment.
●Keep a 1 to 5 mm space between the
machine and adjacent equipment.
●If running a vent under the machine, keep a
40 mm or more space between the machine
and the vent.
(The figure on the right shows the minimum
space and is measured in millimeters (mm))
Front side: Feeder cart/ Rear side: Single tray feeder + Fixed supply unit
Coverendface
Coverendface
Installation
●Regarding installation, follow the instructions of
a specialist.
●Regarding relocation, contact us, please.
NOTICE
Cover end
face
Cover end
face

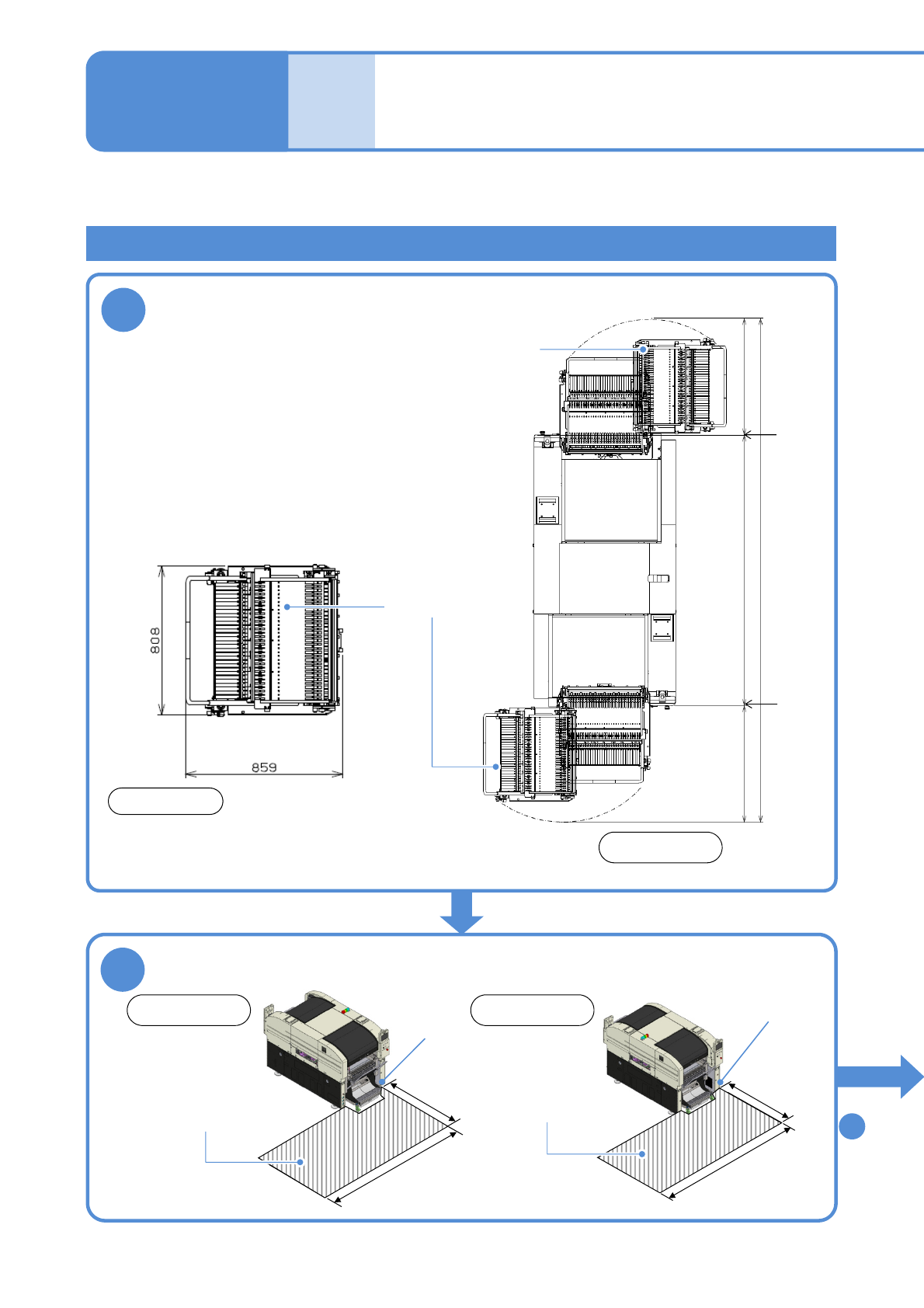

NPM-W2 EJM7DE-MB-14M-00
14-3-3
1
Install
Temporarily locate the machine along the
baseline drawn on the floor and adjust the
installation position.
●Adjust the height and facing of the machine
to guarantee a smooth PCB transfer
between the machine and adjacent
equipment.
●Keep a 1 to 5 mm space between the
machine and adjacent equipment.
●If running a vent under the machine, keep a
40 mm or more space between the machine
and the vent.
(The figure on the right shows the minimum
space and is measured in millimeters (mm))
Twin tray feeder
(Option)
Feeder cart
2
Check the working area
1 190
2 000
Working area
Front side
To
(P.14-3-4)
3
Front side: Feeder cart / Rear side: Twin tray feeder
Front side
Rear side
Working area
1 080
1 830
Maintenance
14-3
Installation 2
NOTICE
Coverendface
Coverendface
●Regarding installation, follow the instructions of
a specialist.
●Regarding relocation, contact us, please.
Cover end
face
Cover end
face
1 080 1 190
4 602
2 332
