NPM-W2 EJM7DE-MB-15M-00 A B C C B A D Plastic par ts listing 1 Maintenance 16-1 16-1 -1 No. Comp onent name Weight ( g ) Q’ty Material c omponent contents and amount (filler, reinforcement) Insert material T ouc hscreen …
16 Reference
NPM-W2 EJM7DE-MB-15M-00
ABCC
B
A
D
Plastic parts listing 1
Maintenance
16-1
16-1-1
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material
Touchscreen cover
(Front)
144 2 ABS-FR (62)
Touchscreen cover
(Rear)
254 2 ABS-FR (62)
Front and rear safety covers 2951 2
PC
(polycarbonate)
Twin tray feeder guide 406 1
POM
(polyacetal)
Front side
Rear side
A
B
C
D
Main unit
Rear side
(Twin tray feeder specifications)
NPM-W2 EJM7DE-MB-15M-00

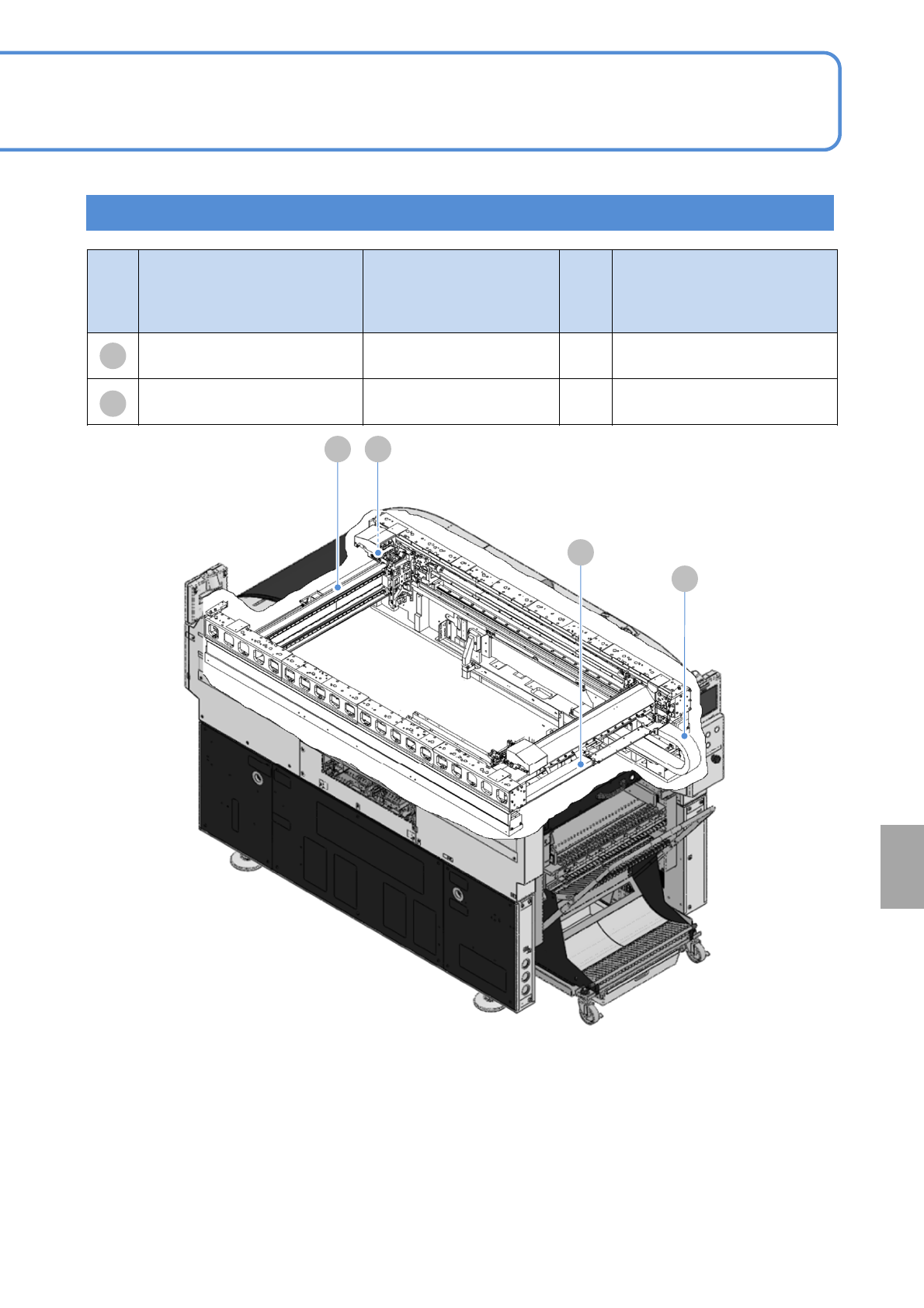

16-1-2
XY unit
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material
Cable bearer
(X-axis)
415 2
PA
(polyamide)
Cable bearer
(Y-axis)
541 2
PA
(polyamide)
A
B
Reference
B
B
A
A
